• Model NO.：1390
• Laser Power：130W-150W
• Laser Type：Hermetic CO2 Glass Tube
• Power Supply：AC220±10% 50Hz , AC110±10% 60Hz
• Working Area：1300mm*900mm
• Worktable：Honeycomb Worktable, up&Down Worktable, Aluminium

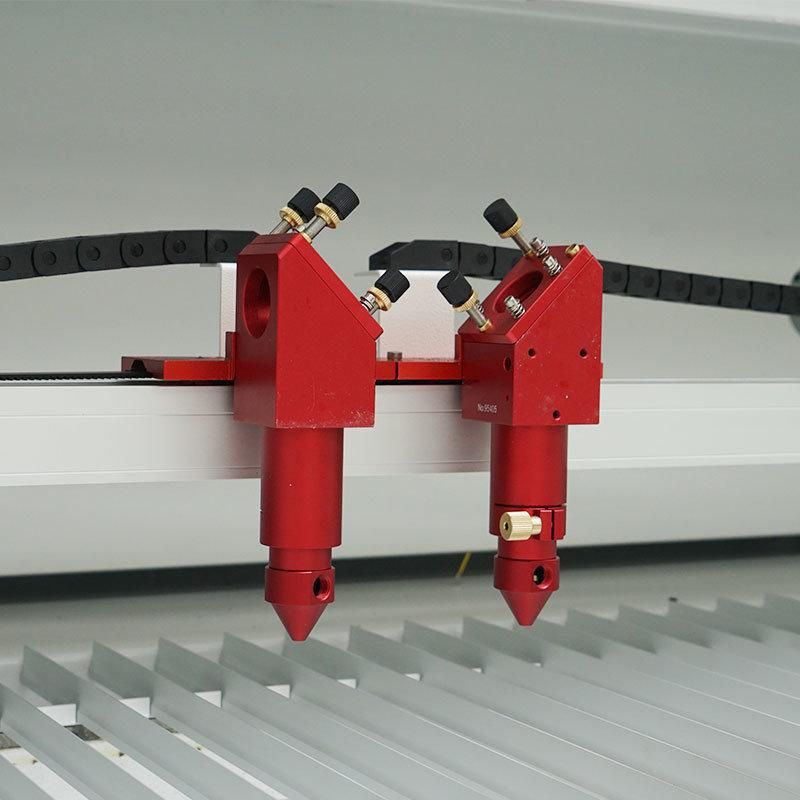

• Options：Irregular Rotary,Double Head, Chiller(Cw3000)
• Control Configuration：DSP
• Packing：Wooden Box
• Working Table：up and Down Working Table
• Motor&Drive：Stepper
• Position：System
• Cutting Thickness：0-25mm
• Cutting Speed：1-1000mm,Min
• Transport Package：Wooden Box
• Specification：1300mm*900mm
• Trademark：Dxtech
• Origin：Shandong
• HS Code：8461500090
• Production Capacity：300 Per Month

Basic Info.

Model NO. 1390 Laser Power 130W-150W Laser Type Hermetic CO2 Glass Tube Power Supply AC220±10% 50Hz / AC110±10% 60Hz Working Area 1300mm*900mm Worktable Honeycomb Worktable/ up&Down Worktable/ Aluminium Options Irregular Rotary/Double Head/ Chiller(Cw3000) Control Configuration DSP Packing Wooden Box Working Table up and Down Working Table Motor&Drive Stepper Position System Cutting Thickness 0-25mm Cutting Speed 1-1000mm/Min Transport Package Wooden Box Specification 1300mm*900mm Trademark Dxtech Origin Shandong HS Code 8461500090 Production Capacity 300 Per Month

Product Description

Description:

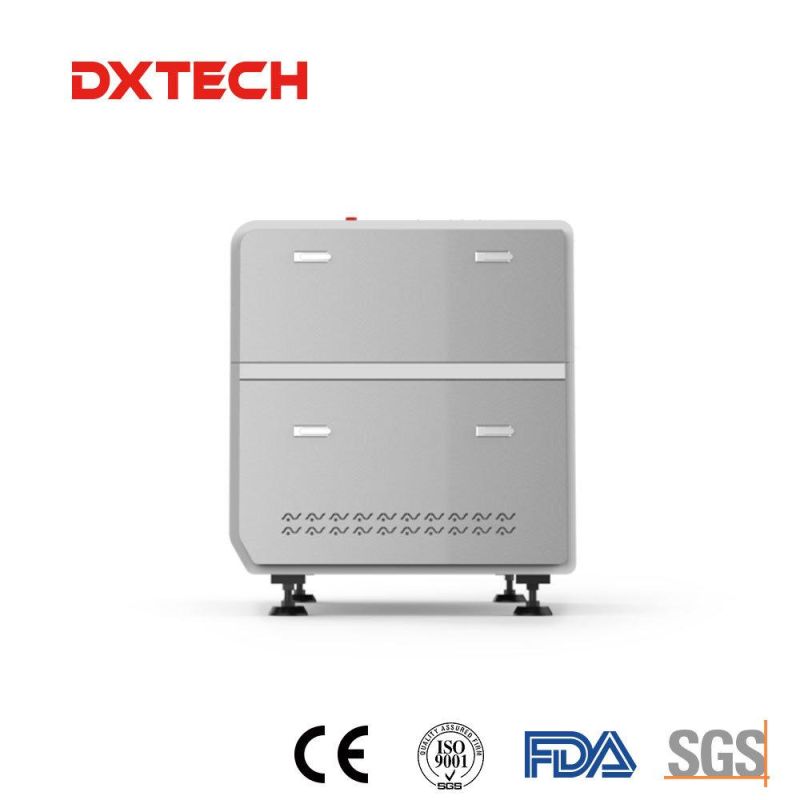

This is a CO2 engraving machine with an open processing platform, users can directly monitor the processing process and make timely adjustments. With the features of simple and easy operation, it is suitable for users with various processing requirements.

Advantages

1. The transmission components are introduced from German. Hence, it can ensure the good running cutting and stability of the equipment.
2. The whole machine has a lubrication system, which can reduce the abrasion of moving parts. Such a system can ensure the movement speed of the whole machine.
3. Y-axis dual-drive full rack and pinion transmission structure, strong load capacity, and fast running speed.
4. Simple and classic electrical design, low failure rate, and easy maintenance.

Main parts
(01)HIWIN linear guide from Taiwan
(02) Water-break Protection
(03) Slope can adjust
(04)Red Light Positioning
(05)Laser Engraving software Package (English Version)
(06) User Manual (English Version)
(07) Water Pump and Water tank
(08) Air exhaust fan
(09) Air Pump


Description	Parameter
Working Area	1300*900mm

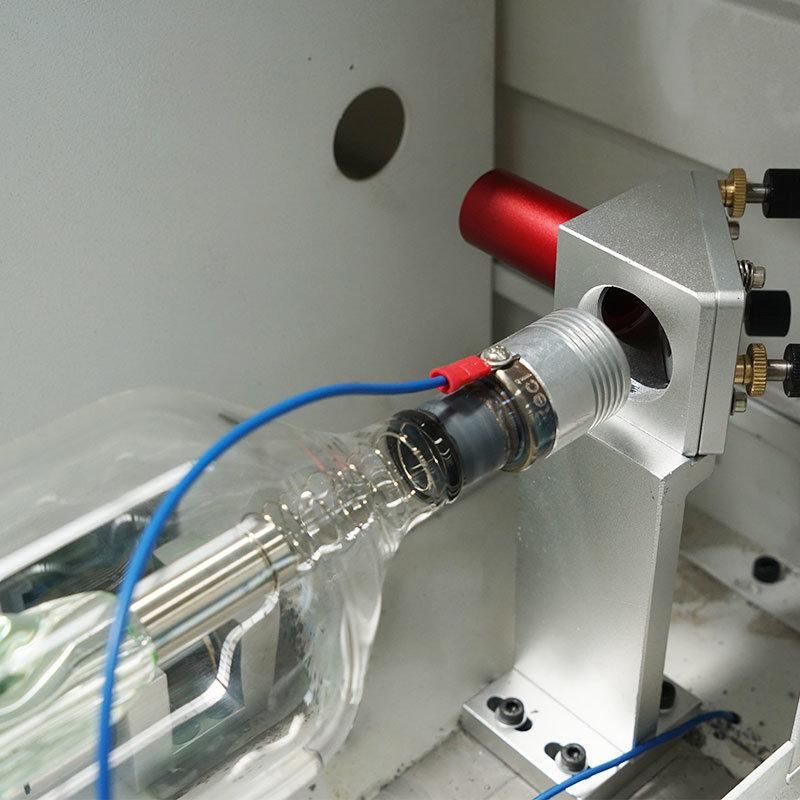

Laser-type	Sealed CO2 laser tube
laser Power	130w-150w
Working Voltage	AC220V,50Hz,3PH
Working table	Fix table (Up & down working table for your option)
Cooling mode	Water-cooling and protection system
Driver and Motors	Stepper driver
