• Model NO.：LS20F
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Fiber Laser：Raycus
• Comtrol System：Jcz
• Operation System：Microsoft Windows 7. 8. 10 System
• Power Supply：220V,60Hz,8A(110V,60Hz,15A Can Choose)
• Control Software：Ezcad
• Features：Color Marking on Stainless
• Transport Package：Plywood Boxes
• Specification：940mm*860mm*1020mm
• Trademark：Lansen
• Origin：China
• HS Code：8456110090

Basic Info.

Model NO. LS20F Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Fiber Laser Raycus Comtrol System Jcz Operation System Microsoft Windows 7. 8. 10 System Power Supply 220V/60Hz/8A(110V/60Hz/15A Can Choose) Control Software Ezcad Features Color Marking on Stainless Transport Package Plywood Boxes Specification 940mm*860mm*1020mm Trademark Lansen Origin China HS Code 8456110090

Product Description

Mini Logo SS marking CNC Fiber marker
Parameters:

Model	Desktop Fiber Laser Marking machine
Laser type	Fiber Laser
Laser power	20w/30w/50w/100w
Beam quality	M2<1.5
Laser wavelength	1064±1nm
Power adjustment   range	10~100%
Output fiber length	1~2m
Frequency of pulse	20~250KHz
Power supply	220V/60HZ/8A(110V/60HZ/15A   can choose)
Cooling system	Air Cooling
Working area	Standard:110"110mm,         Optional:200*200mm,300*300mm.
Marking depth	<1mm
Marking speed	<7000mm/s
Min. line width	0.05mm
Repeatability   accuracy	0.003mm
Power Machine	300w-800w(Depend on   fiber laser power)
Operation temperature	0~40&#176;C
Operation system	Microsoft Windows 7.   8. 10 system
Operating environment	Clean and free of   dust
Machine size	840mm*640mm*1410mm
packing   size	940mm*860mm*1020mm
Net weight	115kg
Gross   weight	136kg
Warranty	Two years

 Features:

1. Fiber laser, Basic model, high speed galvo scanner; IPG laser and Chinese Brand laser for option.
2. Maintenance Free, save equipment and worker cost;
3. Imported Galvonometer, Higher precision,faster speed;
4. Higher photoelectric conversion efficiency,  Low power consumption;
5. Red light preview, more accurate and reduce positioning time;
6. Laptop with Powerful marking software;
7. User friendly software interface, easy operation;
8. Set and deal different layers graphic separately;
9. Support PLT,PCX,AL,DXF, BMP,JPG formats file;
10. Compatible AutoCAD,CorelDraw,Photoshop etc software, Automatic serialization,date coding letter, symbol, pattern, figure, image, bar code, 2D code  auto  arrangement and amendment.

Machine details:

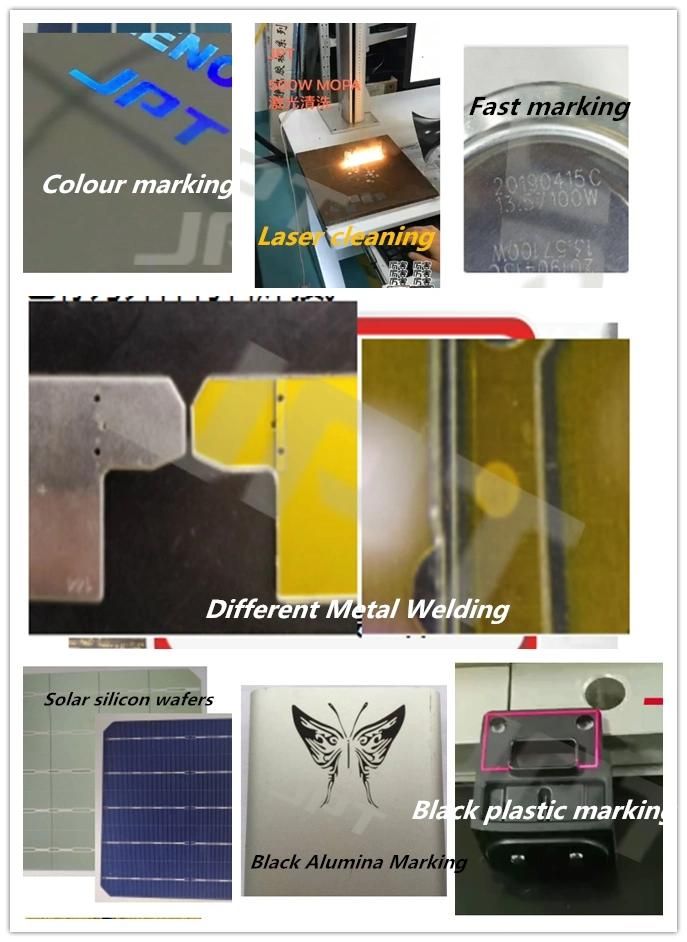

Applications:


Aplicable Industries:
1. Electrical Engineering and Electrical part and component
2. Mobile (Cover, battery, keyboard, IPhone Case)
3. Jewelry(Ring, pedeant, bracelet),eyeglass,clocks and craft
4. Building materials,PVC pipe
5. Car motor car spare part, Instrument and meters and cutting tool
6. plastic case,aviation and aerospace,
7. military product,hardware fitting and accessory,sanitary appliance
8. food and beverage ,Medicine package and medical instrument,solar Pv industry

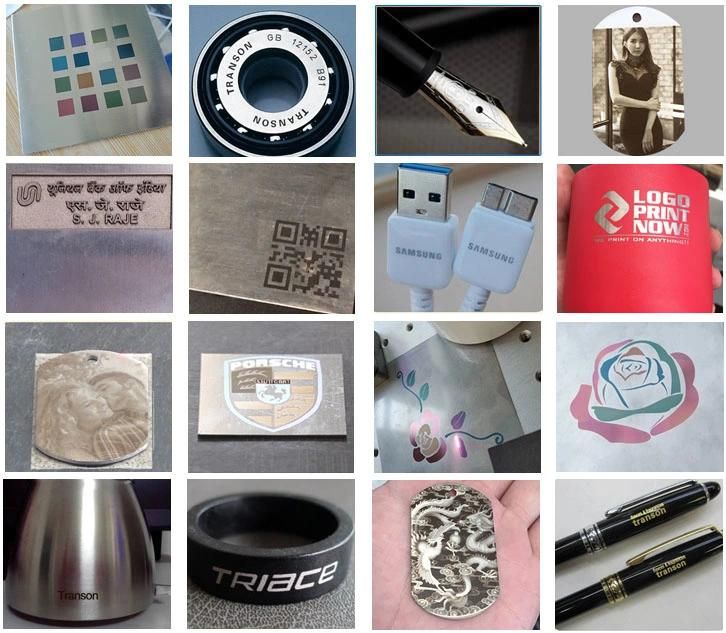

Applicable Materials:
1.Many type of metals: Gold,Silver,Stainless Steel,Copper,Aluminum,chrome Brass,etc
2.Alloy and metal oxides: Anodized Aluminum
3.Some non-metallic materials & Special surface treatment:
   silicon wafer, Poly,urethane, ceramics, plastic, rubber, epoxy resin, PVC, PC, ABS, Coating film etc.



Warranty:

1. 24 Months for Machine
2.  Detailed manual and video to guide the user how to use the machine and maintenance, also supply the specs settings for the speed and power to engrave or cut on various material.
3.  Lifely and fast technical guide and solution within 24hours by email and web camera.
