• Model NO.：LS-YLP-P20,30,50l
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Laser Power：20W,30W,50W,100W
• Wavelength：1064nm
• Engraving Depth：1.2mm
• Minimum Charac：0.1mm
• Life of Laser Module：70000~10000hrs
• Power Consumption：<500W
• Engraving Range：Max 400*400mm(Customized)
• Minimum Line Width：0.012mm
• Repeated Accuracy：+-0.003mm
• Transport Package：Wooden Case
• Specification：980*800*1590
• Trademark：Lospeed or Customized
• Origin：China
• HS Code：8456100090
• Production Capacity：100 Sets , Month

Basic Info.

Model NO. LS-YLP-P20/30/50l Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Laser Power 20W,30W,50W,100W Wavelength 1064nm Engraving Depth 1.2mm Minimum Charac 0.1mm Life of Laser Module 70000~10000hrs Power Consumption <500W Engraving Range Max 400*400mm(Customized) Minimum Line Width 0.012mm Repeated Accuracy +-0.003mm Transport Package Wooden Case Specification 980*800*1590 Trademark Lospeed or Customized Origin China HS Code 8456100090 Production Capacity 100 Sets / Month

Product Description

30W Handheld Fiber Laser Marking Engraver Machine


>>>>>Equipment Description<<<<<<

Fiber Laser Marking Machine engraving stainless steel, brass, aluminum (iPhone, iPad ), gold, silver, titanium etc. laser engraving metal & plastic. China industrial fiber laser engraving machine manufacturer. Desktop laser engraving machine for metal laser engraving and plastics marking. Laser engraving logo, text, QR code, bar code, serial number etc.

>>>>>>Machine Features<<<<<<

• 1. Laser power output is stable, and light spot quality is good.
  2. Quick marking and cutting speed at 2-3 times that of conventional machines.
  3. No pollution, no noise, and consumable materials, with power consumption
  4.No need any maintenance,long life,samll volume, suit for working in atrocious conditions.
  5. To easily fit into your production environment

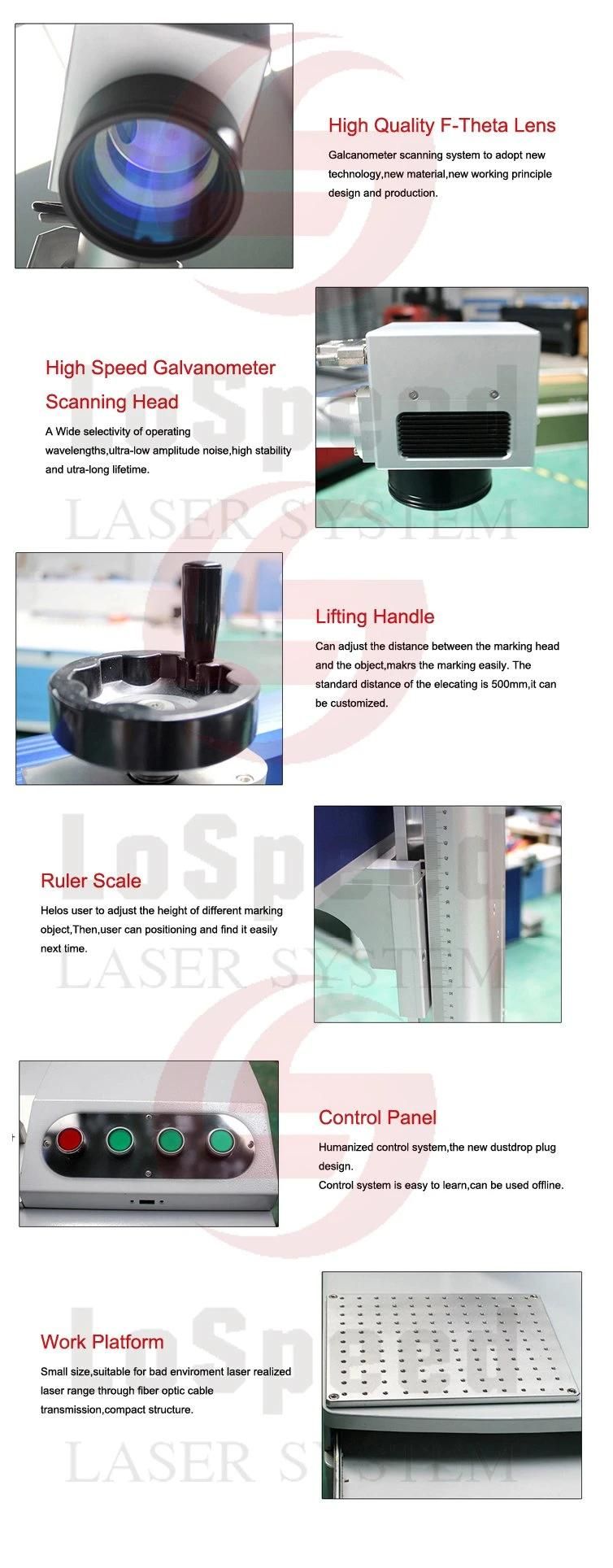

>>>>>>Machine Details Show<<<<<<



>>>>>>Technical Parameters<<<<<<


Model	YLP-20J	YLP-30J
Power	20W	30W
Wavelength	1064nm	1064nm
Beam Quality	M2<1.3	M2<1.3
Output Power	10%-100%(continuously to be adjusted)	10%-100%(continuously to be adjusted)
Output Frequency	20KHz-100KHz(continuously to be adjusted)	20KHz-100KHz(continuously to be adjusted)
Power Stability(8h)	<±1%rms	<±1%rms
Focus Spot Diameter	<0.01mm	<0.01mm
Engraving Range	≤400*400mm(customized)	≤400*400mm(customized)
Engraving Depth	1.2mm	1.2mm
Engraving Speed	800 standard characters/second	800 standard characters/second
Minimum Line Width	0.012mm	0.012mm
Minimum Character	0.1mm	0.1mm
Repeated Accuracy	±0.003mm	±0.003mm
System Operation	Windows XP/2000/98	Windows XP/2000/98
Cooling Mode	Air Cooling	Air Cooling
Environment Temperature	10ºC~35ºC	10ºC~35ºC
Environment Humidity	20%-80%	20%-80%
Power Requirement	220V/Singlephase/50Hz/<400W	220V/Single phase/50Hz/<400W
Life of Laser Module	100000Hrs	100000Hrs
Host Size	800mmx650mmx1435mm	800mmx650mmx1435mm

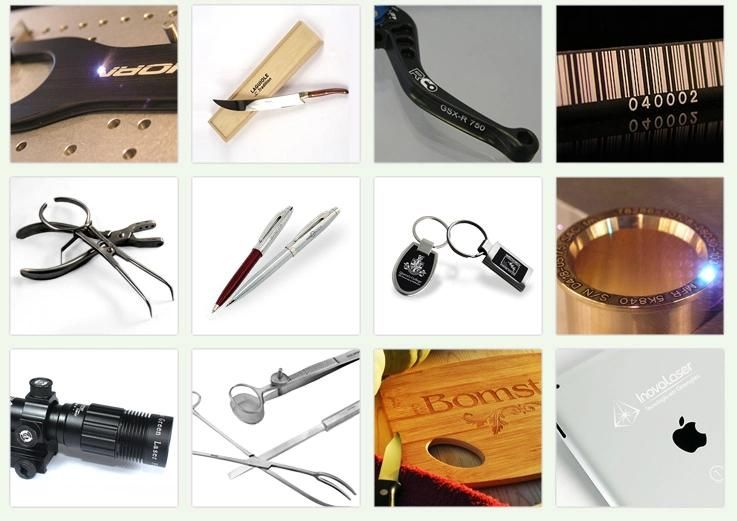

Applicable Materials:



Electronic Components :	Resistance, capacitance, chips, printed circuit boards, computer keyboard.
Apparatus And Meter:	Panel signs, precision equipment ,etc.,
Instrument:	Panel signs nameplates, precision equipment ,etc.,
Hardware Tools :	Knives, tools, measuring tool, cutting tool, etc.,
Automobile Parts :	Pistons, piston rings, gears, shafts, bearings, clutch, lights, etc.,
Mechanical Parts :	Bearings, gears, standard parts, motors, etc.,
Daily Necessities :	Handicrafts, zipper, key holder, sanitary ware, etc.,
Jewelry Rings:	Jewelry, gold, silver,etc.
Food, drinking packing:	Plastic packings,etc.

Get Contact with us Now!

Please advise us following inforamtion to recommend you most suitable machine:

1.What's kind of material do you want to mark? metal parts or non metal material?
2.What's the max working area do you need? we can provide you with 110*110mm, 175*175mm, and 220*220mm, 300*300mm, or customized as your demand
