• Model NO.：LS-YLP-20,30,50L
• Type：Semiconductor Laser Marking Machine
• Marking Method：Scanning Marking
• Product Name：Fiber Laser Marking Machine
• Product Warranty Period：24 Month
• Laser Power：20W, 30W, 50W,
• Wavelength：1064nm
• Engraving Depth：1.2mm
• Cooling Mode：Air Cooling
• Minimum Charac：0.1mm
• Life of Laser Module：70000~10000hrs
• Power Consumption：<500W
• Engraving Range：Max 400*400mm(Customized)
• Minimum Line Width：0.012mm
• Repeated Accuracy：+-0.003mm
• Model：Ls-Ylp-20,30,50L
• Laser Type：Pulse,Mopa
• Beam Quality：M2<1.5
• Transport Package：Wooden Case
• Specification：680*220*500mm
• Trademark：Hispeed or Customized
• Origin：China
• HS Code：8456100090
• Production Capacity：50 Sets , Month

Overview

Product Description



Company Profile



FAQ

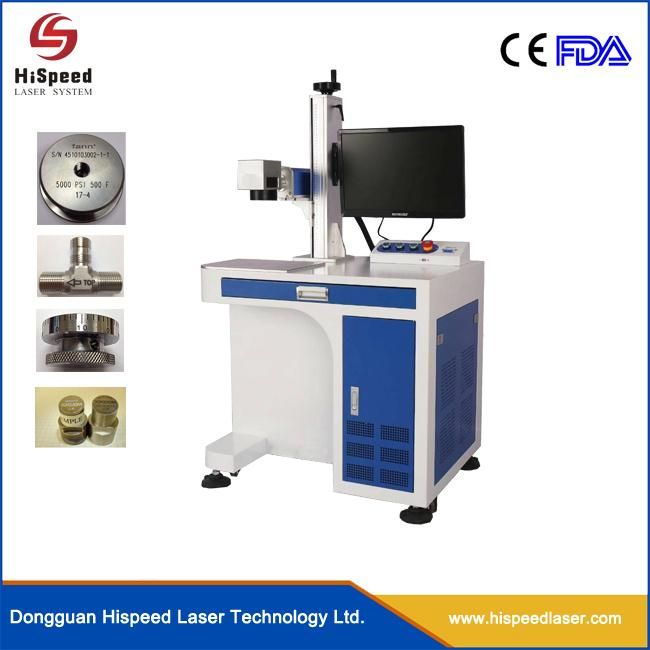

Hispeed Standard Desktop Fiber  Marking Machine for Precision Cutting Tools






Why Should You Use Fiber Laser for Marking?

• Minimal Maintenance
• Diodes have a lifetime of more than 80,000hrs
• High quality permanent marking
• Environment friendly and safe Machinery
• Works both on Metal and Non-metal

Hispeed Laser is a real manufacturer of fiber laser marking machine,contact us for further information if you are interested,thanks a lot.




Main Feature

1. Laser power output is stable,and light spot quality is good.Ultrahigh accuracy and fineness,with resolution up to 2540dpi.
2. Quick marking and cutting speed at 2-3 times that of traditional machines.
3. There is no restriction in operation system.It is convenient in operation,with fully closed light paths,so it is stable,reliable and free in maintenance with ultra-long service life up to more than 100,000 hours.
4. No pollution,no noise,and no consumable materials.
5. High elector-optical conversion efficiency . The gross power consumption is 500W, which is a tenth of lamp pumped solid laser marking machine, so can greatly save energy.
6. No need any maintenance, long life, small volume, suit for working in atrocious working conditions.
7. Powerful marking software. It is compatible with file generate from coreldraw, AutoCAD, Photoshop, etc; support PLT,PCX, DXF, BMP format; SHX , TTF font can be used directly ;it also supports automatically coding,printing serial number, batch number, date, bar code,2D bar code, number jumping automatically, etc.


Technical Parameters


Model	YLP-20J	YLP-30J
Power	20W	30W
Wavelength	1064nm	1064nm
Beam Quality	M2<1.3	M2<1.3
Output Power	10%-100%(continuously to be adjusted)	10%-100%(continuously to be adjusted)
Output Frequency	20KHz-100KHz(continuously to be adjusted)	20KHz-100KHz(continuously to be adjusted)
Power Stability(8h)	<±1%rms	<±1%rms
Focus Spot Diameter	<0.01mm	<0.01mm
Engraving Range	≤400*400mm(customized)	≤400*400mm(customized)
Engraving Depth	1.2mm	1.2mm
Engraving Speed	800 standard characters/second	800 standard characters/second
Minimum Line Width	0.012mm	0.012mm
Minimum Character	0.1mm	0.1mm
Repeated Accuracy	±0.003mm	±0.003mm
System Operation	Windows XP/2000/98	Windows XP/2000/98
Cooling Mode	Air Cooling	Air Cooling
Environment Temperature	10ºC~35ºC	10ºC~35ºC
Environment Humidity	20%-80%	20%-80%
Power Requirement	220V/Singlephase/50Hz/<400W	220V/Single phase/50Hz/<400W
Life of Laser Module	100000Hrs	100000Hrs
Host Size	800mmx650mmx1435mm	800mmx650mmx1435mm

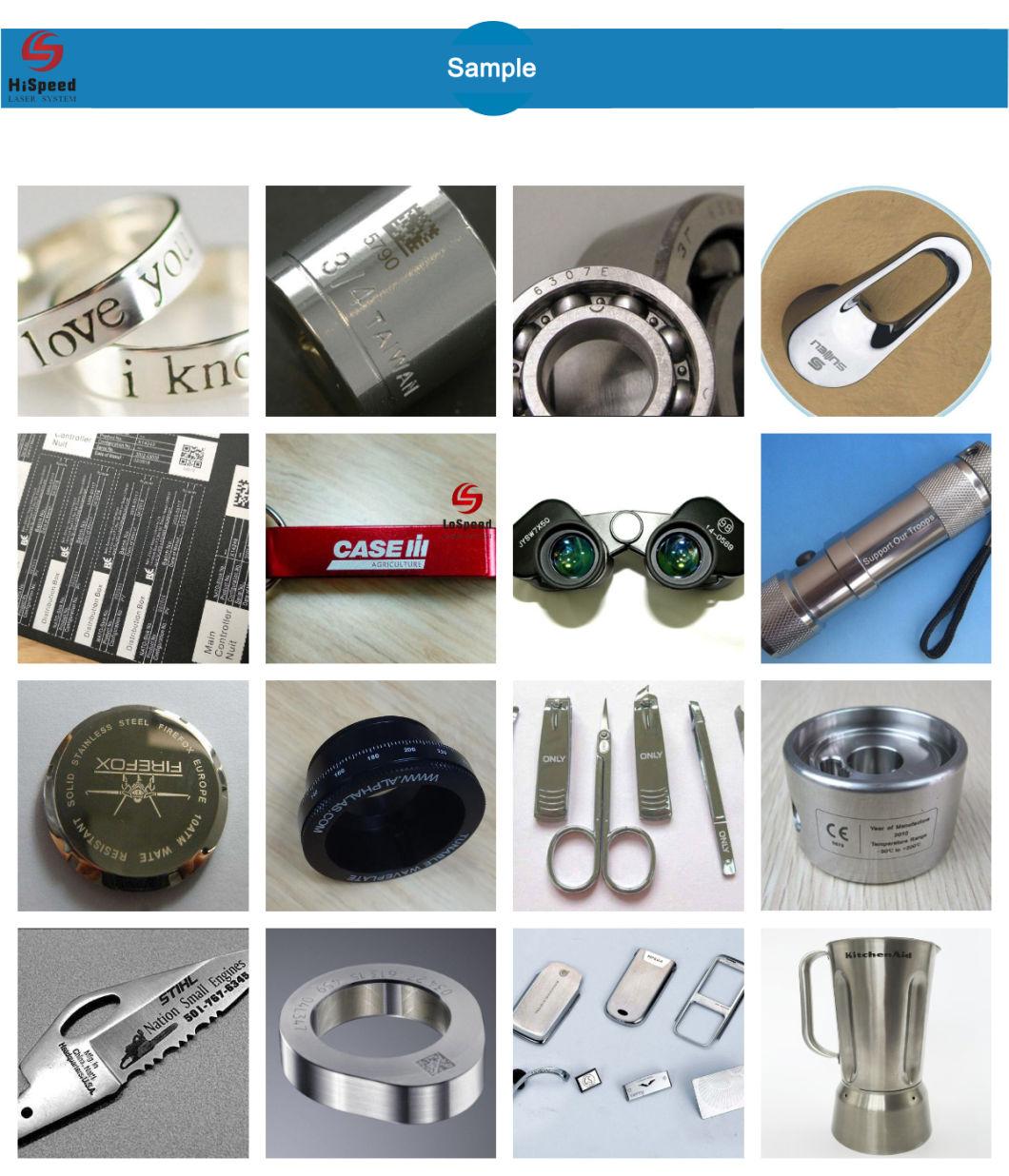

Sample Show

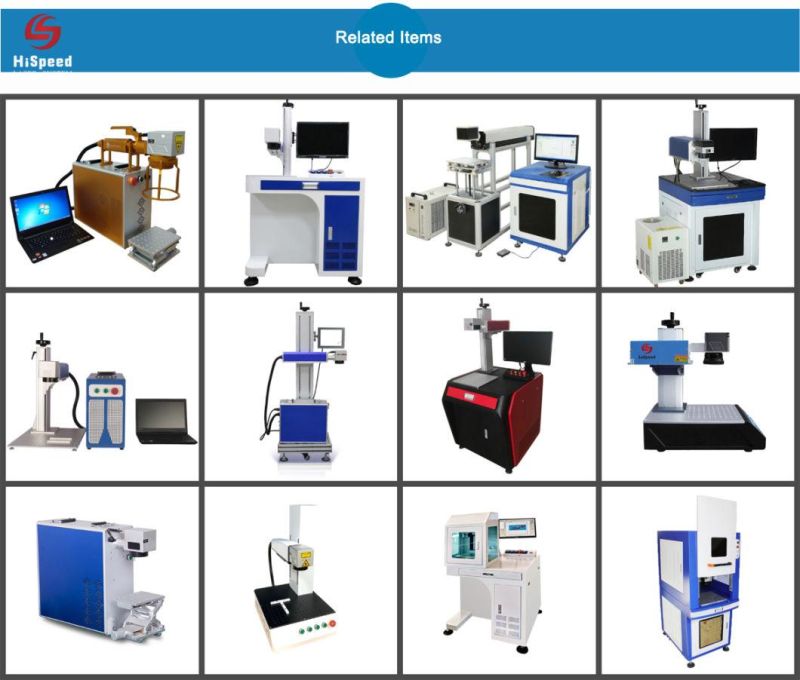

More Laser Machines

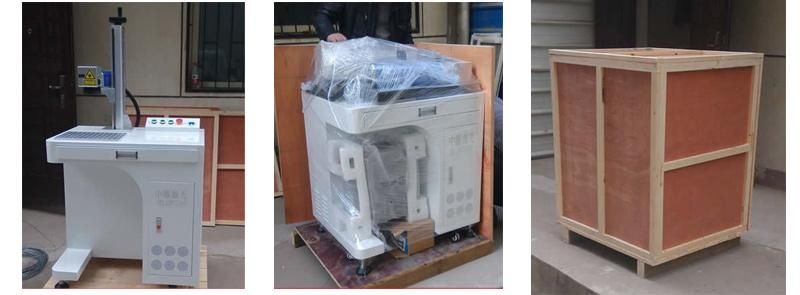

Packaging



Get Contact with us Now!

Please advise us following inforamtion to recommend you most suitable machine:

1.What's kind of material do you want to mark? metal parts or non metal material?
2.What's the max working area do you need? we can provide you with 110*110mm, 175*175mm, and 220*220mm, 300*300mm, or customized as your demand
