• Model NO.：MT-3D3U
• Type：Semiconductor Laser Marking Machine
• Marking Method：Scanning Marking
• Transport Package：Standard Export Wooden Box
• Specification：30w 50w 100w
• Trademark：mactron
• Origin：Guangdong Dongguan
• HS Code：8486204900
• Production Capacity：200set,Month

Basic Info.

Model NO. MT-3D3U Type Semiconductor Laser Marking Machine Marking Method Scanning Marking Transport Package Standard Export Wooden Box Specification 30w 50w 100w Trademark mactron Origin Guangdong Dongguan HS Code 8486204900 Production Capacity 200set/Month

Product Description

3D 600X600mm Big Work Area Engraving Printer Phone Case Fiber Laser Marking Machine

Product Description

3D Dynamic Focus Laser Marking Machine adopts imported core components, it is equipped with high-speed, high precision 3D galvo scanner, and our self-developed 3D specified software and control system. These high-quality configurations ensure the system can make ultra-fine processing on any curved surface parts.

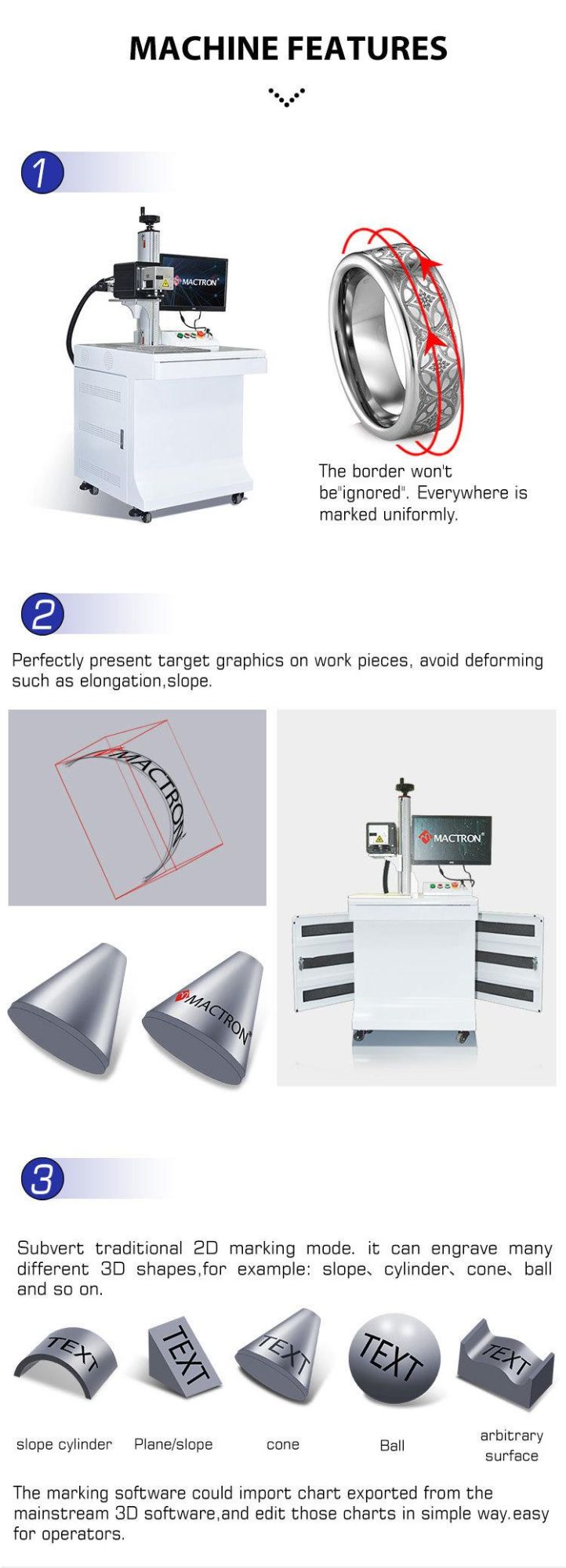

The 3D Dynamic Focus Laser Marking Machine will not deviate the focal point when working, it can real-time trace the deep-curved focuses. This makes the machines' efficiency and performance much better than the traditional 2D fiber laser marking machine. It totally breaks the traditional 2D marking model. The 3D Dynamic Focus Laser Marking Machine opens up a new mode of 3D marking on oblique planes, segment gaps, cylinders, circular cones, spherical surfaces and extruded surfaces.

The 3D Dynamic Focus Laser Marking Machine perfectly realizes laser marking on work-pieces exactly the same as graphics, effectively avoiding deformation like stretch or slope.

It makes the engraved patterns more closed to the original graphics, even the border can be marked perfectly, and the marking on each place of work-piece is very even and clear.

The software of the 3D Dynamic Focus Laser Marking Machine is powerful, it can import various kinds of graphics format of mainstream 3D design software. The software itself can edit some simple 3D graphics, and it has the function of transforming 2D graphics into 3D ones, the operation is very easy.

The 3D Dynamic Focus Laser Marking Machine full realizes the real 3D laser marking, it leads a new era of laser processing.

1. Specification:

Model	MT-3D20/30/50/100
Laser Power	20W, 30W, 50W, 100W (optional)
Marking Area	110X110mm / 300X300mm (Optional)
Marking Style	XYZ 3D System
Wavelength	1064nm
Min. Width	0.03mm
Marking Speed	≤10000mm/s
Cooling Mode	Air Cooled
Voltage	Single Phase 110V/220V Optional  / 50-60Hz
Gross Power	≤1000W(not included extra device)
Environment Requirements	Temperature 10-35ºC / Humidity 5-75%

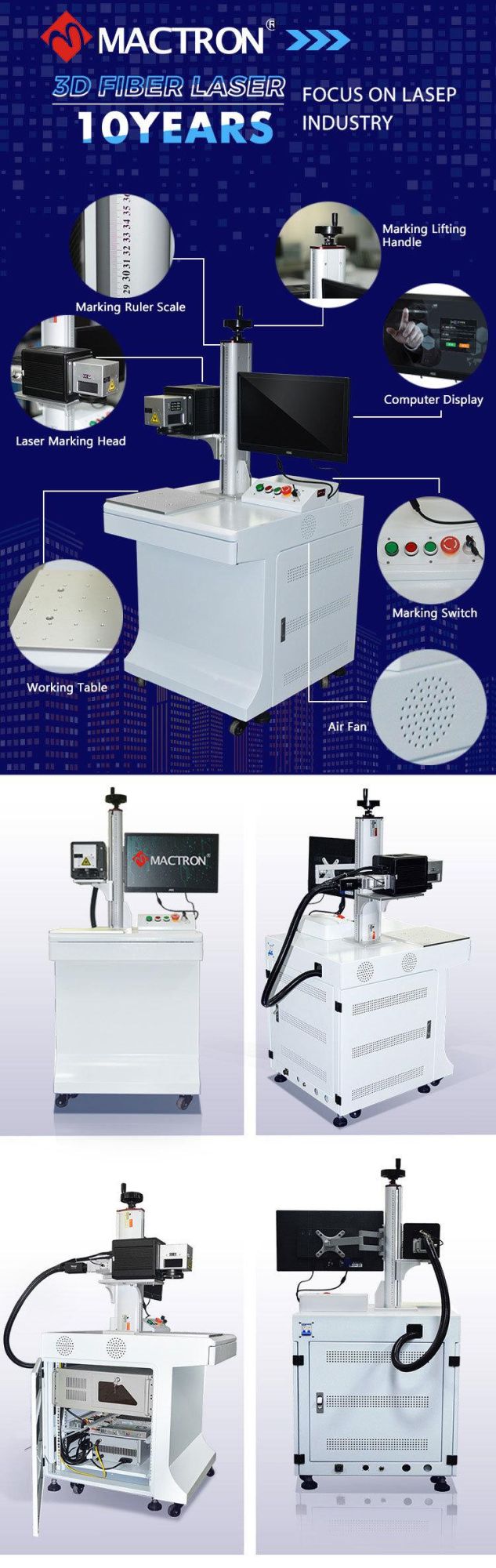

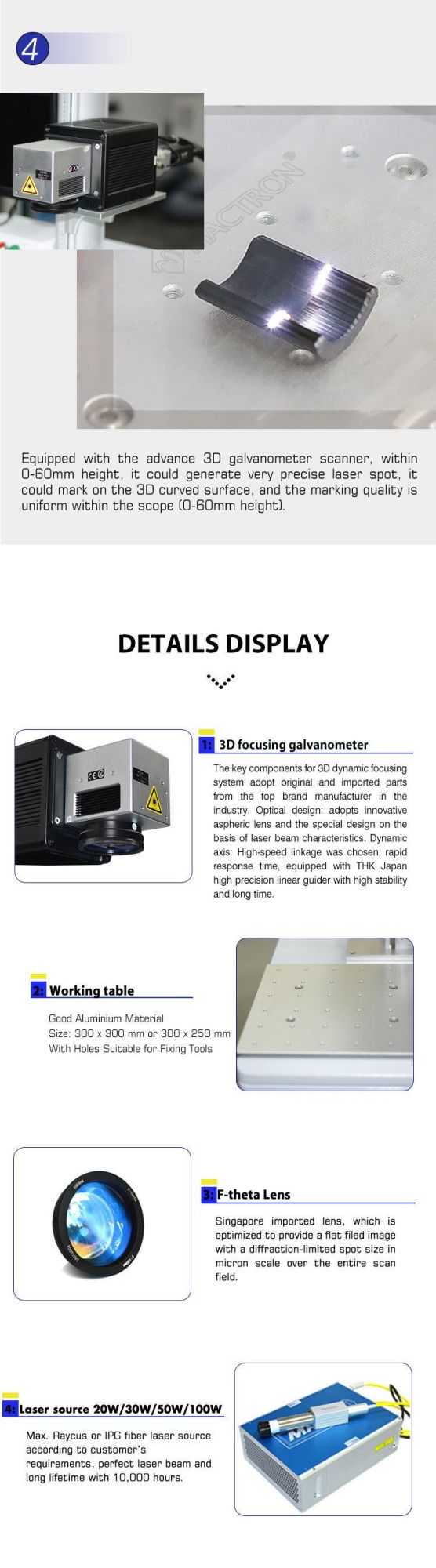

 2. Details With Picture:





Dongguan Mactron Technology Co., Ltd (Mactron Technology Co., Limited) mainly manufactures and sells products like Fiber Laser Marking Machine , UV Laser Marking Machine , Co2 Laser Marking Machine, Laser Printer, Co2 laser cutting and Engraving Machine, Fiber Laser Cutting Machine, Laser Flat Bed, Customized Laser Equipment and a full laser spare parts. The laser equipment system is widely used in many fields, including textiles, leather, clothing, industrial fabrics, advertising, technology products, printing, packaging, electronics, pharmaceuticals, furniture, hardware tools, molds, and other industries.
10 Years experience .
1 year warranty.
200 sets machines per months .
