• Model NO.：MT-6040
• Cutting Speed：0-64000mm,Min
• Local Length：38.1,50.8,63.5,76.2,101.6mm
• Cutting Precision：0-36000mm,Min
• Location Precision：0.015mm
• Min.Line Width：0.15-0.3mm
• Controlling System：DSP High Speed Controller
• Power Source：AC110V,220V± 10%, 50,60Hz
• Gross Power：<1250W
• Transport Package：Standard Export Wooden Packing
• Trademark：Mactron
• Origin：China
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. MT-6040 Cutting Speed 0-64000mm/Min Local Length 38.1,50.8,63.5,76.2,101.6mm Cutting Precision 0-36000mm/Min Location Precision 0.015mm Min.Line Width 0.15-0.3mm Controlling System DSP High Speed Controller Power Source AC110V/220V± 10%, 50/60Hz Gross Power <1250W Transport Package Standard Export Wooden Packing Trademark Mactron Origin China Production Capacity 500 Sets/Month

Product Description

Product Description

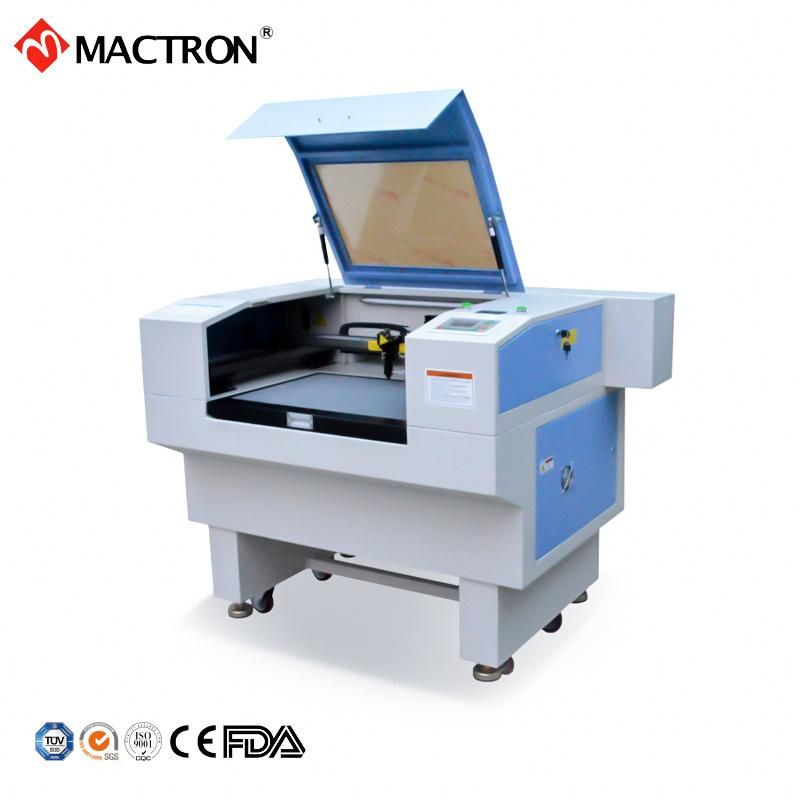

This series models adopt DSP&laser power source, self-developed laser power supply as well as integrated frame-structure. The system's working performance is stable and reliable. It is equipped with latest software, Auto CAD, CoreIDRAW, CAD, and other graphical software, and it can directly output pictures.
With dual laser head, the MT-D/F series can ensure two laser tubes or three laser tubes or even four laser tubes work simultaneously. The system is suitable for large-batch producing industry like patch embroidery. The advantages of the system are that it can double the processing efficiency and ensure the high quality of cutting.So it can combine saving cost with boosting production optimally. The system can be widely applied to garment, leather, cloth toy, computerized embroidery and clipping, cutting of template, art gift, advertisement decoration, building upholster, package, printing ,paper product and other industries.



Parameters

Mode	MT6040
Laser Type	CO2 Glass Laser Tube/(RF Metal CO2 Laser Tube Optional)
Peak Laser Power	70W/80W
Wavelength	10.6um
Cutting Precision	0-36000mm/min
Cutting Speed	0-64000mm/min
Local Length	38.1,50.8,63.5,76.2,101.6MM
Location Precision	0.015mm
Min.Line Width	0.15-0.3mm
Cooling Mode	Water Cooling and Protection System
Graphic Formats Supported	PLT,DST,AI,DXF,BMP,JPG,CAD,CDR,DWG
Controlling System	DSP High Speed Controller
Operating temperature	0ºC-40ºC
Warranty	1 Year
Humidity	5% to 85% (No Condensed )
Gross Power	<1250W
Power source	AC110V/220V± 10%, 50/60HZ
Processing Area	600*400mm
Working Environment	Clean, Free of Dust
Safety Protection Class	Ip54
Laser Generator Safety Class	IV

Product Samples

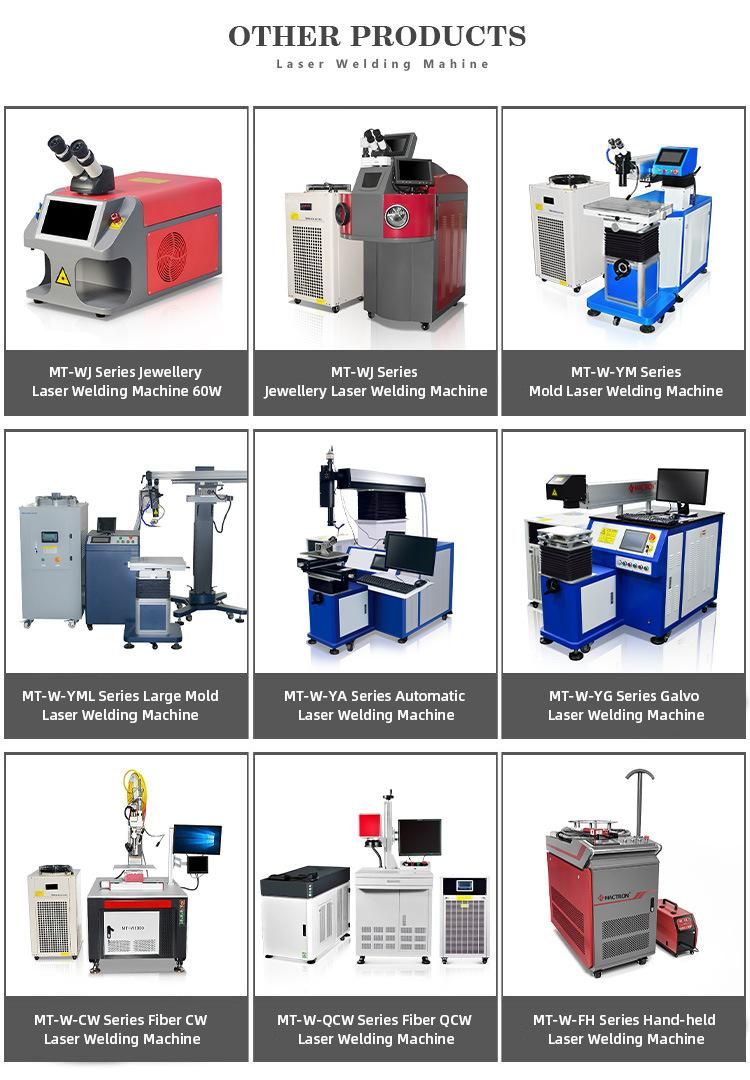

Other Products

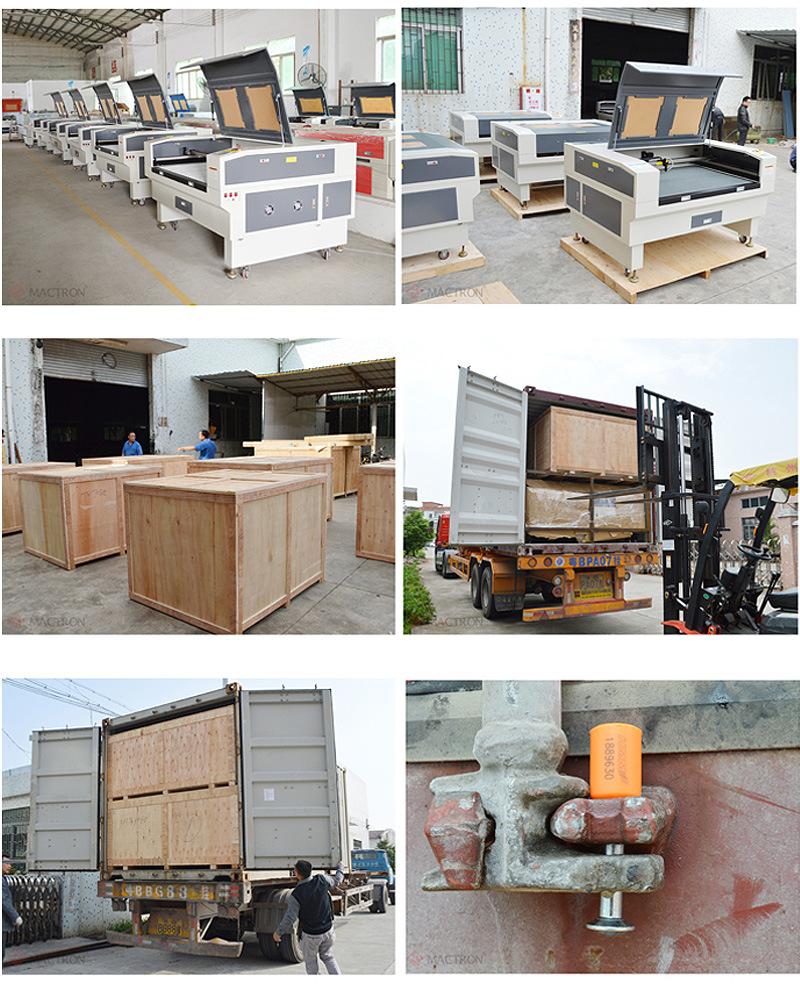

Packaging & Shipping

Our Service


Company Information
Dongguan Mactron Technology Co., Ltd (Mactron Technology Co., Limited) mainly manufactures and sells products like Fiber Laser Marking Machine, UV Laser Marking Machine , Co2 Laser Marking Machine, Laser Printer, Co2 laser cutting and Engraving Machine, Fiber Laser Cutting Machine, Laser Flat Bed, Customized Laser Equipment and a full laser spare parts. The laser equipment system is widely used in many fields, including textiles, leather, clothing, industrial fabrics, advertising, technology products, printing, packaging, electronics, pharmaceuticals, furniture, hardware tools, molds, and other industries.
10 Years experience .
1 year warranty.
200 sets machines per months .
Mactron Technology's business tenet is "Do Honest Bussiness ".
Mactron Technology's managerial spirit: "Solidarity, Exertion, Truthfulness, Innovation".


Certifications
