2019 China Factory 3000W CNC Laser Cutter Fiber/CO2 Laser Cutting or Engraving Machine for Sheet Metal Carbon Steel Stainless Steel Cutting
Zhejiang Jinaolan Machine Tool Co., Ltd.- Application：Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Aerospace Industry, Automotive Industry
- Cooling System：Water Cooling
- Technical Class：Pulse Laser
- Applicable Material：Metal
- Structure Type：Gantry Type
- Laser Classification：Solid Laser
Base Info

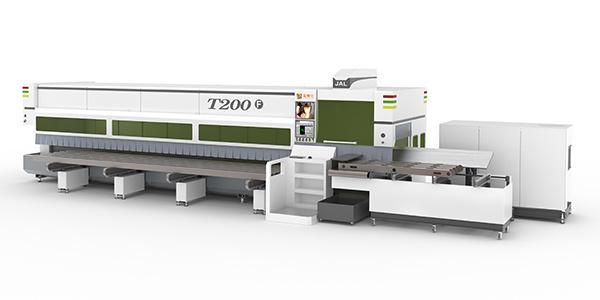

- Model NO.：T200-2
- Laser Technology：Laser Control Fault Cutting
- Transport Package：Wooden Case Packing
- Trademark：JINAOLAN
- Origin：Zhejiang, China
- HS Code：84561100
- Production Capacity：1000units,Year
Description
,
First-class in the industry and in the world
Three chucks can achieve conditional zero tail
The chuck speed can reach 200 ~ 220r/min
The speed in industry is generally 140 ~ 160r/min
Leading in the industry
Axis X,Y and Z are uniformly driven by rack and pinion
The rack and pinion ball screws are mixed, which is prone to "abnormal noise" and often requires "rounding"
Leading in technology
The semi-automatic feeding machine is standard component
The cost is generally increased if the the semi-automatic feeding machine is installed in the industry, which requires additional purchase costs
The overall feeding processing time is 8 ~ 10s.
The average feeding time in the industry is 20 ~ 30 seconds
First-class in the industry and in the worl
Technical parameters
Item | Parameters |
Laser wavelength | 1064-1080nm |
Electro-optical conversion efficiency | 30-35% |
Chuck speed | 220r/min |
Rotary axis stroke | |
Axis X stroke | 350mm |
Repeated positioning accuracy of machine | ±0.03mm |
Machine positioning accuracy | ±0.03mm/m |
Max. positioning speed | 160m/min |
Maximum idle speed | 160m/min |
Maximum acceleration | 1.2G |
Machine weight | 8000kg |
Maximum weight of single pipe to cut | 300kg |
Blanking length range | 0~6000mm |
Mini. tail length | 0mm |
Max. cutting length (mm) | 6500mm |
Diameter (outer diameter) range of the round pipe | Φ15-Φ254 |
Max. side length of square pipe | 200mm |
Dimensions (length x width x height) | 930mm*210mm*240mm |
Number of phases/power rating/voltage frequency | three phases/AC380V/50Hz |
Main power protection rating | IP54 |
