• Laser Classification：Optical Fiber Laser
• Type：Laser Source Welding
• Transport Package：Wooden Case Parking
• Specification：93*60*88cm
• Trademark：Dapeng Laser
• Origin：Shenzhen,China
• HS Code：8515809090
• Production Capacity：300 Sets,Year

Basic Info.

Laser Classification Optical Fiber Laser Type Laser Source Welding Transport Package Wooden Case Parking Specification 93*60*88cm Trademark Dapeng Laser Origin Shenzhen/China HS Code 8515809090 Production Capacity 300 Sets/Year

Product Description

Our core advantages:

1) Top 5 laser company in China. Sold 4500 units of laser machines in China market per year, with best price.
2) Usually have 50 units of laser marking machine(Fiber, CO2, UV, Mopa) in stock, lead time 3-5 days.
3) Fiber Laser cutting machine, (1000W-20,000W laser cutter), usually sell 30 units/month in China.

We are looking for distributor. Price is more competitive.

Model features:
★High energy density, low heat input, small amount of thermal deformation, and narrow melting depth in the heat and heat affected zone of the melting zone.
★The cooling rate is high, so that the weld structure can be fine and the joint performance is good.
★ Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly improving work efficiency.
★The weld is fine, the penetration is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.
★ No consumables, small size, flexible processing, low operating and maintenance costs
★The laser is transmitted through the optical fiber and can work with the assembly line or the robot.
★The touch switch is equipped with a safety clip, and the laser beam can only be emitted when the welding nozzle touches the metal.
★ Red light positioning is used to verify the position during welding.

Product advantages:
The laser welding machine adopts 150-3000 watt fiber laser source, which has high photoelectric conversion efficiency and long life of 100,000 hours. The energy provided by electric energy is 25%-30% converted into laser energy, and the photoelectric conversion rate is many times that of YAG laser.

Application areas:
It is widely used in the automotive, machinery manufacturing, medical equipment, shipbuilding, chemical industry, aerospace, aviation, power battery and daily necessities industries.

Specification:

Laser power	1000W, 1500W
Center wavelength	1080nm
Output power stability	<3%
Laser frequency	50Hz-5KHz
Adjustable power range	10-100%
Beam quality	1.1
Optimal operating environment	Temperature 0-40 ° C, humidity 20% -80%
Electricity demand	1000W(AC220V/10A), 1500W(AC380V/20A)
Output fiber length	15m
Cooling method	Chiller inside

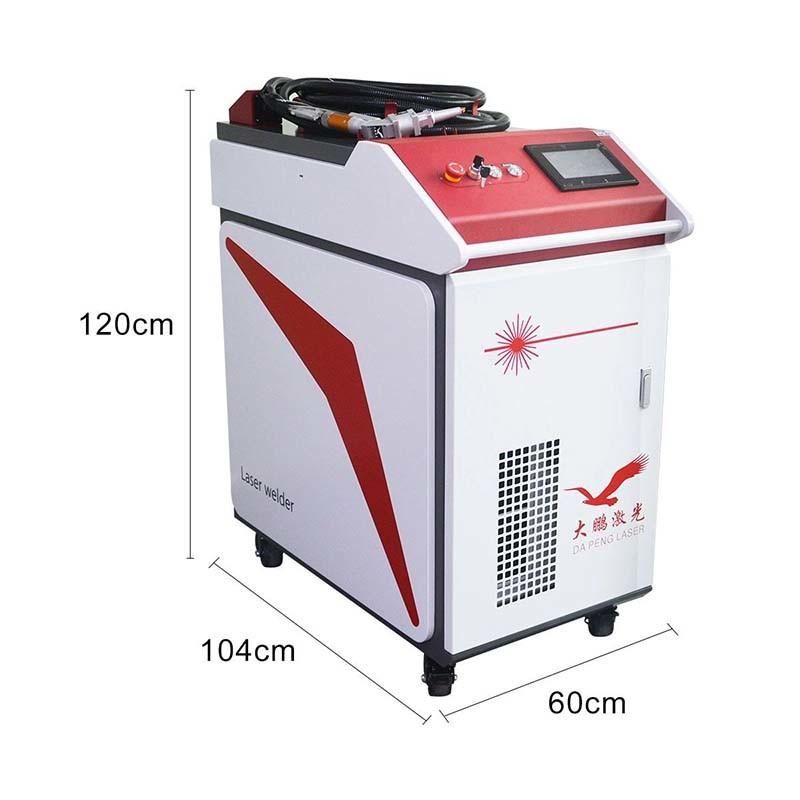

Dimensions	104*60*120cm
Weight	200kg

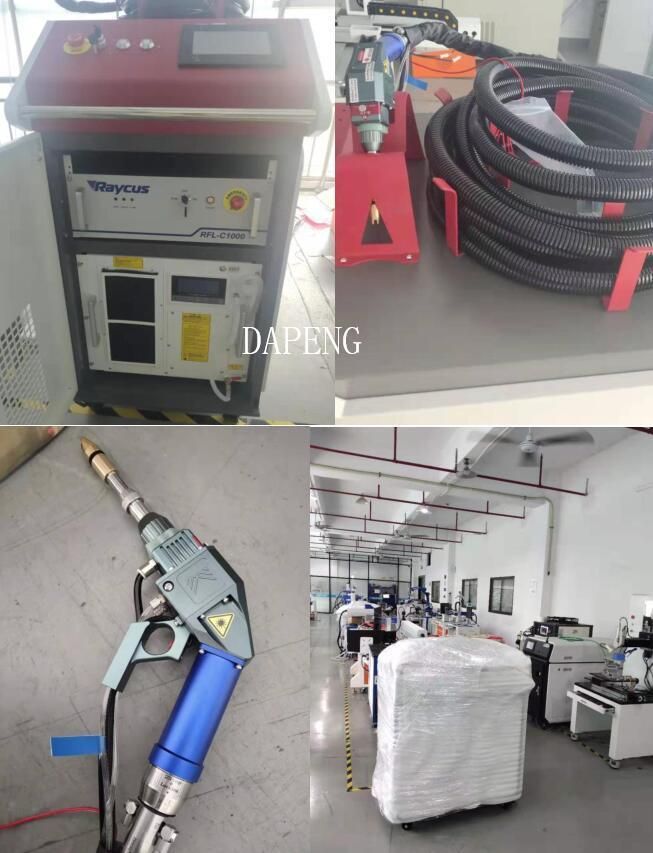

Name	Specs	Qty	Place of origin
Cabinet	Dapeng fiber welding cabinet	1	China
Laser source	Raycus	1	China
Welding head	120°ergonomic wobble welding head	1	China
Chiller	1.2P Double chilling	1	China
Laser control system	Touch screen	1	China
Handheld safety controller	Prevent accidental laser emit	1	China

Comparison of handheld laser welding and argon arc welding:
1. Energy consumption comparison: Compared with traditional arc welding, hand-held laser welding machine saves about 80%~90% of electric energy, and the processing cost can be reduced by about 30%.
2. Welding effect comparison: laser hand-held welding can complete dissimilar steel and dissimilar metal welding. The speed is fast, the deformation is small, and the heat affected zone is small. The weld seam is beautiful, smooth, no/less porosity, and no pollution. The hand-held laser welding machine can perform micro-small parts and precision welding.
3. Comparison of follow-up processes:
When laser hand-held welding, the heat input is low, the deformation of the workpiece is small, and the beautiful welding surface can be obtained without or only simple treatment (depending on the requirements of the welding surface effect). The handheld laser welding machine can greatly reduce the labor cost of the huge polishing and leveling process.
