10W 20W 30W 50W Color Fiber Laser Marking Machine for Steel

Shandong Man Machinery Equipment Co., Ltd.
  • Laser Visibility：Invisible
  • Applicable Material：Metal
  • Cooling System：Air Cooling
  • Technical Class：Pulse Laser
  • Laser Wavelength：Fiber Laser
  • Laser Classification：Semiconductor Laser

Base Info

  • Model NO.：MAN-20
  • Type：Optical Fiber Laser Marking Machine
  • Marking Method：Scanning Marking
  • Model：20W,30W
  • Marking Area：110mmx110mm;
  • Repeat Frequency：10kHz- 100kHz
  • Voltage：220V,50Hz
  • Markingspeed：7000mm
  • Marking Depth：0-0.5mm
  • Positioning Way：Red Light
  • Cooling Mode：Air Cooling
  • Software：Ezcad Software
  • Certification：Ce FDA
  • Transport Package：Wooden Box
  • Specification：860*360*760mm
  • Trademark：CNMANLASER
  • Origin：Shandong
  • HS Code：8456110090
  • Production Capacity：500 Set,Month

Description

01Laser typeFiber laser02Laser wavelength1064nm03SoftwareEz CAD04Laser power10W | 20W | 30W | 50W05Life-span of Fiber Laser Module100 000hours06Marking depth

0.05~0.5 mm  (according materials)

07Marking speed1-7000mm/s08Mini. line width0.01mm09Mini. character0.1mm010Beam Qualityless than 1.4011Resolution4000 DPI012Auto. serialization Supported013Focus Spot Diameter<0.01mm014Power Requirement<400W015Input Power0.5kw016Cooling wayForced air cooling017Power supply

AC 220V/50Hz  ,110V/60Hz

018Marking area 70×70mm , 110×110mm , 160×160mm , 200x200mm ,300x300mm for optional019Mark contentDate coding letter, symbol, pattern, figure, image, bar code, 2D code  Support formatPLT,PCX, AL, DXF, BMP,JPG ,TIF,SHX Compatible softwareAutoCAD, CorelDraw, Photoshop

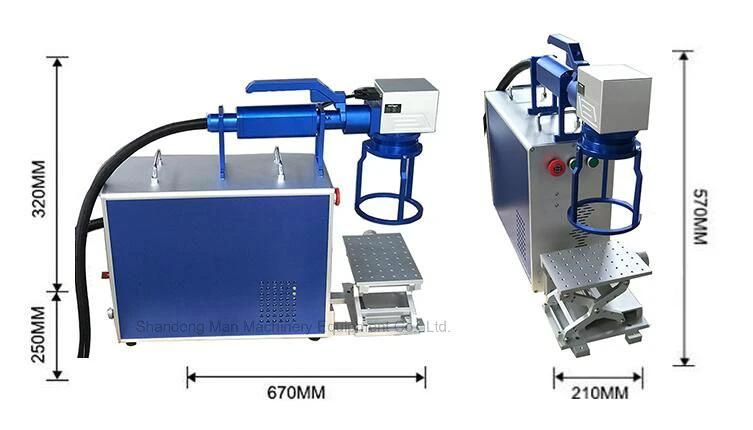

                          DETAILS   IMAGES :
10W 20W 30W 50W Color Fiber Laser Marking Machine for Steel
10W 20W 30W 50W Color Fiber Laser Marking Machine for Steel

(1) Adopting doubling technique of intravenous frequency has greatly improve the stability of laser.

Design on laser cavity adopts a series of optimization method, so as to ensure the beam quality as the fundamental mode.

(2) The machine takes 355nm pumped purple light laser device as the light source.

Narrower pulse width and smaller heat affection contribute to generate peak power.

The higher the peak power is, the wider the adapting range of materials is. This implement perfect printing in some relatively hard material.

(3) Higher pulse stability, namely better pulse consistency of laser produces the same carving effect,

so it's very suitable for precision marking. Higher pulse repetition frequency meets the need of quick marking and high production efficiency.

(4) High efficiency of the photoelectric conversion and long service life.

(5) Automatic in a rotary table (optional item), convenient feeding, fast speed, high efficiency.

(6) The mark is of environmental protection, comply with RoHS standard.

(7) It can support logos and graphs designed in DXF format from Auto-CAD, PLT, BMF, AI, JPG, etc.

(8) It can mark date, bar code and two-dimension code automatically.

(9) Superior performance, good stability, high conversion rate and low energy consumption.

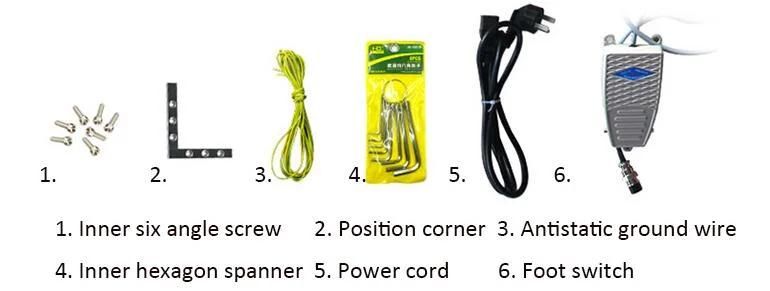

Optional laser parts of the laser machine :

10W 20W 30W 50W Color Fiber Laser Marking Machine for Steel

                                   SAMPLE SHOW :

Fiber Laser Marking Machine's Materials can be engraved:

metal, stainless steel, carbon steel, spring steel, alloy steel, brass, copper, aluminum, galvanized sheet, etc.

>>Fiber Laser Marking Machine's Application scope and mater

1. Electronic and communication products, IC products, electric lines, cable computer components and electric appliance.

2. Every kind of precision parts,hardware tools,instrument appliance,aviation and spaceflight appliance.

3. Jewelry, garments, instruments, gifts, office devices, brand scutcheon, sanitary ware appliance.

4. Dishware, food, drinking, smoking and alcohol,etc.

10W 20W 30W 50W Color Fiber Laser Marking Machine for Steel

                         PACKAGING &  SHIPPING :



Delivery Time:

5-7 working days after receive the payment.Package:plywood case. Transportation Mode:Portable laser marking machine would be shipped by ocean transportation, air transportation or by express.
10W 20W 30W 50W Color Fiber Laser Marking Machine for Steel

                               SERVICES  :

Our Service

We provide 3 -year machine warranty.

 In case it exists machine problem, we will solve the problem through email, skype, phone or video.

If the problem still exists, we will send our technician to customer's plan for machine repair.

We will respond to customer's question within two hours.

 Quality Control of Portable Laser Marking Machine

Portable laser marking machine is our core competencies.

 Quality is our culture.

Our professional quality control team will make strict quality checking for every part of the machine before entering into warehouse.

Before shipment, our engineer will do machine checking within 24 continuous hours to ensure high performance and high stability.

                              ABOUT  US :

Why choose us?

1. Please tell me your detailed requirements in the inquiry for the machine, such as:

What's the materials you are going to cut or engrave?

What's the maximum size for the materials? Includes the thickness.

Do you have some special requirement?


2. After we know your exact needs, we will recommend you with the most suitable machine and competitive price.

3. After you confirm the specification of the machine and the price, the Proforma invoice will be sent to you.

4. We will produce the machine after deposit is wired.

5. All inquiry or question from you will be replied in 12 hours during working day.

6. We offer OEM services. Can print your own logo on product,can customize the retail box packing and other things.

7. We have very experienced R&D engineers and we have strong ability to do ODM projects.
