• Model NO.：PE-F500-3015
• Laser Technology：Laser Fusion Cutting
• Function：Fiber Laser Cutting Machine
• Laser Power：300W,500W,700W,1000W,2000W,3000W
• Laser Source：Ipg , Maxphotonics,Nlight,Spi,Raycus
• Working Area：1500mmx3000mm
• Position Accuracy：0.03mm
• Repostion Accuracy：0.02mm
• Max Moving Speed：100m,Min
• Max Cutting Speed：35m,Min
• Condition：New
• Certification：Ce, ISO 9001, FDA
• Transport Package：Export Sea-Worthy Packing or Air-Worthy Packing
• Specification：ISO 9001 & CE & FDA
• Trademark：Perfect Laser
• Origin：China
• HS Code：8456110090
• Production Capacity：3000 Sets,Year

Basic Info.

Model NO. PE-F500-3015 Laser Technology Laser Fusion Cutting Function Fiber Laser Cutting Machine Laser Power 300W/500W/700W/1000W/2000W/3000W Laser Source Ipg / Maxphotonics/Nlight/Spi/Raycus Working Area 1500mmx3000mm Position Accuracy 0.03mm Repostion Accuracy 0.02mm Max Moving Speed 100m/Min Max Cutting Speed 35m/Min Condition New Certification Ce, ISO 9001, FDA Transport Package Export Sea-Worthy Packing or Air-Worthy Packing Specification ISO 9001 & CE & FDA Trademark Perfect Laser Origin China HS Code 8456110090 Production Capacity 3000 Sets/Year

Product Description

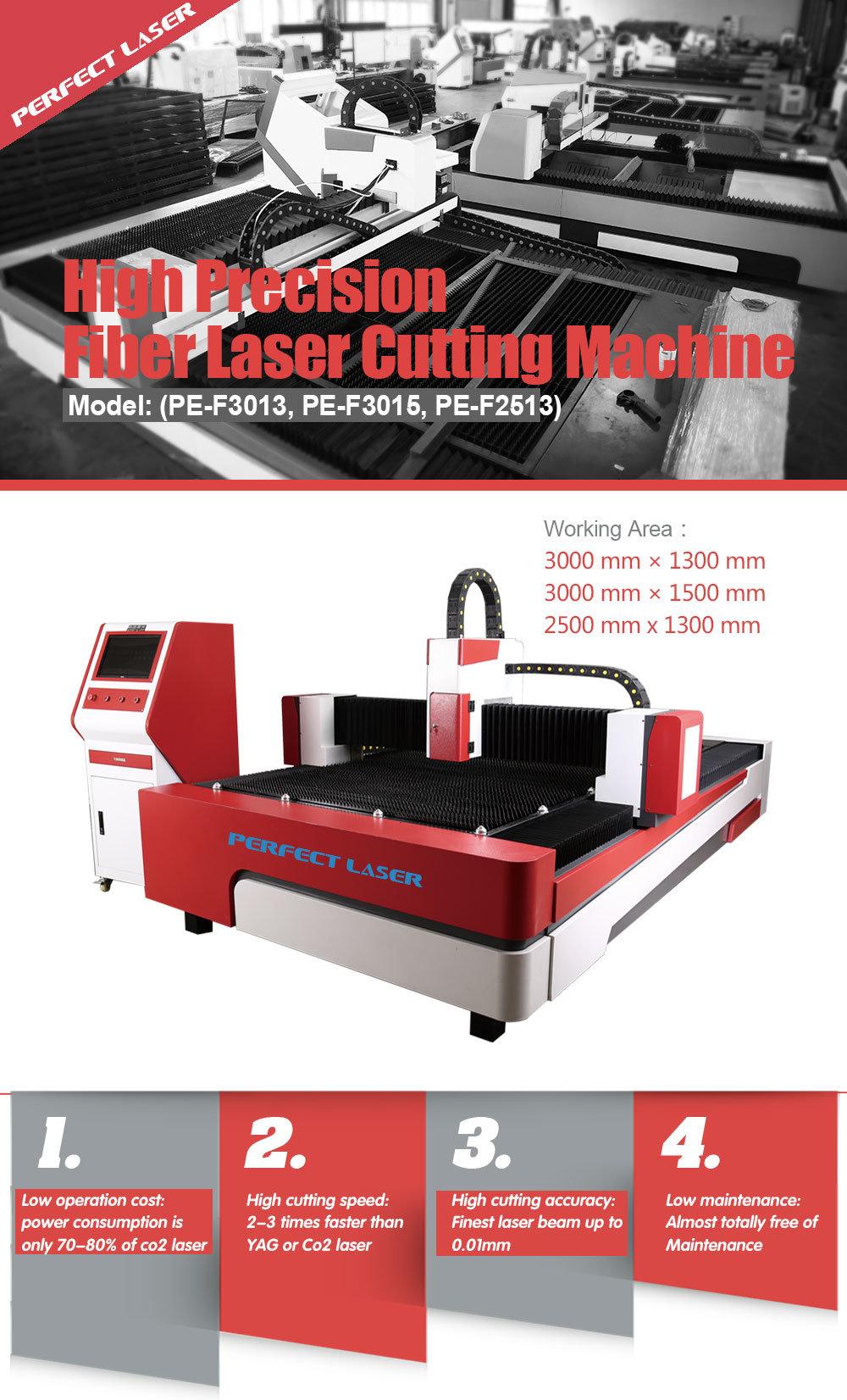

                            300W 500W 1000W High Precision Steel Fiber Laser Metal Cutting Machine




Product Description:
Adopting advanced fiber laser generator and ball screw moving system, it can cut and punch different kinds of metal material with high precision and high speed.
Since laser is transmitted by fiber, it is no need to maintenance or adjust the laser optical path. It greatly reduces the machines fault rate and prolongs the working life.
Large format cutting area meets the demands of various kinds of metal processing.

Applications:
Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing

Applicable Materials:
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium, alloy, galvanizedsteel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.



Technical Data

Model	PE-300-F3015  /  PE-F300-2513
Laser Power	300W
Laser Source	German IPG / American SPI / Raycus Laser Fiber Laser Source
Laser Type	Imported Fiber Laser or Top Brand China Fiber Laser
Laser Technology	Germany Technology
XYZ Working area	1500mm*3000 mm*150mm/ 2500*1300*150mm
Max. Cutting Thickness (Carbon Steel)	1mm - 3mm
Max. Cutting Speed	5-15 Meters / Min (up to materials)
Max. Location speed	60m/min
Laser wavelength	1070nm
Minimum line width	≤0.1mm
Location precision	≤±0.05mm
Re-location precision	±0.02mm
Max. moving speed	100m/min
Supporting Format	PLT, DXF, BMP, AI
Power demand	380V/50Hz
Cooling Way	Water Cooling
Worktable max. load	1000KGS
Transmission Method	Ball Screw Transmission
Table-driven system	Japanese Imported Panasonic Servo Motor & Driving System
Focus Method	Following and Automatic Adjust Focus
Control Method	Offline Movement Control
Control software	Perfect Laser Professional Laser Cutting Software

Working Video, PDF detailed description and quotation will be sent to you upon  your inquiry!!! Contact me by >>>>>>>>>>>>>>>>>>>>>>>>>>
