• Model NO.：MAN-30
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Marking Area：110*110mm
• Laser Power：10W ,20W ,30W
• Modulation Frequency：20 kHz -180 kHz
• Scanning Speed：7000mm,S
• Making Depth：0.01 mm -0.2mm
• Marking Line Width：0.01 mm -0.1mm
• Minimum Character：0.2mm
• Power Supply：AC220V±10%, 50Hz
• Certification：Ce FDA ISO
• Warranty：3 Years
• Transport Package：Wooden Box
• Specification：71*51*71cm
• Trademark：CNMANLASER
• Origin：China
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-30 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Marking Area 110*110mm Laser Power 10W /20W /30W Modulation Frequency 20 kHz -180 kHz Scanning Speed 7000mm/S Making Depth 0.01 mm -0.2mm Marking Line Width 0.01 mm -0.1mm Minimum Character 0.2mm Power Supply AC220V±10%, 50Hz Certification Ce FDA ISO Warranty 3 Years Transport Package Wooden Box Specification 71*51*71cm Trademark CNMANLASER Origin China HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

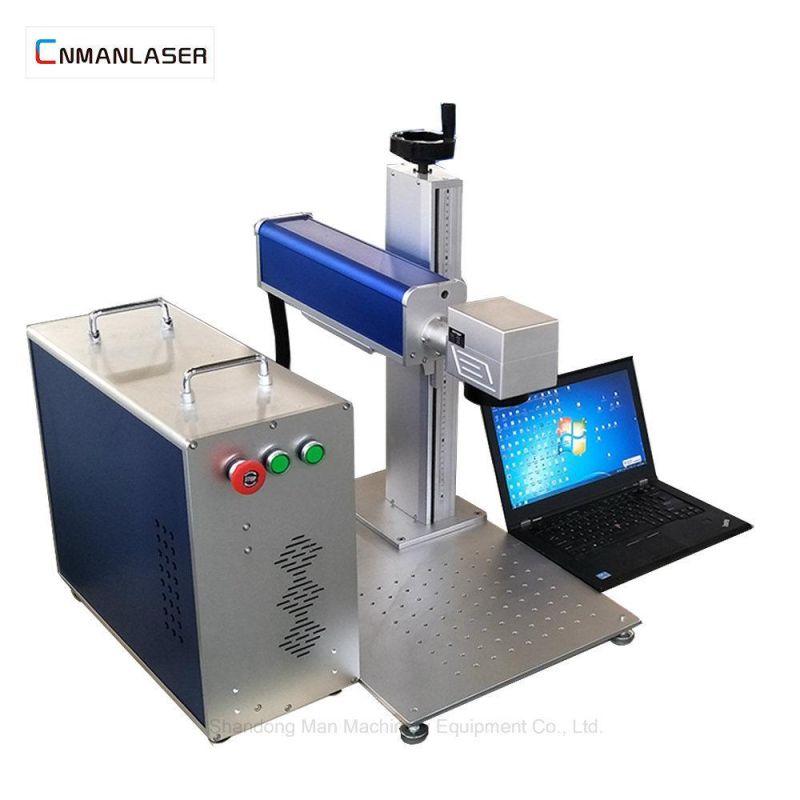

auto focus galvo scanner laser marking machine for lighting eyeglass

Production :

Advantage  :

1, Mini enough, easy carry and move around.

2, The marking height and angle can be adjusted according to the object size and height.

3, Total height 1500mm, scan head can move up and down in top 500mm .

4, Suit production line marking work.

5, Witn inner and out red dot pointer

6, Foot padel include

7, Compatible with Win 7/8/10 laptop

8, Original JCZ control card

9, EZCAD software with user's manual easy operate

10,Standard Raycus brand laser source, JPT, MAX, IPG optional

11, Free standard plywood export package

12, Three years warranty and whole life maintaince.

Technical Parameter :


Laser  type	Fiber Laser
Laser  power	20w /30w
Beam  quality	M2< 1.5
Laser  wavelength	1064±1nm
Power  adjustment  range	10~100%
Output  fiber  length	1~2m
Frequency  of  pulse	20~250KHz
Power  supply	220V/60Hz /8A (110V/60Hz /15A can choose)
Cooling  system	Air Cooling
Graphic  format  supported	DWG.DXF.PLT.CNC.GBR.DST.AI.BMP EMF.PNG.PCX.CMP.FPX.CAL.ICO.JPG XML.EPS.CLP.WMF.TIF.CUR.PSD.TGA
Working  area	110mm*110 mm(Standard)
Marking  depth	<1mm
Marking  speed	7000mm/s
Min. line  width	0.05mm
Repeatability  accuracy	0.003mm
Power  Machine	300W-450W
Operation  temperature	0~40°C
Operation  system	Microsoft Windows 7, 8, 10 system
Operating  environment	Clean and free of dust
Warranty	Three years

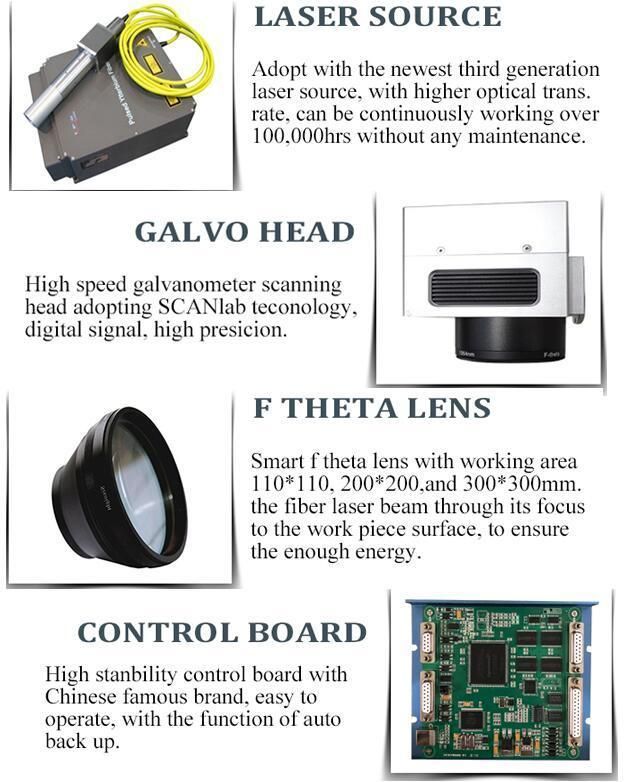

The Details Images :

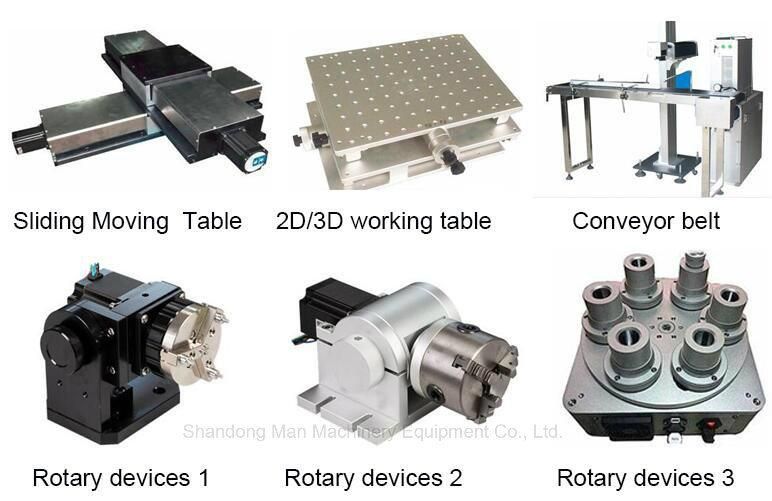

Optional  laser parts for laser machine :

The handle on 2D platform can adjust position right-left, front-back.

>>We have two kinds of rotary: standard rotary and rotary for rings.

    Give us the diameter of your material, we will recommend you a suitable rotary.

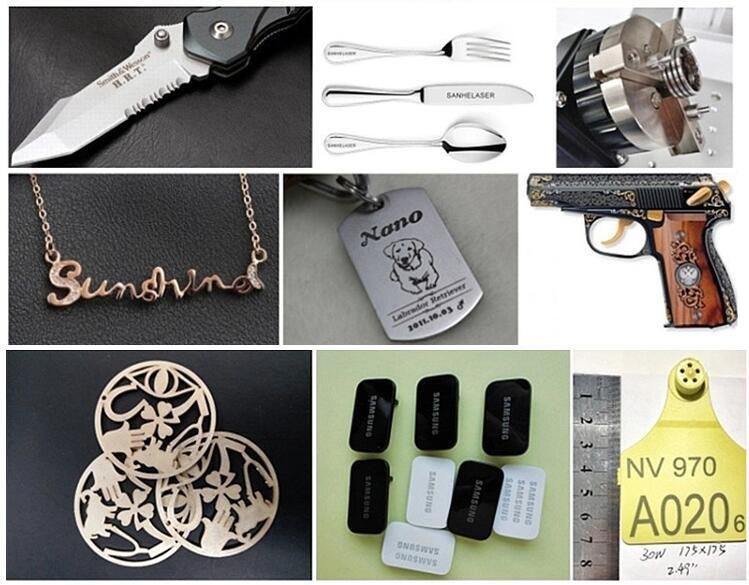

Sample Show :



Packaing & Shipping :

1.Packing details: Standard plywood case

2.Packing size: 900*800*1150mm

3.Packing weight :100KG(NW) 160KG(GW)

4.Delivery time: 15 working days after payment


Services :

-Professional R&D team focuses on customer user experience and marking solutions,customization is available.

-Online training until the customer learns how to operation .

-Provide free Foot switch and safety goggles .

-3 years warranty of the laser source ,1 year warranty for  other parts of the machine.

Everything is ready, after receiving the machine, Just need the simple installation, plug in the power supply can be used, the operation is very

simple.After you got the machine , You will enjoy lifelong service
