Lower Price USB Interface Ezcad Software Cabinet Laser Marking Machine

Shandong Man Machinery Equipment Co., Ltd.
  • Laser Visibility：Invisible
  • Applicable Material：Metal
  • Cooling System：Air Cooling
  • Technical Class：Pulse Laser
  • Laser Wavelength：Fiber Laser
  • Laser Classification：Semiconductor Laser

Base Info

  • Model NO.：MAN-20
  • Type：Optical Fiber Laser Marking Machine
  • Marking Method：Scanning Marking
  • Model：20W,30W
  • Marking Area：110mmx110mm;
  • Repeat Frequency：10kHz- 100kHz
  • Voltage：220V,50Hz
  • Markingspeed：7000mm
  • Marking Depth：0-0.5mm
  • Positioning Way：Red Light
  • Cooling Mode：Air Cooling
  • Software：Ezcad Software
  • Certification：Ce FDA
  • Transport Package：Wooden Box
  • Specification：860*360*760mm
  • Trademark：CNMANLASER
  • Origin：Shandong
  • HS Code：8456110090
  • Production Capacity：500 Set,Month

Description

TypeFiber laserPower20W 30W 50WLaser Wavelength1064nmMarking Area110*110mm,150mm*150mmMarking Depth≤1mmMarking Speed7000mm/secondMinimum Line Width0.01mmMinimum Character0.15mmRepeated Precision±0.002mmLife-span of Fiber Laser Module100 000hoursBeam QualityM2 <1.5Laser Wavelength  1064nm Output Power of Laser10%~100% continuously to be adjustedSystem Operation EnvironmentWindows XP / W7--32/64bits / W8--32/64bitsCooling ModeAir cooling--Built-inTemperature of Operation Environment15ºC~35ºCPower Input110/220V ± 10% /,50/60HZPower Requirement<500WCommunication InterfaceUSB2.0Machine Dimension/with package900*800*1150mmNet Weight/gross weight70kg/100kgOptional (Not free of charge)Rotary Device

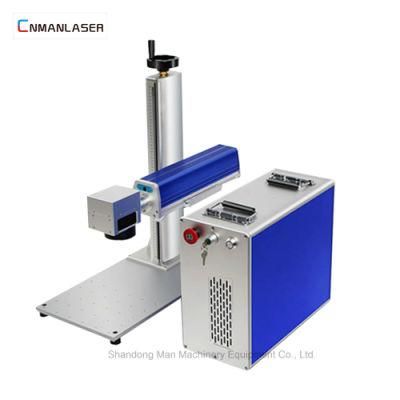

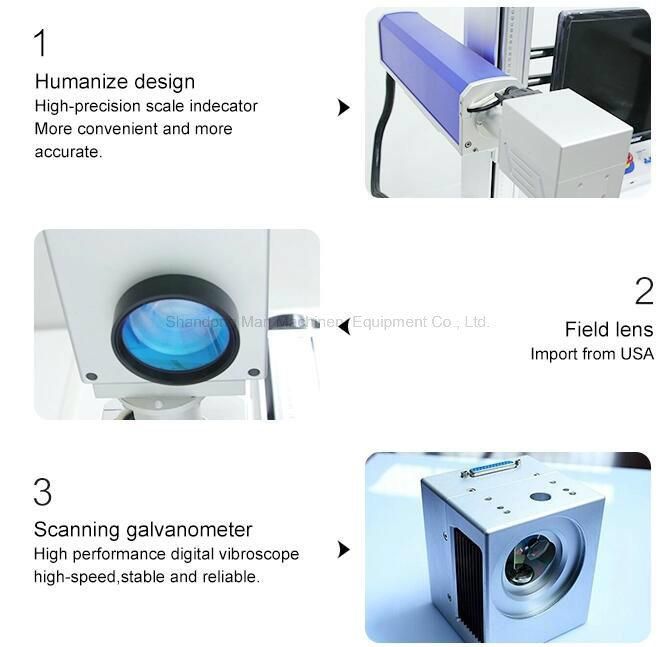

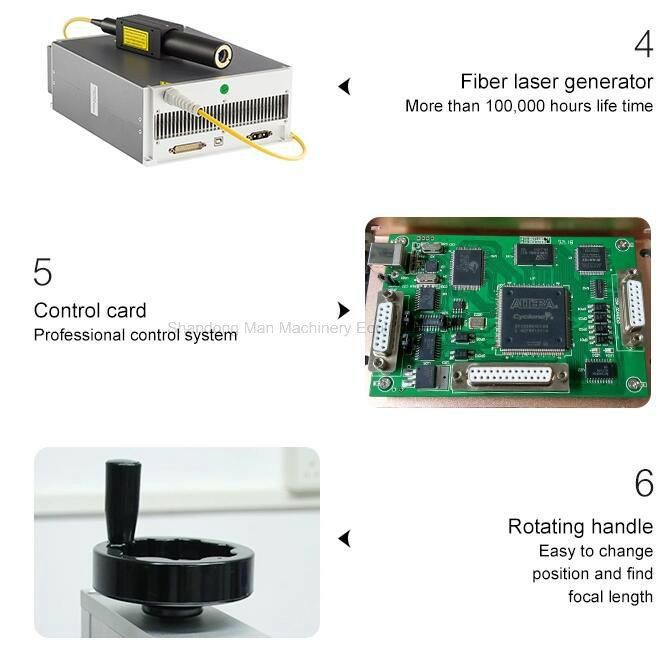

DETAILS   IMAGES :

Lower Price USB Interface Ezcad Software Cabinet Laser Marking Machine
Lower Price USB Interface Ezcad Software Cabinet Laser Marking Machine

ADVANTAGE   :

1.The laser marker machine use 30W raycus laser source,great stability and long lifespan.

2.The laser marker machine use high quality lens, narrow laser beam, less work materials consumption, small heat affected zone.

4.The laser marker machine use high speed galvo,it has a rapid processing speed which is 2-3 times than that of the traditional marking machine.

5.The optional part:rotary axis ,you can add it on the machine when you want to mark cylindrical materials.

6.It does not need any maintenance and has a long lifetime and small volume, and it is specially suitable for the bad environment.

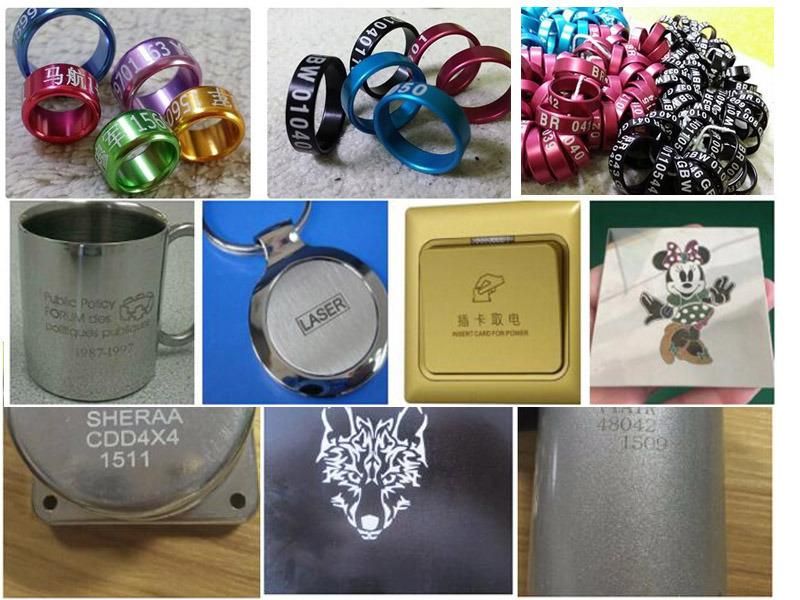

SAMPLE SHOW :

Applicable Material

All metal , some non-metal material marking such as nylon, ABS, PVC, PES

Applicable Industry
Electronic components, integrated circuits, mobile communications, medical equipment, eyeglasses and clocks, jewelry, auto parts, plastic buttons

Lower Price USB Interface Ezcad Software Cabinet Laser Marking Machine

PACKAGING &  SHIPPING :

Package:

The laser marker machine will be packed by plastic sheet and the important parts of the machine will be protected by foam,

last ,the wood cnc router will be put in plywood case .

Transport :

We will send the machine to Qingdao port, then the machine will be transported to you by ship ,train or airplane,

you can choose the method of transportation that you like.

Lower Price USB Interface Ezcad Software Cabinet Laser Marking Machine


SERVICES   :


1. 3 years quality guaranty, the machine with main part (excluding the consumables) shall be changed free of charge

when if there is any problem during the warranty period.

2.Lifetime maintenance free of charge.

3.Free training course at our plant.

4.We will provide the consumable parts at an agency price when you need replacement.

5.24 hours on line service each day, free technical support.

6.Machine has been adjusted before delivery , operation disk was included. If there is also any questions, pls kindly tell me.

PAYMENT  TERMS

--TIT : 30% TIT in advance and pay the balance 70% against goods ready before shipping.

-Western Union :Total amount should be below than $5000USD
