CO2 Fabric Wood Stone Acrylic Laser Engraving and Cutting Machine

Jinan Dwin Technology Co., Ltd.
  • Application：Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
  • Cooling System：Water Cooling
  • Technical Class：Pulse Laser
  • Applicable Material：Nonmetal
  • Structure Type：Desktop
  • Laser Classification：Semiconductor Laser

Base Info

  • Model NO.：DW1390
  • Laser Technology：Laser Flame Cutting
  • Laser Power：60W,80W,100W,130W,150W for Your Reference
  • Machine Application：Non Metal, Such as Wood, Acrylic, MDF, Leather etc
  • Machine Warranty：18 Months
  • Cutting Thickness：0-30mm
  • Graphic Format Supported：Ai, BMP, Dst, Dwg, Dxf

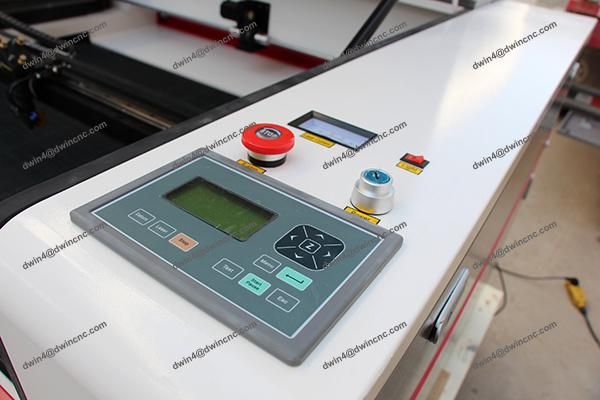

  • Control Configuration：Redcam
  • Guide Rail：Taiwin Hiwin Square Rail

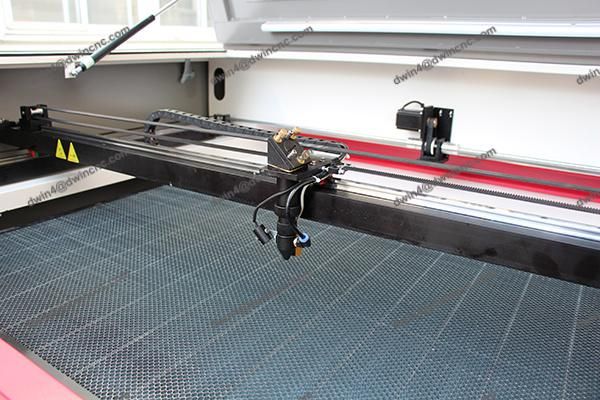

  • Table：Honey Nest or Blade Table
  • Machine Package：Veneer Case
  • Certification：Ce, FDA
  • Transport Package：Plywood Box, Free of Fumigation
  • Specification：Machine size can be customized
  • Trademark：Dwin
  • Origin：China
  • HS Code：8456100090
  • Production Capacity：50sets Per Month

Description

1ModelDW960 laser engraving machine used2Working area90cm*60cm / 35in*24in (L*W)3Laser power40W/60W/80W4Laser typeCO2 sealed laser tube,water-cooled5Engraving speed0-60000mm/min6Cutting speed0-10000mm/min7Power supply220V±10% /50HZ , 110V±10%//60HZ8Min. shaping characterLetter 1.0 x 1.0mm9Graphic format supportedBMP, PLT, DST, DXF, AI,CDR10Software supportedCorelDraw, PhotoShop, AutoCAD11Laser Output Control1-100% software setting12Highest Scanning Precision2500DPI13Resolution ratio< 0.01mm14Location precision<0.01mm15Working temperature5°C-40°C16Operating humidity5%-95%(without condensed water)17Equipment Dimension1420mm*1100mm*1070mm/57in*43in*42in (L*W*H)18Net Weight300kg19Optional partsUp-down worktable, Red light pointer, Auto focus, Rotary device
CO2 Fabric Wood Stone Acrylic Laser Engraving and Cutting Machine
CO2 Fabric Wood Stone Acrylic Laser Engraving and Cutting Machine
CO2 Fabric Wood Stone Acrylic Laser Engraving and Cutting Machine


Applicable materials:
Non-metal materials such as double color board, acrylic glass, bamboo and wood, rubber, marble, granite and tiles, leather etc

Applicable industry:
billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry etc
CO2 Fabric Wood Stone Acrylic Laser Engraving and Cutting MachineCO2 Fabric Wood Stone Acrylic Laser Engraving and Cutting Machine
  •  International Quality Certificates: CE and FDA.
  •  The whole machine has full 2 years' warranty, the consumables is 6 moths (Including Laser tube and Mirrors & Lens)
  • The warranty is dated from Ex factory date; we will send you the parts for replacing free of charge during warranty; when the warranty is over, we'll charge for replacing.
  • We will provide life tine service online, you can get tech support within 24 hours by Email| Telephone| Skype etc
