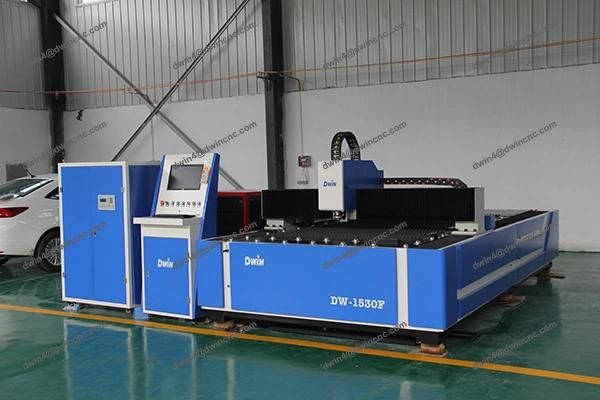

1000W Metal Laser Cutter Machine for Metal Laser Cutting
Jinan Dwin Technology Co., Ltd.- Application：Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Applicable Material：Metal
- Structure Type：Gantry Type
- Laser Classification：Solid Laser
Base Info
- Model NO.：DW-L1325F
- Laser Technology：Laser Flame Cutting
- Name：Fiber Metal Laser Machine
- Type：Metal Laser Cutting Machine
- Laser Wavelength：1064nm
- Cutting Size：3000X1500mm or Customized
- Geometry Accuracy：0.03mm,1000mm
- Power Ratings：Three-Phase AC 380V 50Hz
- Laser Power：300W,500W,1000W,2000W,
- Certification：Ce, ISO, FDA
- Machine Warranty：2 Years
- Cooling Way：Water Cooling
- Transport Package：Plywood Box, Free From Fumigation
- Specification：Machine can be customized
- Trademark：Dwin
- Origin：Jinan City, China
- HS Code：8459100009
- Production Capacity：500 Sets Every Year
Description
Basic Info.
Model NO. DW-L1325F Laser Technology Laser Flame Cutting Name Fiber Metal Laser Machine Type Metal Laser Cutting Machine Laser Wavelength 1064nm Cutting Size 3000X1500mm or Customized Geometry Accuracy 0.03mm/1000mm Power Ratings Three-Phase AC 380V 50Hz Laser Power 300W/500W/1000W/2000W/ Certification Ce, ISO, FDA Machine Warranty 2 Years Cooling Way Water Cooling Transport Package Plywood Box, Free From Fumigation Specification Machine can be customized Trademark Dwin Origin Jinan City, China HS Code 8459100009 Production Capacity 500 Sets Every YearProduct Description
1000W Metal Laser Cutter Machine for Metal Laser Cutting
Machine Technical parameters
| No. | Description | Parameter |
| 1 | Model | Fiber laser metal cutting machine |
| 2 | Work table | saw tooth work table |
| 3 | Working area (mm) | 1300x2500 mm |
| 4 | Laser power (walts) | Cyrus 500w ( 1000w/ 2000w optional) |
| 5 | Laser type | AC220 50HZ |
| 6 | Position speed | 2000mm/min |
| 7 | Locating precision | <0.01mm |
| 8 | Resolution ratio | ≤ 4500dpi |
| 9 | Control configuration | Cypcut control system |
| 10 | Data transfer interface | USB(offline) |
| 11 | Cooling way | Water cooling CW 6100 |
| 12 | Compatible Software | CorelDraw, Photoshop, AutoCAD |
| 13 | Machine packing | Veneer case |
| 14 | Machine warranty | 2 years and free maintance for whole life |
Working principle of the Fiber laser cutting machine:
Metal fiber laser cutting machine is adopted metal laser which is using xenon lamp as excitation source and focused the laser on the workpiece surface, the workpieces are there areas of partial melting and moment , move the light irradiation by CNC machine computer control system and automatic punch.

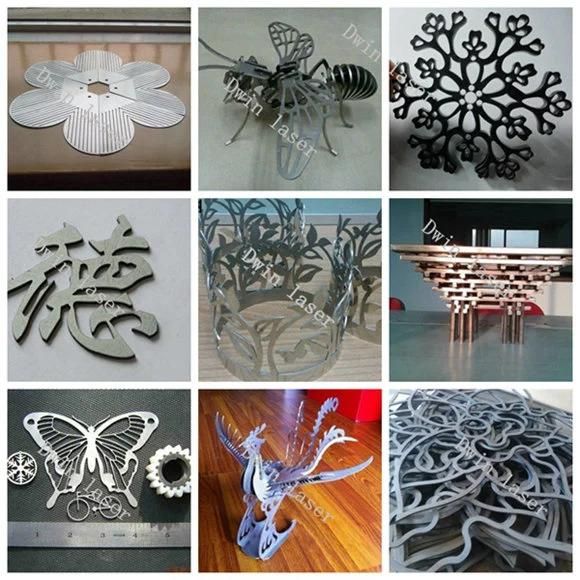

Fiber Laser cutting Machine Application:
Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries. Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.
