• Model NO.：FLC1310A
• Laser Technology：Laser Control Fault Cutting
• Laser Power：150W-300W
• Working Area：1300*1000mm
• Warranty：24 Months
• Focusing Way：Auto Focus
• Transport Package：Wood Crate
• Specification：1310
• Trademark：FLYING
• Origin：China
• HS Code：8456110090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. FLC1310A Laser Technology Laser Control Fault Cutting Laser Power 150W-300W Working Area 1300*1000mm Warranty 24 Months Focusing Way Auto Focus Transport Package Wood Crate Specification 1310 Trademark FLYING Origin China HS Code 8456110090 Production Capacity 100PCS/Month

Product Description

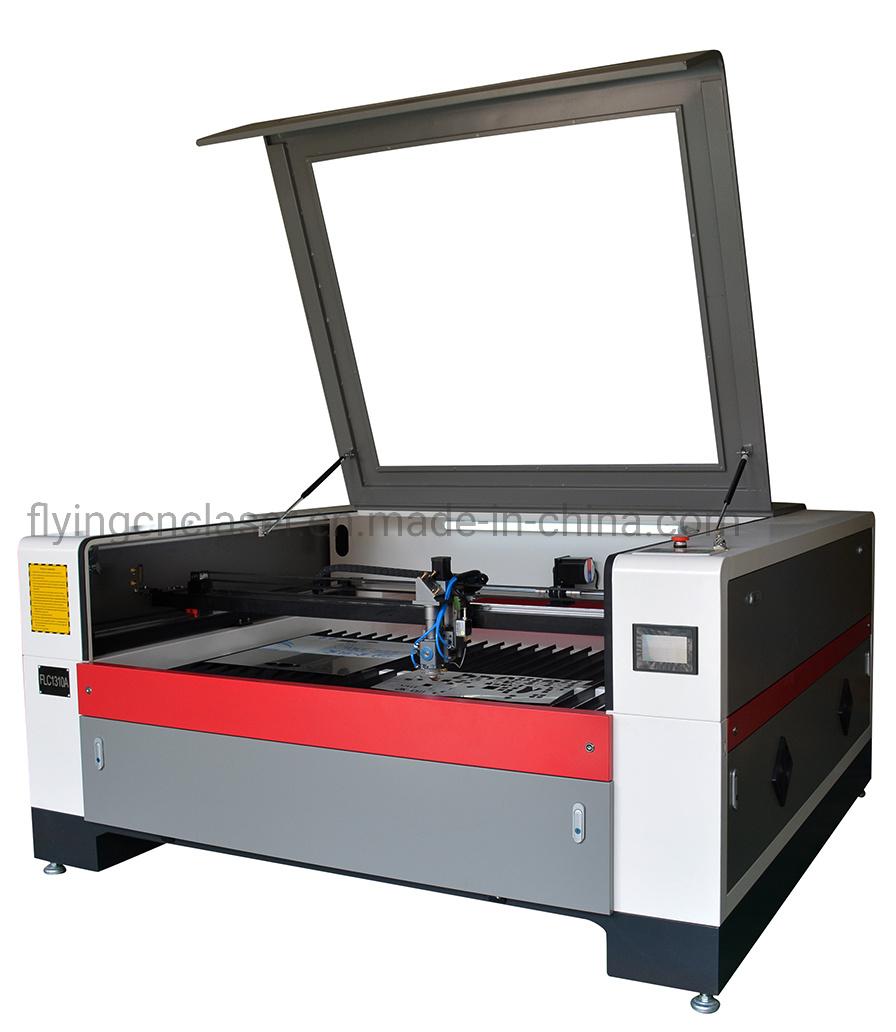

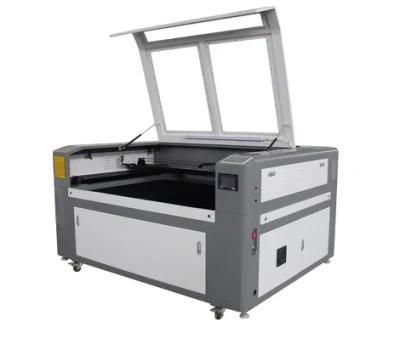

FLC1310A co2 laser cutting machine for metal wood plexiglass nonmetal


Features:

    This laser machine is the latest design with High quality 150W-300W laser tube, it can cut metals such as stainless steel,carbon steel, also can cut non-metal such as acrylic,wood/MDF,leather, foam, plastic and etc. It is equipped with advanced laser controlling system with auto/live focus, if the metal sheet is not flat, the system can sense the distance from the nozzle to the material surface and follow the surface up and down to automatically adjust the certain focus distance to keep the highest precision cutting quality.

  According to the principle of physical and mechanical load force, the Y-axis transmission structure adopts the intermediate design, and the force on both sides is more balanced; the deceleration design greatly enhances the output torque and the power is more powerful; the design of the coupling makes the verticality of the horizontal and vertical axes more perfect and precise

Application materials:
Stainless steel, carbon steel, Wood, bamboo, jade, ceramic, textile, garments, crystal, plastic, Color plates, Plexiglas, glass, acrylic, wood, paper, leather, cloth, rubber, marble, granite, tiles, shells and other non-metallic materials.

Application industries:
Mainly used for advertising industries ( stainless metal and carbon steel ), sheet metal industry (carbon steel ), packaging  industry (die board )and so on . steel industries,Plastic and rubber industry, ads/crafts/presents industry. Strumpet/machine components, leather cloth industry. Advertising logo signs, gifts, crystal ornaments, paper cutting techniques, relief, wood carving Jane. Printing plate, leather clothing, embroidery, decoration, frame making and other industrie


Specifications:

Model	FLC1310A mixed laser cutter
Working size	1300*1000mm
Laser power	150w-300w
Cutting speed	0 - 50 mm/s
Reposition accuracy	±0.01mm
Working voltage	AC110- 220V±10%,50-60Hz
Consuming power	less than 1,000W
Working temperature	0 - 45°C
Working humidity	8 - 95%
Minimum letter size	English :1 x 1mm Chinese:2 x 2mm
Supported file format	BMP, HPGL, PLT, DST, DXP, and AI
Transmission	30mm belt or BallScrew
Driving system	Stepper or Servo
Cooling system	CW-5000 chiller/CW-6000 chiller
Other auxiliary equipment	Exhaust-fans & air-exhaust pipe, Air Pump, Chiller
Laser controller	RD6332M with auto focusing System
Laser Head	Auto Focus laser head
Compatible software	CorelDraw, AutoCAD, Photoshop
Laser tube type	Sealed CO2 glass laser tube

Machine size can be customsized according to needs:






Samples Show:
