• Model NO.：FLC1390A
• Laser Technology：Laser Control Fault Cutting
• Laser Pwer：150W-300W
• Working Area：1300*2500mm
• Warranty：24 Months
• Focusing Way：Auto Focus
• Transport Package：Wood Crate
• Specification：1390,1325
• Trademark：FLYING
• Origin：China
• HS Code：8456110090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. FLC1390A Laser Technology Laser Control Fault Cutting Laser Pwer 150W-300W Working Area 1300*2500mm Warranty 24 Months Focusing Way Auto Focus Transport Package Wood Crate Specification 1390/1325 Trademark FLYING Origin China HS Code 8456110090 Production Capacity 100PCS/Month

Product Description

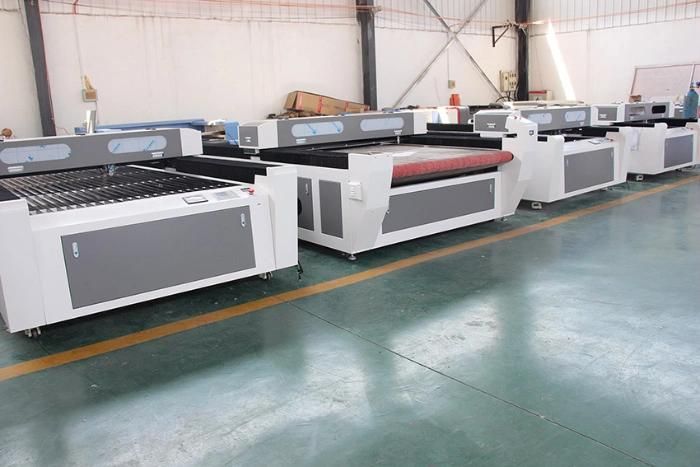

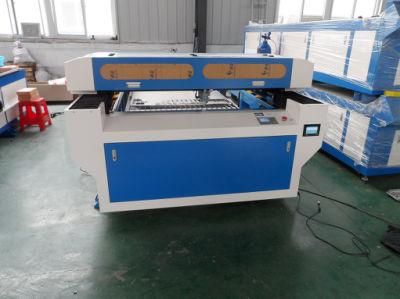

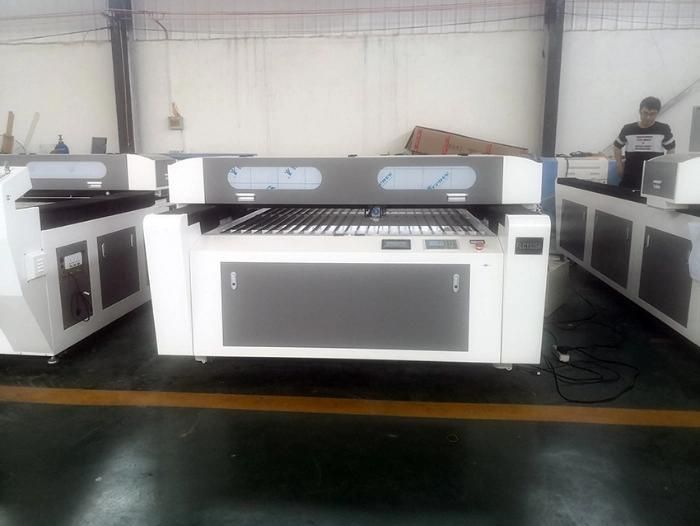

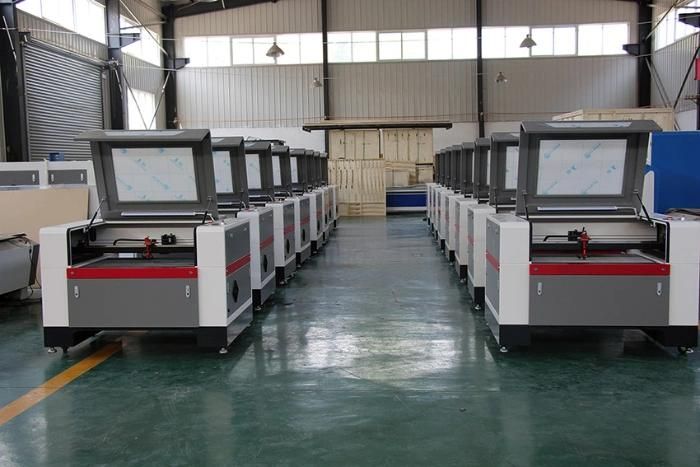

FLC1390A laser cutting machine with auto focus for metal nonmetals
Features:

    This laser cutter machine is the latest design with 150W-300W laser tube, it can cut metals such as stainless steel,carbon steel, also can cut non-metal such as acrylic,wood/MDF,leather, foam, plastic and etc. It is equipped with advanced laser controlling system with auto/live focus, if the metal sheet is not flat, the system can sense the distance from the nozzle to the material surface and follow the surface up and down to automatically adjust the certain focus distance to keep the highest precision cutting quality.

Application materials:
Stainless steel, carbon steel, Wood, bamboo, jade, ceramic, textile, garments, crystal, plastic, Color plates, Plexiglas, glass, acrylic, wood, paper, leather, cloth, rubber, marble, granite, tiles, shells and other non-metallic materials.

Application industries:
Mainly used for advertising industries ( stainless metal and carbon steel ), sheet metal industry (carbon steel ), packaging  industry (die board )and so on . steel industries,Plastic and rubber industry, ads/crafts/presents industry. Strumpet/machine components, leather cloth industry. Advertising logo signs, gifts, crystal ornaments, paper cutting techniques, relief, wood carving Jane. Printing plate, leather clothing, embroidery, decoration, frame making and other industrie


Specifications:

Model	FLC1390A mixed laser cutter
Working size	1300*900mm
Laser power	150w-300w
Cutting speed	0 - 50 mm/s
Reposition accuracy	±0.05mm
Working voltage	AC110- 220V±10%,50-60Hz
Consuming power	less than 1,000W
Working temperature	0 - 45°C
Working humidity	8 - 95%
Minimum letter size	English :1 x 1mm Chinese:2 x 2mm
Supported file format	BMP, HPGL, PLT, DST, DXP, and AI
Driving system	Stepper
Cooling system	CW-5000 chiller
Other auxiliary equipment	Exhaust-fans and air-exhaust pipe
Laser control software	DSP control system   Leetro
Compatible software	CorelDraw, AutoCAD, Photoshop
Laser tube type	Sealed CO2 glass laser tube

Machine size can be customsized according to needs:

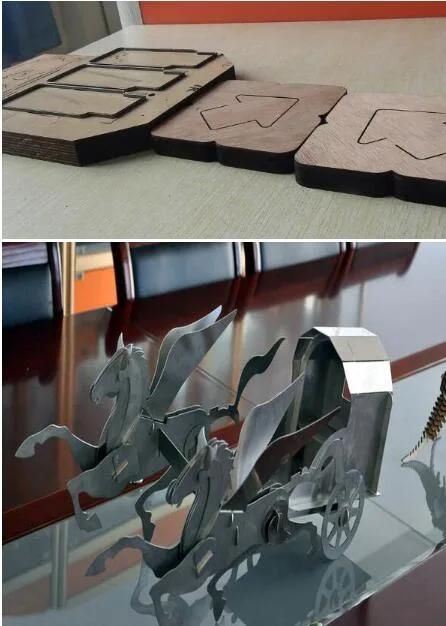

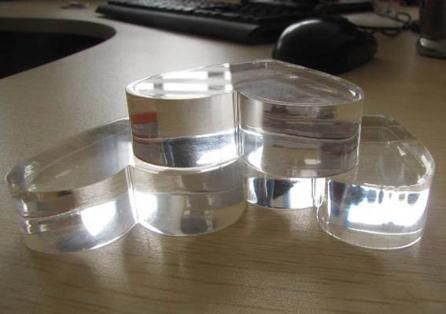

Samples Show:
