• Model NO.：HY-CF01
• Laser Source：Raycus, Jpt, Ipg,Reci
• Weading Head：Wobble Laser Welding Head
• Max. Power：300W,500W,750W,1000W ,1500W ,2000W,3300W
• Laser Wavelength：1024nm
• Laser Frenquency：50-5000Hz
• Welding Depth：0.80-5.0mm
• Welding Head：Wobble or Static
• Cooling Method：Water Chiller
• Wire Feeding System：Option ( 1.0mm-2.0mm)
• Power Requirement：220V,50Hz&60Hz 3800V,50Hz&60Hz
• Power Regulation：10-100%
• Power Instability：<3%
• Application Material：Stainless Steel, Carbon Steel Aluminum
• Product Name：Continuous Laser Welding Machine
• Overall Power Comsumption：<=2kw, 3kw,4 Kw
• Transport Package：Plywood Box
• Specification：CE FDA SGS ISO
• Trademark：HAIYI Laser
• Origin：Jiangsu,China
• HS Code：8515809090
• Production Capacity：1000sets,Year

Basic Info.

Model NO. HY-CF01 Laser Source Raycus/ Jpt/ Ipg/Reci Weading Head Wobble Laser Welding Head Max. Power 300W/500W/750W/1000W /1500W /2000W/3300W Laser Wavelength 1024nm Laser Frenquency 50-5000Hz Welding Depth 0.80-5.0mm Welding Head Wobble or Static Cooling Method Water Chiller Wire Feeding System Option ( 1.0mm-2.0mm) Power Requirement 220V/50Hz&60Hz 3800V/50Hz&60Hz Power Regulation 10-100% Power Instability <3% Application Material Stainless Steel, Carbon Steel Aluminum Product Name Continuous Laser Welding Machine Overall Power Comsumption <=2kw, 3kw,4 Kw Transport Package Plywood Box Specification CE FDA SGS ISO Trademark HAIYI Laser Origin Jiangsu/China HS Code 8515809090 Production Capacity 1000sets/Year

Product Description

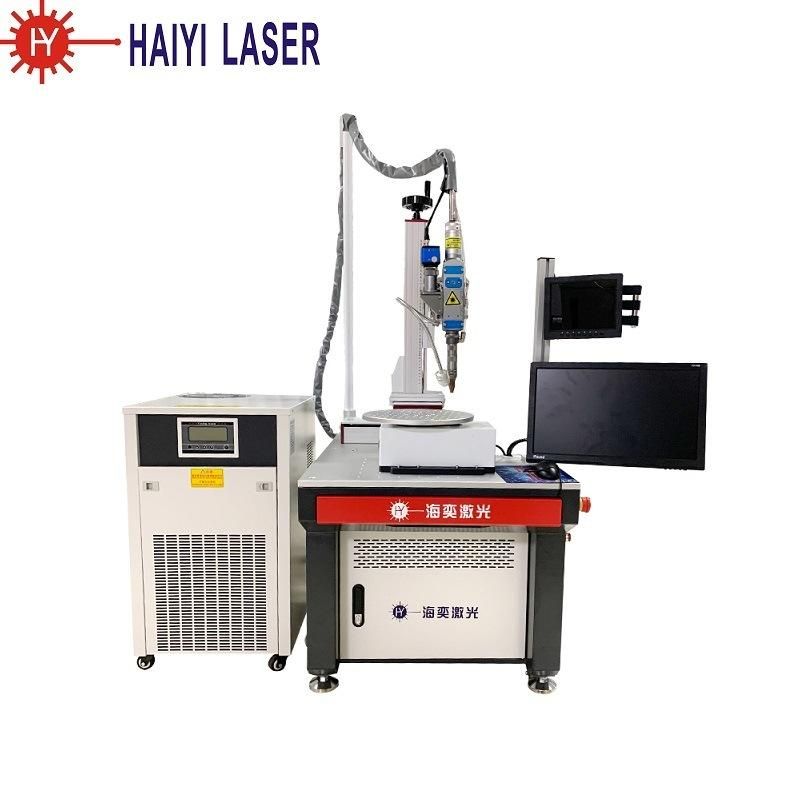

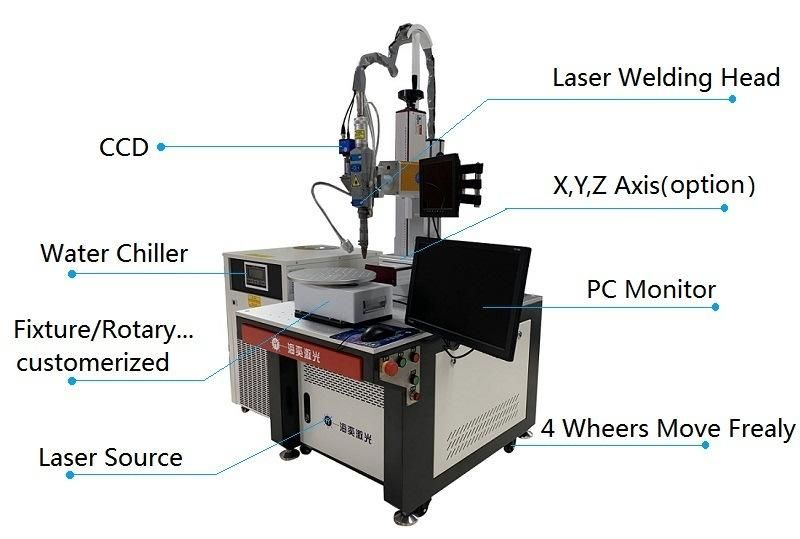

  Fiber Laser Welding Machine 1.PRODUCT DESCRIPTION :

Laser welding a high efficient precision welding method which is in the use of high energy density laser beam as a heat source . Laser welding is one of the important aspects of laser processing technology. Laser radiates and heats the workpiece surface, The surface heat diffuses to the inside through heat conduction, Then the laser makes the workpiece melting and form the specific welding pool by controlling the laser pulse width, energy, peak power and repetition frequency. Due to its unique advantages, it has been successfully applied to the precise welding for micro parts and small parts.

2. APPLICATION :

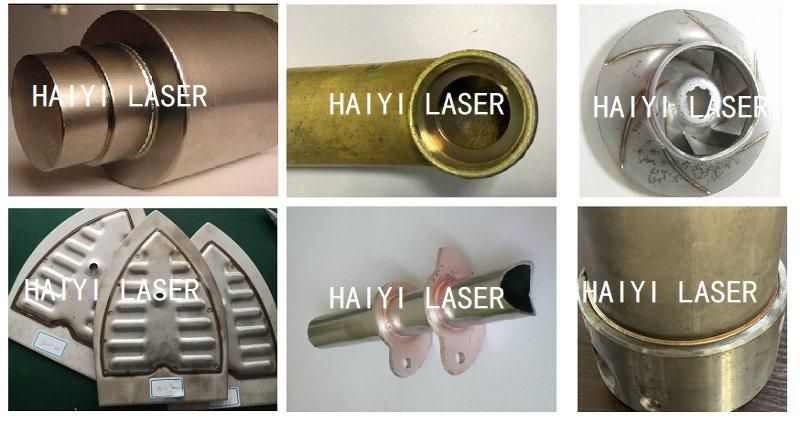

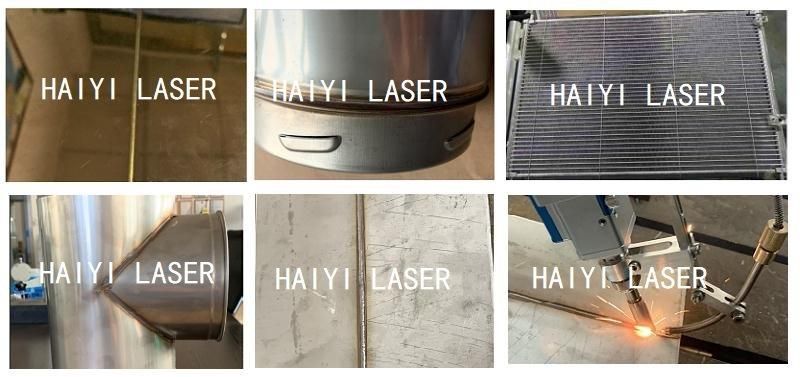

Laser Welding Machine is widely used in mobile phone battery shell, houshold appliances,electronic components, mobile communication, hardware products, automotible accessories, glasses, kitcen industry , advertisement, stainless aluminum windows and doors, medical equipment, thermal cups and etc. other industries.





3.SPECIFICATION :

Model	HY-CF01
Laser Power	300W/500W/750W/1000W/1500W/2000W/3300W
Laser Wavelength	1064nm
Laser Frenquency	50-5000HZ
Power Adjustment	10-100%
Welding Depth	0.2-5mm
Cooling Method	Water Chiller
Spot Size	1.2-4.0mm (option)
Wobble Head	Option
Power Instability	<3%
Power requirement	220V/ 50&60HZ; 380V/50&60HZ (above 1500W)
Overall Power Consumption	<1KW,2KW, 3KW,4KW
Over Size(L*W*H)	1100*550*1300mm
feeding wire's dimension	1.0-4.0mm(SS, Aluminum, Brass)
Gross Weight (Net Weight)	290KG/300KG

4.Advangtages :
A.  The machine is easy to handle and don't need the professional welder.
B.  High quality and very stable, can work 24 hours continuouly.
    With a long lifespan to 100000 hours and free of maintance.
C. High efficiency: more than 5 times of the TIG welding with low energy consumption.
D. Various welding proceses: jam welding, seal welding, spot welding, stitch welding and overlap welding .
E:Inappreciable heat-affected zone, little deformation good-looking smoothly welding seam.

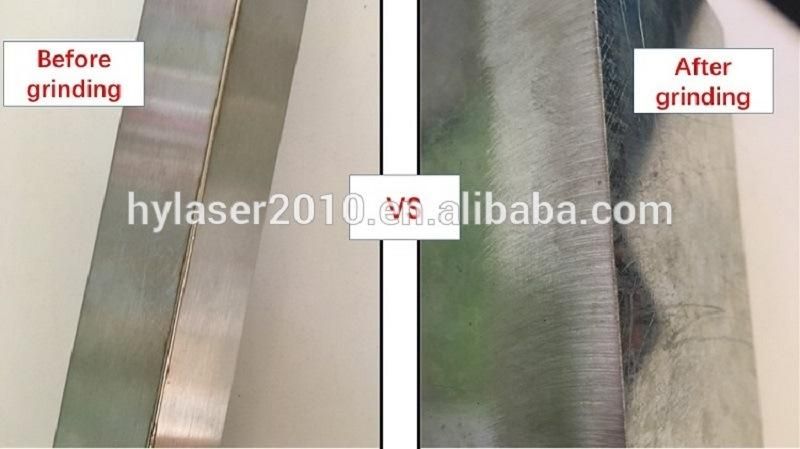

F. Little remedial work after welding, high-quality of welding line, precise control of positioning accuracy, small  spot focus and automated welding
G: Low cost, no consumables, energy saving and enviroment protection.
H: Can support the different welding wires for stainless steel, Aluminum, Iron,Copper
5. OUR SERVICE :
1.  1 year Guarantee  for the whole machine.
2. 12 months Guarantee and free spare parts supply during this period.
3. 24 hours on line service
4. 3-7 days lead time
5. We will provide the Instruction Book, Operational manual and Training Video
6. Provide technical support for the whole lifetime on line
7. TT/Ali Trade Assurance payment
8. Shipping By air, DHL, Sea.
6.ABOUT US :







7.FAQ:
Q1. How to select the suitable machine?
Tell us your material, detail requirements by words, pictures or video.
We will recommend you the suitable model with the reasonable price.

Q2. How about the lead time?
For the standard machine, the delivery time is 3-7 days after the payment.
For the non-standard machine, the delivery time is 7-15 days after the payment.

Q3. How to install and use it?
We have the instruction Book, Operational manual and Training Video inside the machine.
We also can provide the training on line by free.

Q4. How to do it if we meet the issue during the operation?
You can send the wrong information to us by mail, we can help us solve it by mail.
phone, or video communication.

Q5. If we want to learn how to operate the machine, Can you provide it?
Yes, we can. We can provide the on line training by video. We also provide free training
course in our company.

Q6. Do you provide the onsite service if we needed?
Yes. We can provide the onsite service if you needed. But need the customer pay for the transport, hotel, food and 60USD/day.
