• Model NO.：HY-WM01
• Single Pulse Max. Energy：90j,120j
• Position System：CCD or Microscope
• Max. Power：200W,400W
• Laser Wavelength：1064nm
• Laser Frenquency：50-100Hz
• Welding Depth：0.10-3.0mm
• Welding Head：Wobble or Static
• Cooling Method：Water Chiller
• Wire Feeding System：Option ( 0.2mm-0.80mm)
• The Pulse Width：0.5-20ms
• Std. Table Travel：300mm*200mm
• Power Requirement：220V,50Hz&60Hz,40A 3800V,50Hz&60Hz,40A
• Application Material：Mold Repair, Metal Parts Welding
• Product Name：Mold Repair Laser Welding Machine
• Overall Power Comsumption：<=6kw,8kw
• Transport Package：Plywood Box
• Specification：CE FDA
• Trademark：HAIYI Laser
• Origin：Jiangsu,China
• HS Code：8515809090
• Production Capacity：1000sets,Year

Basic Info.

Model NO. HY-WM01 Single Pulse Max. Energy 90j/120j Position System CCD or Microscope Max. Power 200W/400W Laser Wavelength 1064nm Laser Frenquency 50-100Hz Welding Depth 0.10-3.0mm Welding Head Wobble or Static Cooling Method Water Chiller Wire Feeding System Option ( 0.2mm-0.80mm) The Pulse Width 0.5-20ms Std. Table Travel 300mm*200mm Power Requirement 220V/50Hz&60Hz/40A 3800V/50Hz&60Hz/40A Application Material Mold Repair, Metal Parts Welding Product Name Mold Repair Laser Welding Machine Overall Power Comsumption <=6kw/8kw Transport Package Plywood Box Specification CE FDA Trademark HAIYI Laser Origin Jiangsu/China HS Code 8515809090 Production Capacity 1000sets/Year

Product Description

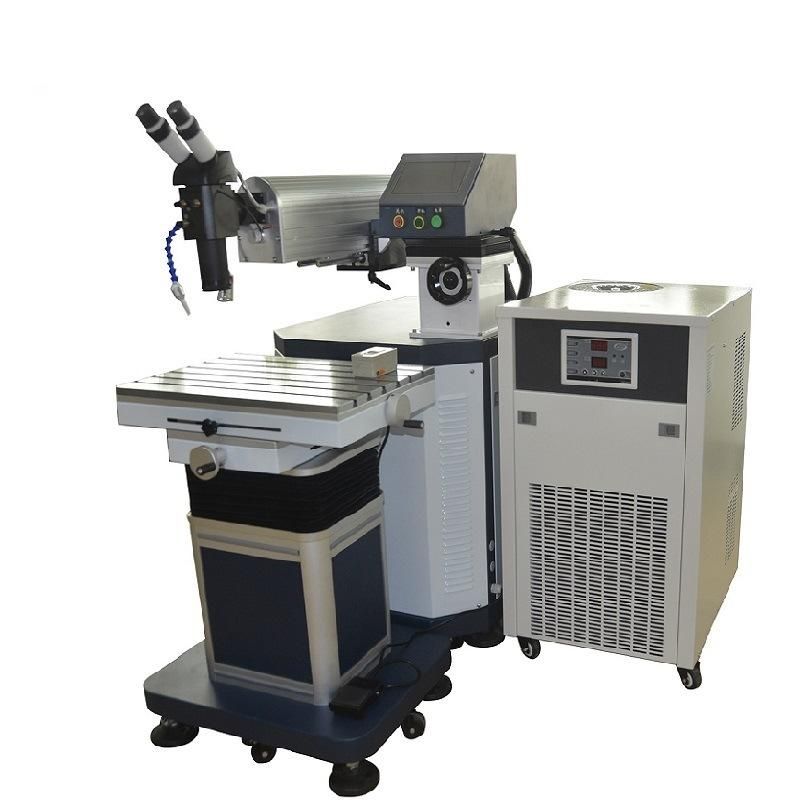

 Mold Repair Laser Welding Machine 1.PRODUCT DESCRIPTION :

    Weld with the special welding wire to the damaged parts of the die through the instantaneous high heat energy generated by the laser, and firmly weld with the original base material. After welding, it is processed into a smooth surface by EDM or grinding, so as to repair the die.

2. APPLICATION :

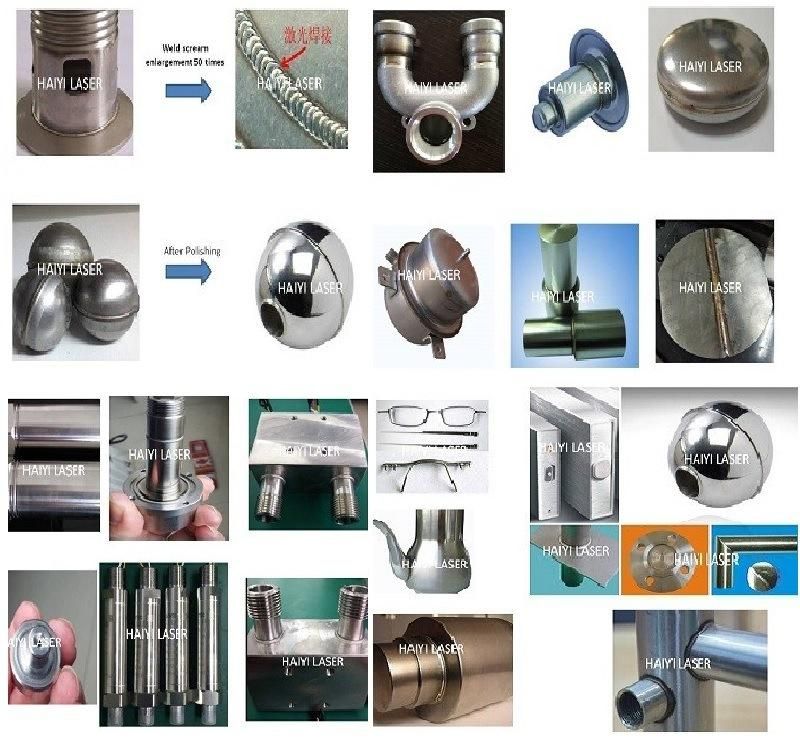

    Widely used in die repair and metal parts repair, can weld a variety of die materials: S136, NAK80, 718, 738, P20, SKD-11, SKD-61, H13, W302, GS2344, GS2343, GS2082, etc.




3.SPECIFICATION :

Model	HY-WM200W/HY-WM400W
Laser Power	200W/400W
Laser Wavelength	1064nm
Laser Frenquency	<=50HZ/100HZ
Power Adjustment	10-100%
Welding Depth	0.2-4.0mm
Cooling Method	Water Chiller
Laser Welding Depth	2mm/3mm
Positioning System	Microscope or CCD
Feeding Wires' Dimenson	0.2-0.8mm
Power requirement	220V/50HZ/60HZ/40A, 380V/50HZ/60HZ/40A
Overall Power Consumption	<6KW, 8KW
The Overall Size(L*W*H)	WLH (110*60*150cm)
Gross Weight	300KG

4.Advangtages :
Laser welding is to irradiate a high energy density laser beam on two parts of the material, so that the local heating melt, and then cooling and solidification into one. Compared with traditional welding technology, laser welding has the following advantages:
1. Small heat-affected zone of laser repair welding will not lead to deformation of precision die, large welding depth, strong welding, sufficient melting, no repair marks, no depression in the joint of molten pool melt bump and matrix.
2. With a special microscope observation system for cross cursor, the magnification can be adjusted to achieve precise alignment.

5. OUR SERVICE :
1.  1 year Guarantee  for the whole machine.
2. 12 months Guarantee and free spare parts supply during this period.
3. 24 hours on line service
4. 3-7 days lead time
5. We will provide the Instruction Book, Operational manual and Training Video
6. Provide technical support for the whole lifetime on line
7. TT/Ali Trade Assurance payment
8. Shipping By air, DHL, Sea.
6.ABOUT US :







7.FAQ:
Q1. How to select the suitable machine?
Tell us your material, detail requirements by words, pictures or video.
We will recommend you the suitable model with the reasonable price.

Q2. How about the lead time?
For the standard machine, the delivery time is 3-7 days after the payment.
For the non-standard machine, the delivery time is 7-15 days after the payment.

Q3. How to install and use it?
We have the instruction Book, Operational manual and Training Video inside the machine.
We also can provide the training on line by free.

Q4. How to do it if we meet the issue during the operation?
You can send the wrong information to us by mail, we can help us solve it by mail.
phone, or video communication.

Q5. If we want to learn how to operate the machine, Can you provide it?
Yes, we can. We can provide the on line training by video. We also provide free training
course in our company.

Q6. Do you provide the onsite service if we needed?
Yes. We can provide the onsite service if you needed. But need the customer pay for the transport, hotel, food and 60USD/day.
