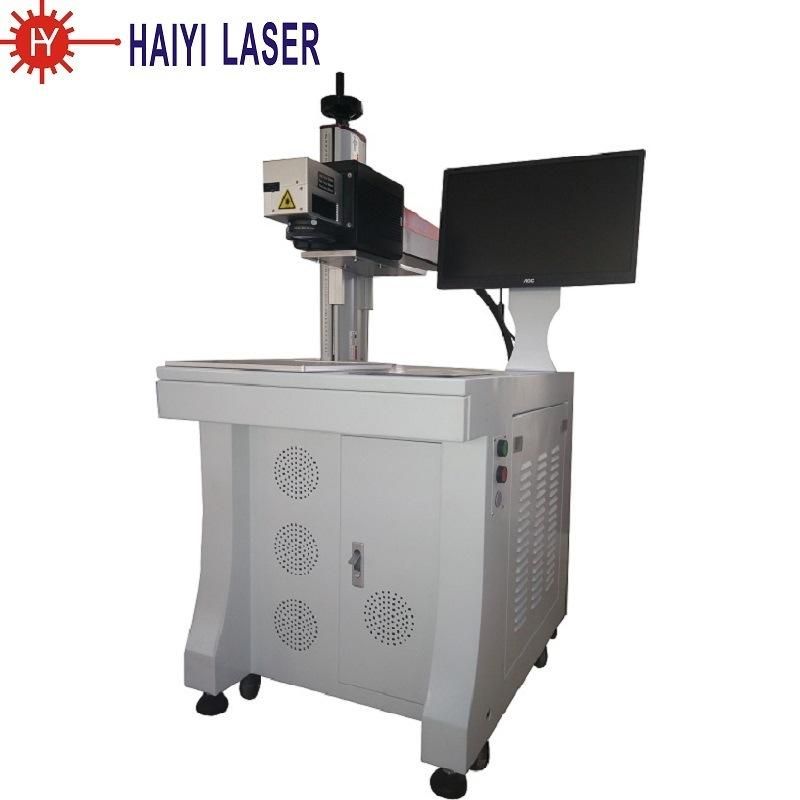

High Precision Desktop Laser Engraving Machine CNC Laser Printer for Metal Plastic Rubber
SuZhou HaiYi Laser Technology Co., Ltd.- After-sales Service：on-Line and on-Site Service
- Application：Biomedicine, Electronic Industry, Automotive Industry, Powder Metallurgy, Manufacturing Industry
- Technical Class：Continuous Wave Laser
- Control：Automatic
- Power Density：Fiber Laser
- Laser Classification：Optical Fiber Laser
Base Info
- Model NO.：HY-MFB05
- Type：Fiber Laser
- Laser Source：Raycus, Jpt, Ipg
- Max. Power：30W,50W,60W,70W ,100W,120W
- Laser Wavelength：1024nm
- Laser Frenquency：20-80Hz
- Marking Depth：<=0.3mm
- Cooling Method：Air Cooling
- Power Requirement：220V,50Hz&60Hz
- Power Regulation：10-100%
- Application Material：Metal and Most of Nonmetal
- Product Name：3D Dynamic Laser Marking Machine
- Overall Power Comsumption：<=500W
- Std. Marking Area：300*300mm,400*400mm, 500*500mm,600*600mm,700*700mm
- Option Marking Area：1200*1200mm; 2400*2400mm
- Life Span：100000 Hours
- Marking Speed：<=7000mm,S
- Transport Package：Plywood Box
- Specification：CE FDA ISO
- Trademark：HAIYI Laser
- Origin：Jiangsu,China
- HS Code：8456110090
- Production Capacity：1000sets,Year
Description
3.SPECIFICATION :
| Model | HY-MFB05 |
| Laser Power | 20W/30W/50W/60W/100W |
| Laser Wavelength | 1064nm |
| Laser Frenquency | 50-5000HZ |
| Standard Marking range | 100mm*100mm |
| Marking Method | XYZ three axises |
| Cooling Method | Air Cooling |
| Option Marking range | 180mm*180mm |
| Marking Depth | <=0.3mm |
| Marking Speed | <=7000mm/s |
| Minimum line width | 0.01mm |
| Repeatability accuracy | ±0.002mm |
| Electricity requirement | 220V/50Hz/60Hz |
| the whole Power consumption | 500W |

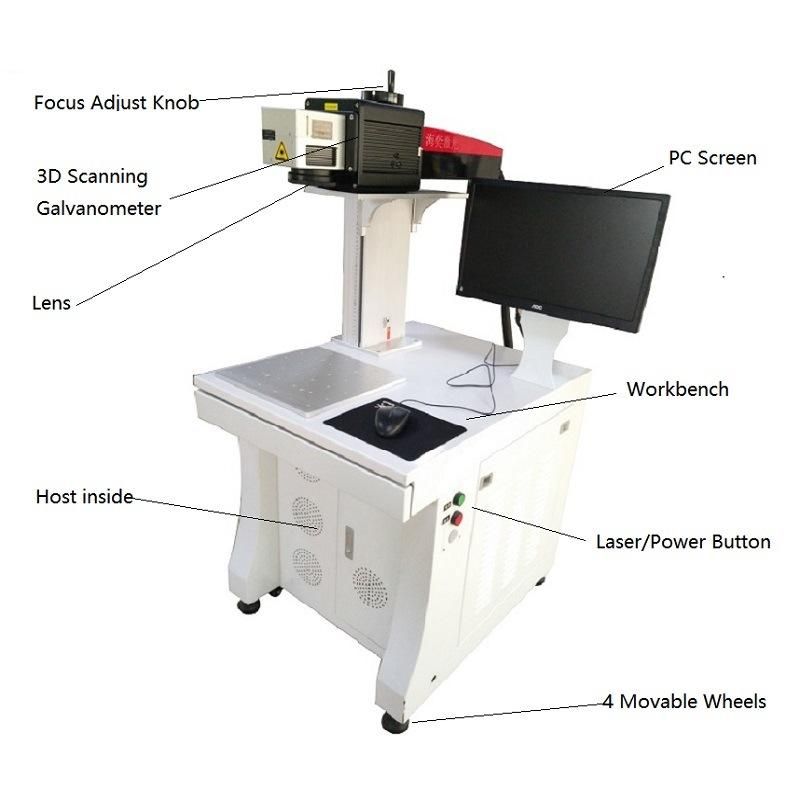

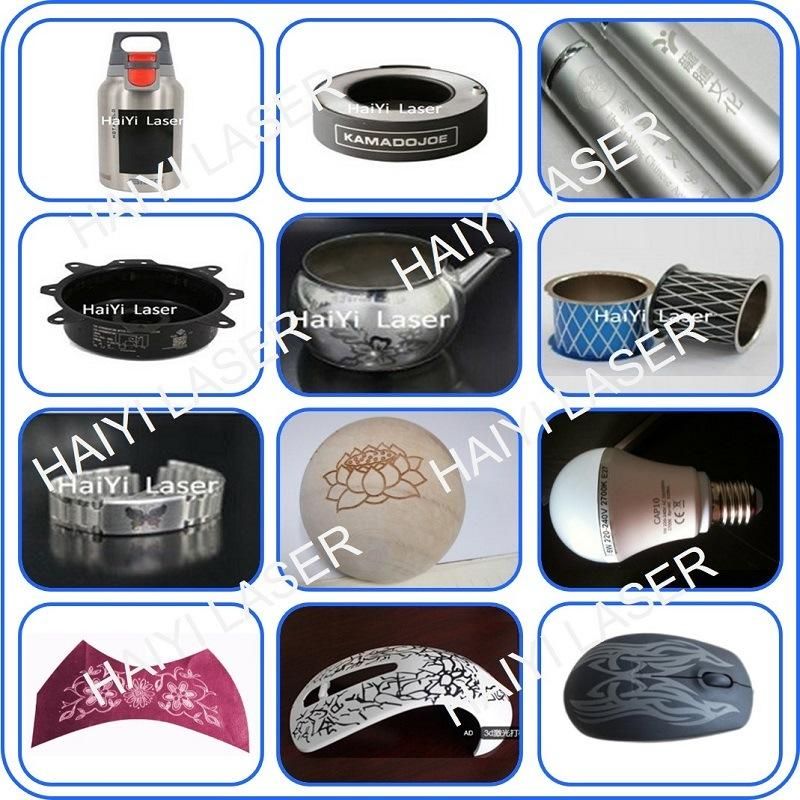

A. High-speed, high precision 3D galvo and can engrave on any curved work pieces.
B. Can mark with a large area at one time.
C. High quality and very stable: With a long lifespan to 100000 hours and free of maintance.
D. For the deep engraving with good effect and high efficiency.
E: Low cost, no consumables, energy saving and enviroment protection.
F: with friendly operation interface, It can support for many file formats, such as dxf,plt,cnc,step,iges,etc.
5. OUR SERVICE :
1. 1 year Guarantee for the whole machine.
2. 12 months Guarantee and free spare parts supply during this period.
3. 24 hours on line service
4. 3-7 days lead time
5. We will provide the Instruction Book, Operational manual and Training Video
6. Provide technical support for the whole lifetime on line
7. TT/Ali Trade Assurance payment
8. Shipping By air, DHL, Sea.
6.ABOUT US :
7.FAQ:
Q1. How to select the suitable machine?
Tell us your material, detail requirements by words, pictures or video.
We will recommend you the suitable model with the reasonable price.
Q2. How about the lead time?
For the standard machine, the delivery time is 3-7 days after the payment.
For the non-standard machine, the delivery time is 7-15 days after the payment.
Q3. How to install and use it?
We have the instruction Book, Operational manual and Training Video inside the machine.
We also can provide the training on line by free.
Q4. How to do it if we meet the issue during the operation?
You can send the wrong information to us by mail, we can help us solve it by mail.
phone, or video communication.
Q5. If we want to learn how to operate the machine, Can you provide it?
Yes, we can. We can provide the on line training by video. We also provide free training
course in our company.
Q6. Do you provide the onsite service if we needed?
Yes. We can provide the onsite service if you needed. But need the customer pay for the transport, hotel, food and 60USD/day.
