• Model NO.：FLC1520
• Laser Technology：Laser Control Fault Cutting
• Working Area：1500*2000mm
• Laser Power：180W
• Transport Package：Wood
• Specification：1520
• Trademark：FLYING
• Origin：China
• HS Code：8456110090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. FLC1520 Laser Technology Laser Control Fault Cutting Working Area 1500*2000mm Laser Power 180W Transport Package Wood Specification 1520 Trademark FLYING Origin China HS Code 8456110090 Production Capacity 100PCS/Month

Product Description

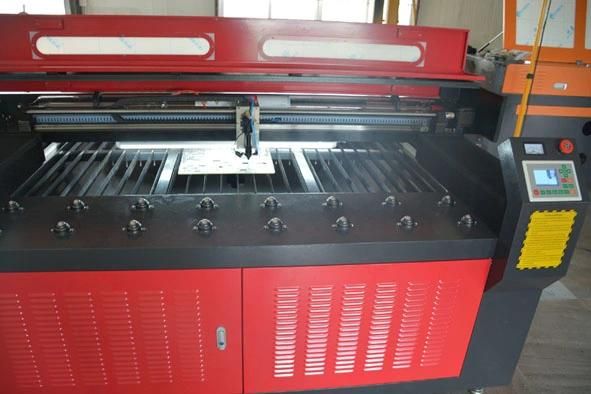

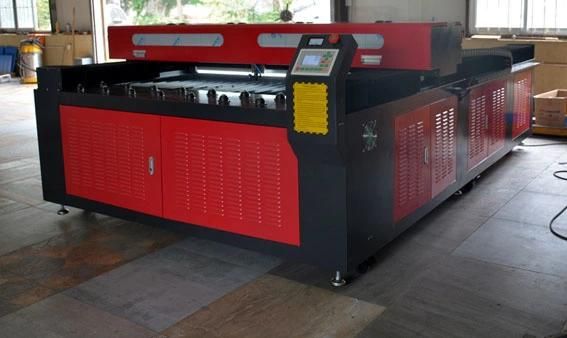

High precison Ballscrew cnc laser professional for wood acrylic 1520


 Features:

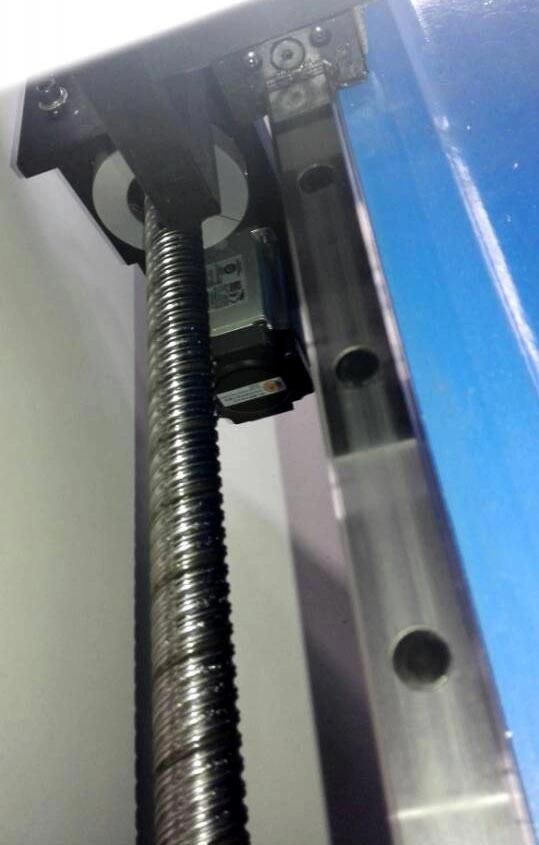

   Eqipped with high power laser tube, advanced DSP controller, Imported high precision Hiwin rails with dust cover, High Speed 3-phrase motors, imported ball-screw transmission, it can do perfect cutting for nonmetals such as wood, acrylic. It is suitable for those insturies who have higher requirement for cutting jobs. It has Universal conveying balls on the table, which is convenient for the operators to put materials sheet.

Specifications:

Model	FLC1520/FLC1325
Laser-type	10.6um CO2 glass laser tube w/ water-cooling
Laser power	80W-300W
Working area	1500*2500mm or 1300*2500mm
Max Engraving speed:	0-50, 000mm/min
Max cutting speed	0-24, 000mm/min
Laser output control	1-100% software setting
Location precision	Less than 0.01mm
Highest scanning precision	2500DPI
Operating temperature	0 - 45
Operating humidity	5- 95% non-condensing
Minimum shaping character	English 1.0 x 1.0mm
Graphic format supported	HPGL, BMP, JPEG, PLT, DST, DXF, and AI ...
Driving system	Stepper
Cooling mode	Water-cooling and protection system
Auxiliary equipments	Exhaust-fans, air-exhaust pipe, air pump, chiller
Controller	DSP
Compatible Software	CorelDraw, AutoCAD, Photoshop, TAJIMA
Slope Engraving	Can be easily designed within the "Grade Engrave" function.
Color separation	Uses color property to set function, speed, and laser power

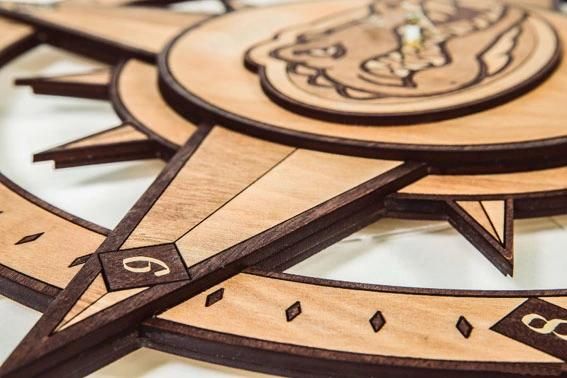

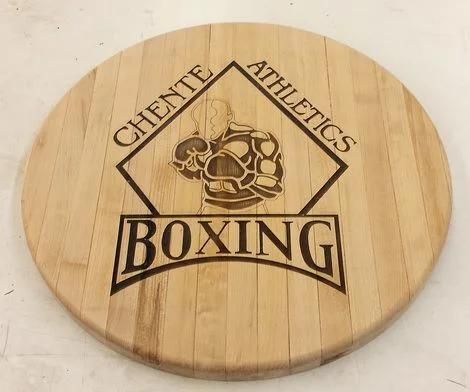

Applicable materials:
wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.

Applicable industries:
advertisement, arts and crafts, shoes, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry.
