• Model NO.：MLF-50W
• Applicable Material：Metal
• Cooling System：Air Cooling
• Technical Class：Pulse Laser
• Laser Wavelength：Fiber Laser
• Laser Classification：Solid Laser
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Product：Fiber Laser Metal Cutting Machine
• Control Software：Ezcad Software
• Marking Method of Metal Cutting Machine：Scanning Marking
• Machine Type of Metal Cutting Machine：Portable and Standard Laser Marking Machine
• Laser Source of Metal Cutting Machine：Fiber Laser
• Metal Cutting Machine Laser Brand：Ipg,Raycus,Jpt,Mopa for Your Choose
• Metal Cutting Machine Marking Speed：8000mm
• Minimum Marking Character：0.1X0.1mm
• Application Function：Marking,Engraving,Cutting,Printing
• Operating Voltage：AC110V 60Hz, AC220V 50Hz
• Transport Way：by Sea, Express, Train, Air, Truck
• Certification：CE , FDA, RoHS
• Transport Package：Plywood Package-Standard Export Package
• Specification：Working area 150*150mm, 200*200mm, 300*300mm
• Trademark：Minglan
• Origin：China
• HS Code：8456110090
• Production Capacity：5000000 Sets Per Year

Basic Info.

Model NO. MLF-50W Applicable Material Metal Cooling System Air Cooling Technical Class Pulse Laser Laser Wavelength Fiber Laser Laser Classification Solid Laser Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Product Fiber Laser Metal Cutting Machine Control Software Ezcad Software Marking Method of Metal Cutting Machine Scanning Marking Machine Type of Metal Cutting Machine Portable and Standard Laser Marking Machine Laser Source of Metal Cutting Machine Fiber Laser Metal Cutting Machine Laser Brand Ipg/Raycus/Jpt/Mopa for Your Choose Metal Cutting Machine Marking Speed 8000mm Minimum Marking Character 0.1X0.1mm Application Function Marking/Engraving/Cutting/Printing Operating Voltage AC110V 60Hz, AC220V 50Hz Transport Way by Sea/ Express/ Train/ Air/ Truck Certification CE / FDA/ RoHS Transport Package Plywood Package-Standard Export Package Specification Working area 150*150mm/ 200*200mm/ 300*300mm Trademark Minglan Origin China HS Code 8456110090 Production Capacity 5000000 Sets Per Year

Product Description

10W 20W 30W 50W 60W 70W 80W 100W Deep Engraving/Fiber Laser Marking Machine/Metal Cutting Machine on Metal
There are two types fiber laser marking machine for your choose as follow,

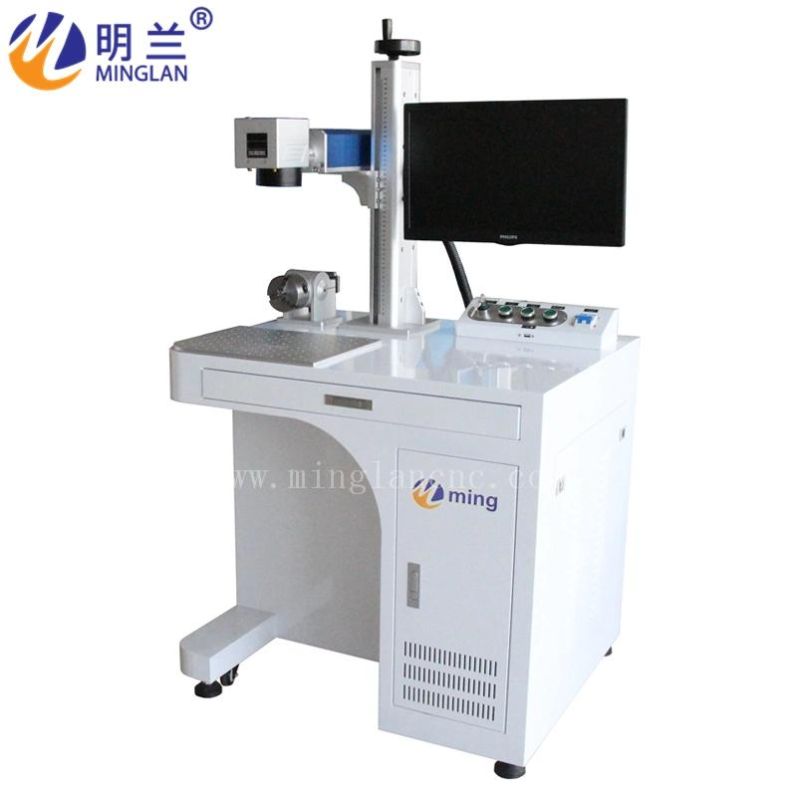

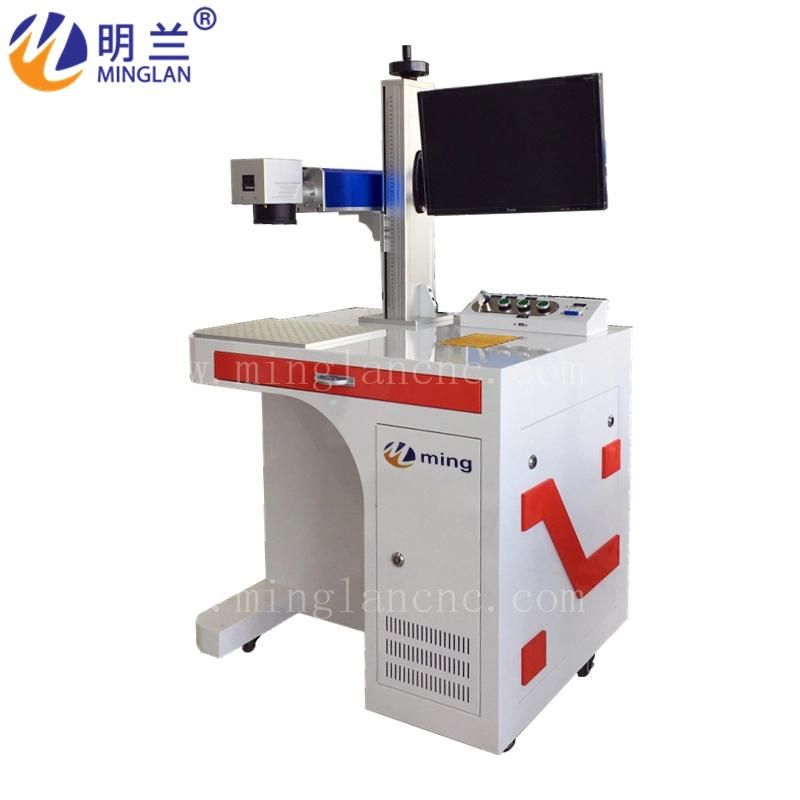

Type A, standard fiber laser marking machine,

Fiber/CO2/UV Laser Engraving Machine/Laser Marker Machine/Engraving Equipment/Logo Printing Machine Laser Marking Machine for Metal/Plastic/Wood

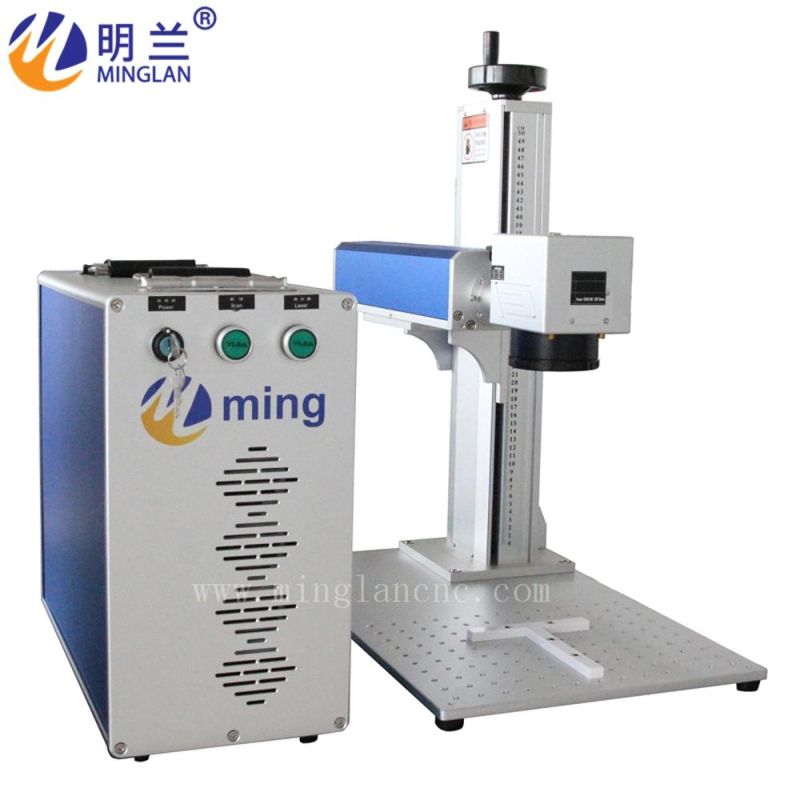

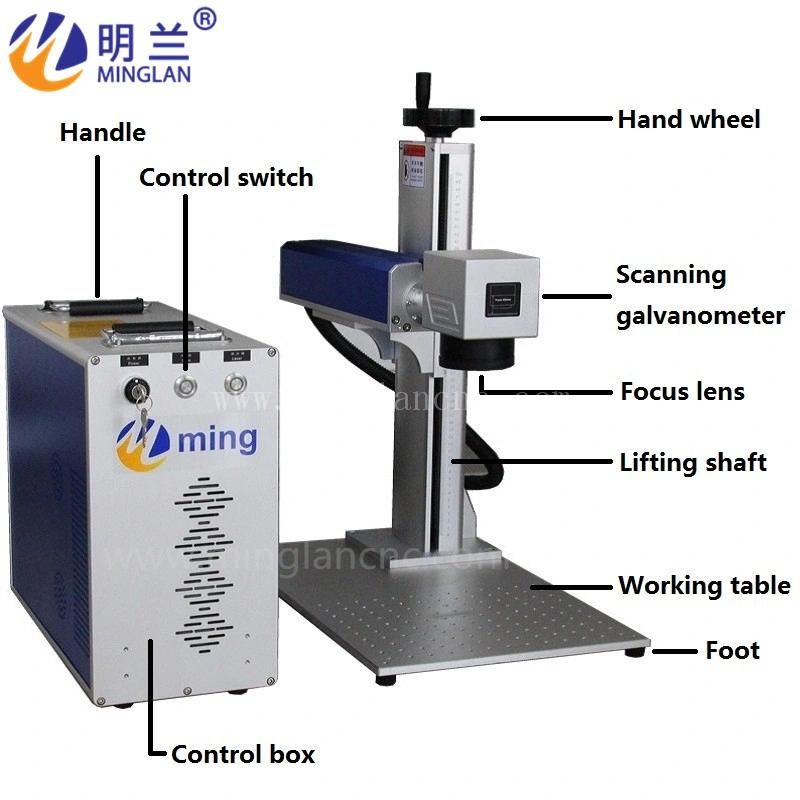

Type B portable fiber laser marking machine,

Applicable Industries of Fiber laser marking machine:
Fiber laser marking machine is suitable for processing fields that need high marking depth, smoothness and accuracy.

Fiber laser marking machine is widely used in: mobile phones buttons, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, medical device industry, glasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.

Electronic Components	Resistance, capacitance, chips, printed crcuit boards, computer keyboard
Apparatus And Meter	Panel signs, precision equipment,etc
Instrument	Panel signs nameplate, precision equipment, etc
Hardware Tools	Knives, tools,measuring tools, cutting tools, etc
Automobile Parts	Fistons, piston rings, gears, shafts, bearings, clutch, lights, etc
Mechanical Parts	Bearings, gears,standard parts, motors, etc
Daily Necessities	Handicrafts, zipper,key holder, sanitary ware, etc
Jewelry Rings	Jewelry, gold, silver, etc
Food,drinking packing	Plastic, packings, etc

Compared with the traditional mechanical marking, chemical corrosion, screen printing, printing ink etc., Fiber laser marking machine carving has the advantages of low cost, high flexibility, environmental protection; It's easy to control and operation by the computer system. The laser beam on the workpiece surface generated by the strong permanent marker is its outstanding characteristic.

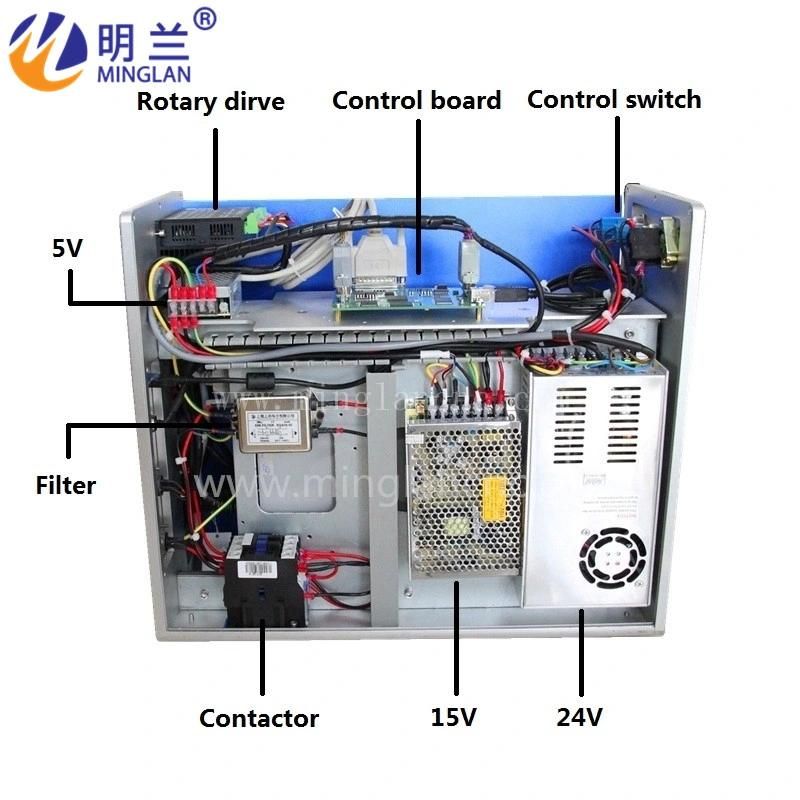

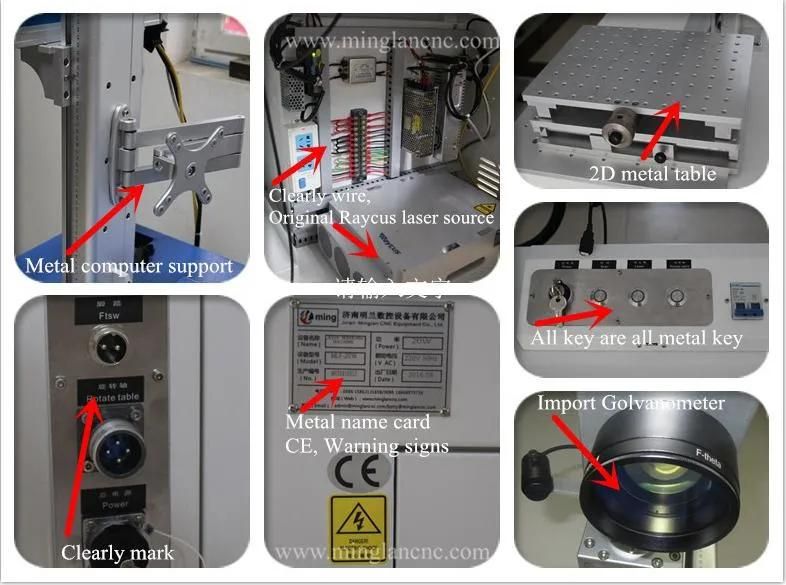

Details of Minglan fiber laser marking machine:

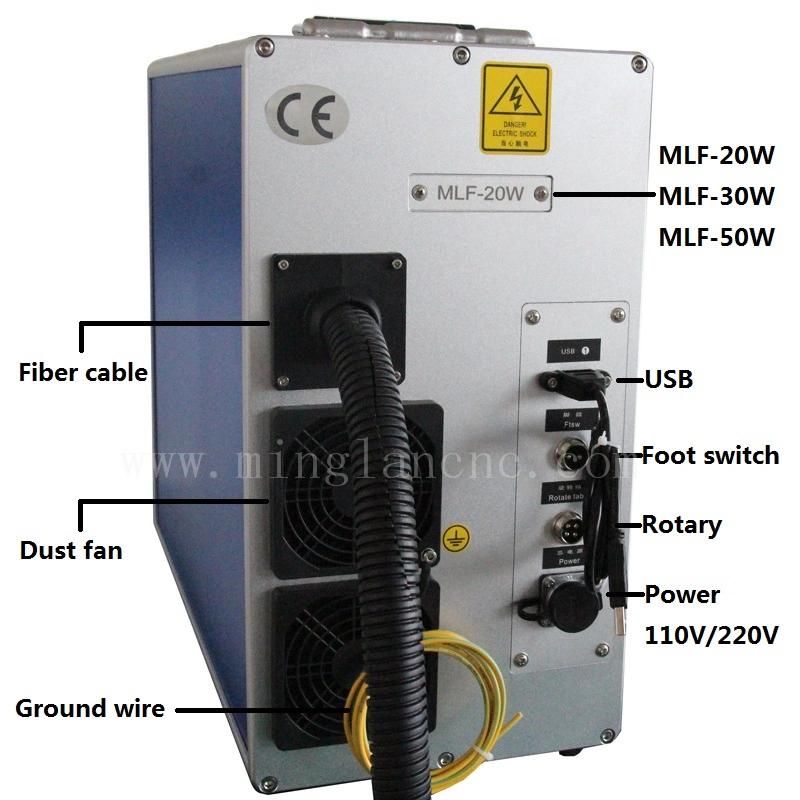

All aluminum control box,
All aluminum galvanometer

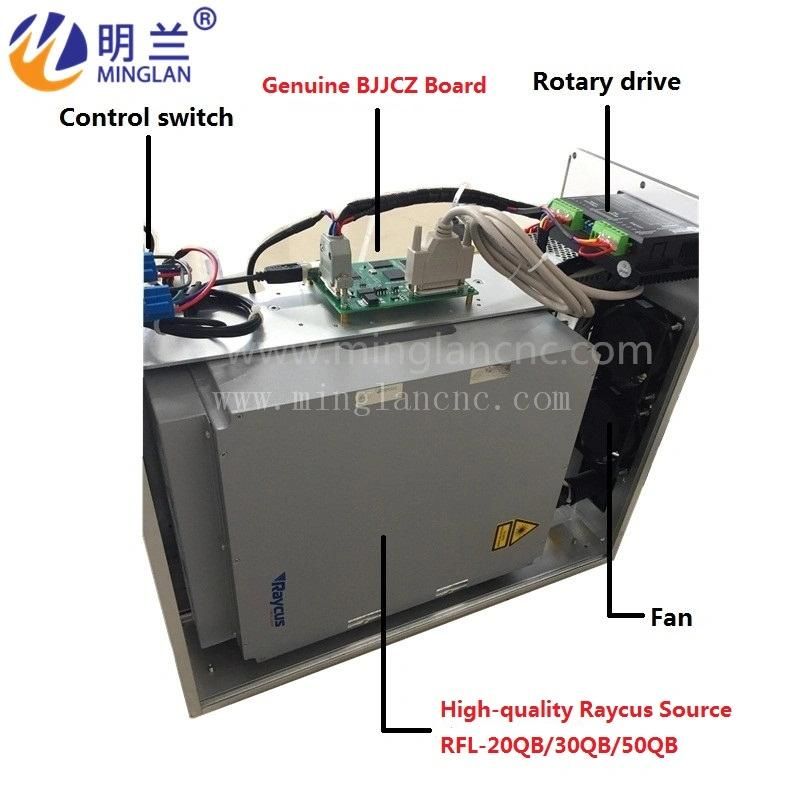

Use BJJCZ LMCV4-FIBER-M control card, EZCAD 2.14.10, Support WIN10 32bit
Use Raycus High quality 20QB/30QB/50QB laser source
Double pump source (using two high-power pump sources), optical fiber and coupler are imported components. Long life and high stability
Specifications of Fiber laser marking machine:

Model	MLF-20W/ MLF-30W/ MLF-50W/MLF-100W
Laser power	20W/30W/50W/100W
Working area	110*110mm/150*150/200*200mm/300*300mm
Laser Wavelength	1064nm
Response time	0.5ms
Frequency of pulse	20-100KHz
Max marking depth	≤0.1mm
Marking speed	0-18000mm/s
Marking lines	1-10 lines(in the marking area)
Minimum line width	0.1mm
Marking content	Text,pattern,date,bar code,etc
Minimum character	0.3mm*0.3mm
Repeatability accuracy	±0.002mm
Resolution ratio	0.1mm
Graphic format supported	bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc.
Unit power	≤1.2KW
Operation system	Microsoft Windows XP or Windows 2000
Control software	China FLY Leopard flying marking control software or laser2.1 marking control software
Operation temperature	5ºC-40ºC
Relative moisture	≤ 90%,no fog
Supply Voltage	220V/110V 50Hz
Cooling method	Air cooling (100w: Water Cooling)

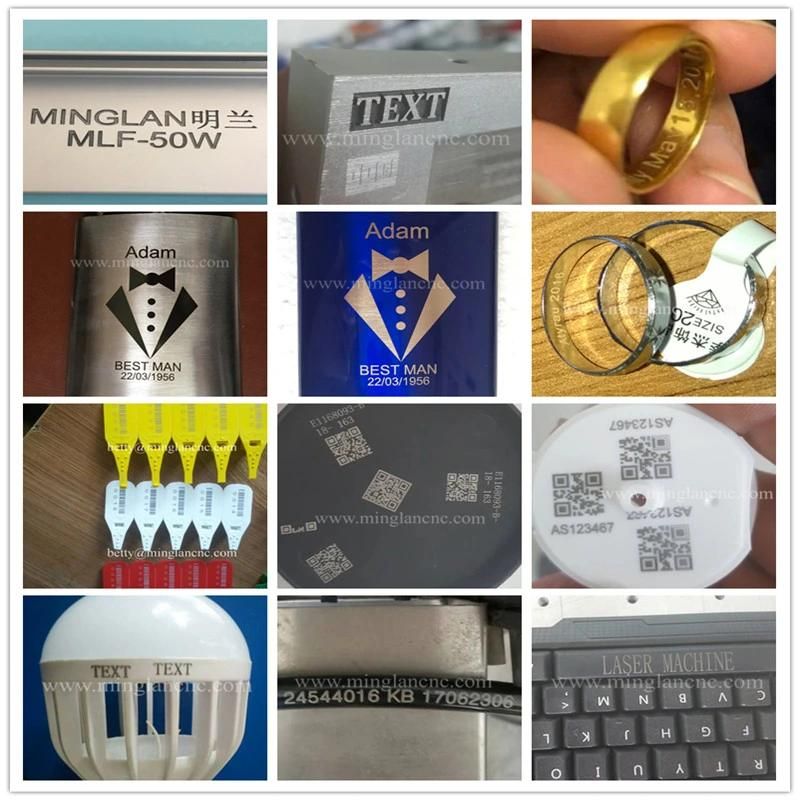

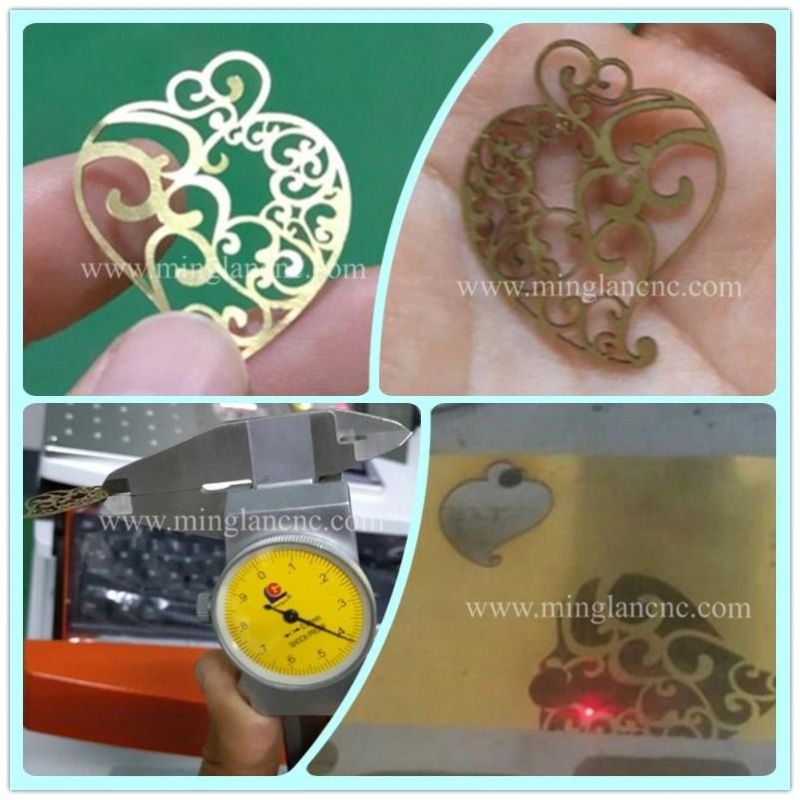

Samples photos of Fiber laser marking machine:

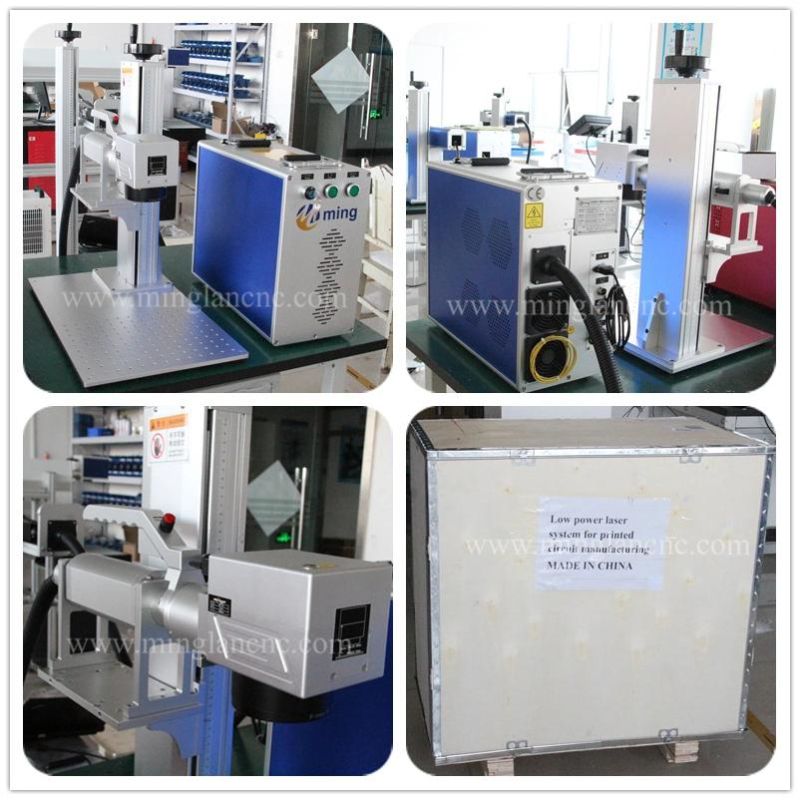

Package of Fiber laser marking machine:
Standard export package, plywood package, could perfect protect machine.

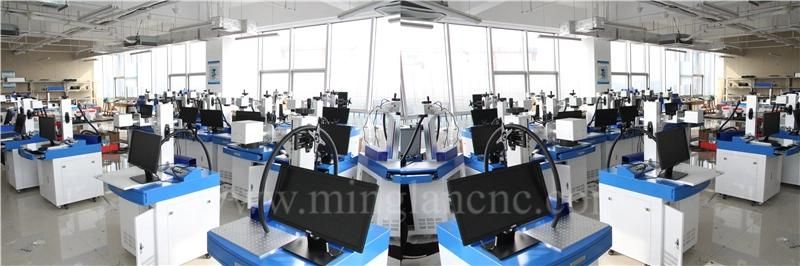

Our laser marking machine plant:

Customers visit us:
Good feedback from customers:

Our service of Fiber laser marking machine,
Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;

During sale:
We would deal with all the production and shipping affairs, after everything is ready,we would tell you everything goes well here;

After sale:
1.We would provide English Version working manual.

2.If you have any questions during using and maintaining,our engineers who could speak very good English would answer you online or by calls.

3.Machine warranty is 2 years, Raycus source is 2 years.
So if your machine has any unintentional damages,we would provide parts for free.

4.If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.

5. Could be remote control, if you need.

Thank you for reading !
