• Model NO.：FLC1325
• Laser Technology：Laser Control Fault Cutting
• Control Mode：CNC
• Laser Type：CO2
• Laser Power：80W,100W,130W,150W
• Working Area：1300*2500mm
• Transport Package：Wood
• Specification：CE
• Trademark：Flying
• Origin：China
• HS Code：84561000
• Production Capacity：100PC,Month

Basic Info.

Model NO. FLC1325 Laser Technology Laser Control Fault Cutting Control Mode CNC Laser Type CO2 Laser Power 80W/100W/130W/150W Working Area 1300*2500mm Transport Package Wood Specification CE Trademark Flying Origin China HS Code 84561000 Production Capacity 100PC/Month

Product Description

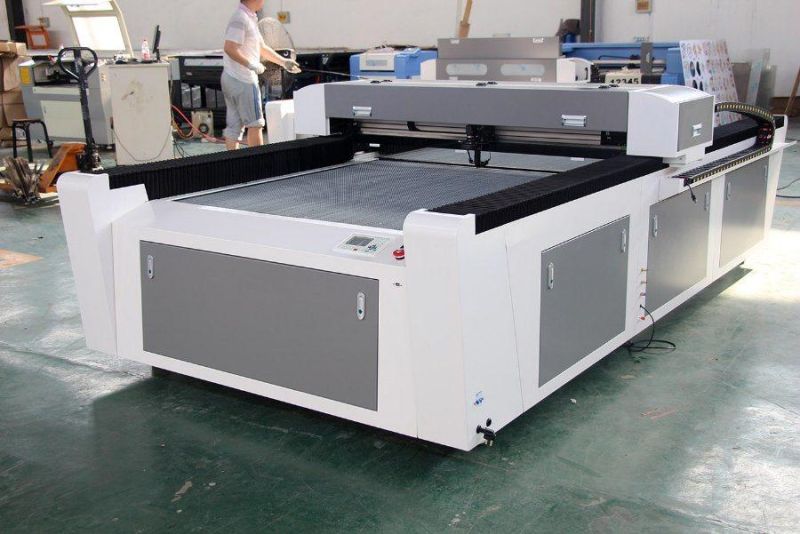

Factory price Co2 laser cutting & engraving machine for wood acrylic


Applicable Industries:
Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration, frame fabrication and etc

Applicable Materials:
Double color boards, acrylic, glass, crystal, wood, foam, bamboo, rubber, plastic, garments, paper, leather, steel, marble, granite, tiles and etc...

Features:
    In order to meet the demands of large-area cutting in some fields, our laser cutting flat bed adopts the stable and well-knit working chassis (machine tool level), and imported linear guide, which ensure the stability and precision during its fast movement. The strong working table is completely open, and has been specially dealed with. It is easy operated and will never frayed.



Model	FLC1325
Laser-type	10.6um CO2 glass laser tube w/ water-cooling
Laser power	80W/100W/130W/150W/180w
Working area	1300*2500mm
Max Engraving speed:	0-50, 000mm/min
Max cutting speed	0-24, 000mm/min
Laser output control	1-100% software setting
Location precision	Less than 0.01mm
Highest scanning precision	2500DPI
Operating temperature	0 - 45
Operating humidity	5- 95% non-condensing
Minimum shaping character	English 1.0 x 1.0mm
Graphic format supported	HPGL, BMP, PLT, DST, DXF, and AI ...
Driving system	Stepper(Optional: Servo)
Cooling mode	Water-cooling and protection system
Auxiliary equipments	Exhaust-fans, air-exhaust pipe, air pump, Chiller
Controller	DSP
Compatible Software	CorelDraw, AutoCAD, Photoshop, TAJIMA
Slope Engraving	Can be easily designed within the "Grade Engrave" function.
Color separation	Uses color property to set function, speed, and laser power

Cutting Materials and Cutting Thickness:

Materials	60w	80w	100w	130w	150w
Acrylic	8mm	15mm	15mm	20mm	20mm
Leather Cloth	One layer	Two layer	Two layer	Three layer	Three layer
Wood	5mm	8mm	10mm	15mm	15mm
Paper	3mm	6mm	8mm	8mm	8mm
Plastic	4mm	5mm	5mm	7mm	7mm
Rubber	2mm	2mm	2mm	2mm	2mm
PVC	3mm	6mm	8mm	8mm	8mm
MDF	3mm	6mm	8mm	10mm	10mm
Plywood	6mm	10mm	12mm	15mm	18mm

Samples Shown:


 For other models, please contact us for further info:
