• Model NO.：FLC1530A
• Laser Technology：Laser Control Fault Cutting
• Laser Pwer：150W-400W
• Working Area：1500*3000mm
• Warranty：24 Months
• Miq：1 PC
• Transport Package：Wood Crate
• Specification：1325
• Trademark：FLYING
• Origin：China
• HS Code：8456110090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. FLC1530A Laser Technology Laser Control Fault Cutting Laser Pwer 150W-400W Working Area 1500*3000mm Warranty 24 Months Miq 1 PC Transport Package Wood Crate Specification 1325 Trademark FLYING Origin China HS Code 8456110090 Production Capacity 100PCS/Month

Product Description

Ball Screw transmission cnc laser cutting machine for metal nonmetals
Features:

    This machine is the latest design with 150W-400W laser tube, it can cut metals such as stainless steel,carbon steel, also can cut non-metal such as acrylic,wood/MDF,leather, foam, plastic and etc. It is equipped with advanced laser controlling system with auto focus, if the metal sheet is not flat, the system can sense the distance from the nozzle to the material surface and follow the surface up and down to automatically adjust the certain focus distance to keep the highest precision cutting quality.

Application materials:
Stainless steel, carbon steel, Wood, bamboo, jade, ceramic, textile, garments, crystal, plastic, Color plates, Plexiglas, glass, acrylic, wood, paper, leather, cloth, rubber, marble, granite, tiles, shells and other non-metallic materials.

Application industries:
Mainly used for advertising industries ( stainless metal and carbon steel ), sheet metal industry (carbon steel ), packaging  industry (die board )and so on . steel industries,Plastic and rubber industry, ads/crafts/presents industry. Strumpet/machine components, leather cloth industry. Advertising logo signs, gifts, crystal ornaments, paper cutting techniques, relief, wood carving Jane. Printing plate, leather clothing, embroidery, decoration, frame making and other industrie

Specifications:

Model	FLC1530A mixed laser cutting machine
Working size	1300mm*2500mm or 1500*3000mm
Laser power	150w-300w
Cutting speed	0 - 50 mm/s
Reposition accuracy	±0.05mm
Working voltage	AC110- 220V±10%,50-60Hz
Consuming power	less than 1,000W
Working temperature	0 - 45°C
Working humidity	8 - 95%
Minimum letter size	English :1 x 1mm Chinese:2 x 2mm
Supported file format	BMP, HPGL, PLT, DST, DXP, and AI
Driving system	Stepper
Cooling system	CW-5000 chiller
Other auxiliary equipment	Exhaust-fans and air-exhaust pipe
Laser control software	DSP control system   Leetro
Compatible software	CorelDraw, AutoCAD, Photoshop
Laser tube type	Sealed CO2 glass laser tube

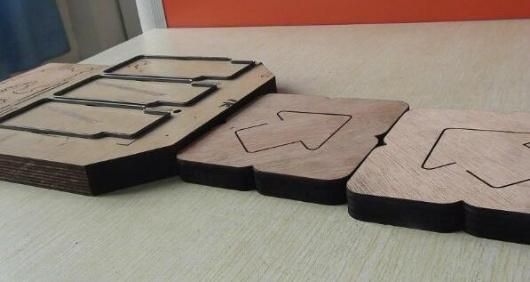

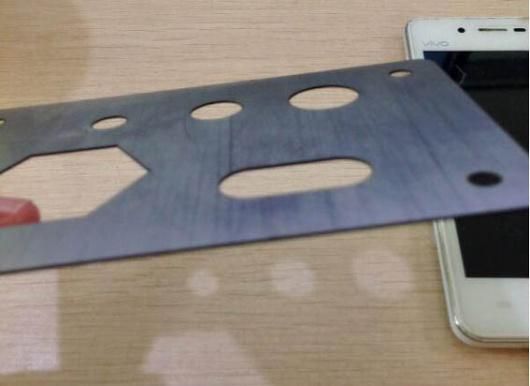

Samples Show:
