High Precision CNC Fiber Laser Cutting Machine 1000W 2000W 3000W for Metal Stainless Carbon Steel Aluminum Copper
Shandong Ruby CNC Equipment Co., Ltd.- Warranty:3 Years
- Application:Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Advertising Industry
Base Info
- Model NO.:RF3015
- Cooling System:Water Cooling
- Technical Class:Continuous Wave Laser
- Applicable Material:Metal
- Structure Type:Gantry Type
- Laser Classification:Fiber Laser
- Laser Technology:Laser Control Fault Cutting
- Max Cutting Size:1500X3000mm
- Laser Power:1000W,2000W,3000W,4000W,5000W
- Cutting Thickness:1-30mm Steel
- Driver Motor:Yaskawa Servo Motors and Drivers
- Transport Package:Plywood
- Specification:3015
- Trademark:RUBY
- Origin:China
- HS Code:8456110090
- Production Capacity:50PCS,Month
- Package size per unit product:450.00cm * 220.00cm * 170.00cm
- Gross weight per unit product:3300.000kg
Description
Introductions:
The heavy machine bed/frame makes the equipment more stable in working, the light crossbeam makes it work faster; perfect industrial design is more in line with man-machine engineering; high quality electrical software control system gives equipment higher cutting precision. The machine owns more comfortable operation, more stable performance, more durable quality, higher cutting efficiency and wider application scope.
Features:
1. High quality carbon steel plate welding, structural stability
2. Five-axis center finishing, high strength and good rigidity
3. Integral cast aluminum beam, light weight, corrosion resistance, oxidation resistance, low density

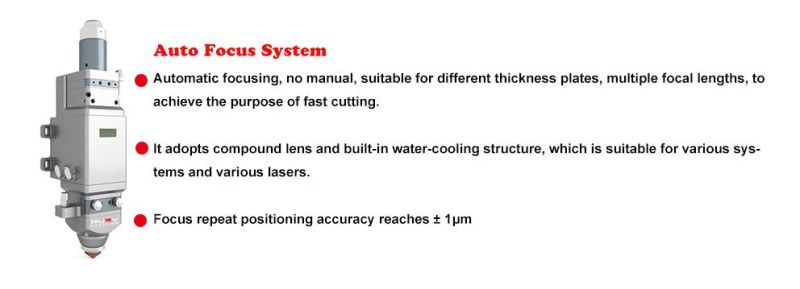

4. Automatic focus adjustment, no manual
Characteristics:
1.Stability and reliability of light path system and control system.
2.Imported original fiber lasers,high and stable function,lifespan is over 100000 hours.
3.Higher cutting quality and efficiency ,cutting speed is up to 80m/min with appearance and beautiful cutting edge.
4.German high performance reducer,gear and rack;Japanese guide and ball screw.
Advantages:
Technical Parameter:
Model
RF3015
Processing area(L×W)
3000mm×1500mm
Power
1000w/2000w/3000w
X axis track
1550mm
Y axis track
3050mm
Z axis track
150mm
X,Y axis positioning accuracy
±0.03mm/m
X,Y axis repeat positioning accuracy
±0.02mm/m
X,Y axis max speed
80m/min
X,Y axis max acceleration
1G
Max.load of worktable
900Kg
CNC system
CYPCUT
Voltage/Power
380V/50HZ / 14KW
Application:
Mechanical and Electrical Equipment ,Stainless Steel Products,Construction and Decoration Industries,Billboard ,Sheet Metal Structure,High-low Voltage Electric Cabinet ,Kitchenware.Car Accessories,Saw Bits,Precision Metal Parts,Metal Artware,etc.
Applicable materials:
Stainless Steel Sheet and Hollow Pipe ,Carbon Steel Sheet and Hollow Pipe ,Stianless Iron Sheet and Hollow Pipe ,Galvanized Sheet and Hollow Pipe ,Manganese steel ,Electrolytic plate,Aluminum Alloy ,Titanium Alloy ,Aluminum,Brass,Rare metal,etc.

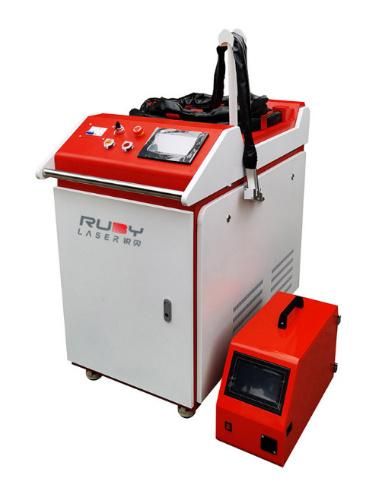

Related Products:Laser Welding is used for welding kinds of metals, mainly used for precision parts welding, which can realize spot welding, splicing welding, seal welding, overlap welding, etc. The heat distortion is small, the weld seam is beautiful and smooth, and the weld seam quality is high, and no secondary grinding treatment is required. In recent years, laser welding has been widely used for welding stainless steel, carbon steel, galvanized sheet, copper, aluminum and other products. The hand-held laser welding machine uses a hand-held swing welding head, which is flexible and simple to operate without the need for professional welder technology, Suitable for small batch and large batch production. Widely used in sheet metal processing, kitchen cabinets, cabinets, stair handrails, elevator escalators, display shelves, doors and windows, advertising models, stainless steel products and many other industries. Tube Laser Cutting Machine is mainly used for ordinary carbon steel pipe, stainless steel pipe, aluminum alloy pipe, copper pipe cutting processing. Cutting workpiece size: round tube Φ12mm-φ160mm, square tube side length ≤110mm, rectangular tube contour diagonal ≤160mm, L≤6500mm. Automatic feeding size: round tube: Φ20mm-Φ130mm; square tube: side length 25mm-80mm, need to be manually discharged, the other tubes do not support automatic feeding for the time being; But can do manual loading for cutting. single Tube weight need within 80kg. Material length: 5900mm≤ workpiece≤6100mm.Mixed Laser Cutter for Metal and NON-metals, It can cut metals such as stainless steel,carbon steel, also can cut non-metal such as acrylic, wood, leather, fabric, fiberglass, foam, plastic and etc. It is equipped with advanced laser controlling system with auto focus function, if the metal sheet is not flat, the system can sense the distance from the nozzle to the material surface and follow the surface up and down to automatically adjust the certain focus distance to keep the highest precision cutting quality.
