• Model NO.：UG-3015FL
• Cooling System：Water Cooling
• Technical Class：Continuous Wave Laser
• Applicable Material：Metal
• Structure Type：Lathe Type
• Laser Classification：Fiber Laser
• Laser Technology：Laser Control Fault Cutting
• Total Working Area：3000*1500mm
• Laser Type：Fiber Laser Source
• Laser Power：1000W( Raycus,Max)
• Working Table：Strong Tooth Type Cutting Blade Table
• Laser Head：Raytools Bm 110 Auto Focusing
• Driver and Motor Type：FUJI Japan 750W Servo Motor Driver
• Guide Rail：Linear Square Guide Rail, Hiwin, Taiwan
• Transmission Type：Helical Rack and Pinion Transmission, Yyc, Taiwan
• Control System：Cypcut 1000 with Handwheel
• Computer：Industrial CPU+ Moving Bracket
• Industrial Chiller：Cwfl-1000 (Teyu, S&a)
• Focusing：Auto Focusing
• Proportional Valve：SMC Japan
• Lubrication：Auto
• Blow off：Air Blower, 750W
• Transport Package：Plywood Case
• Specification：4450*2450*1800mm, 2100kgs
• Trademark：UPGOAL
• Origin：Jinan City, Shandong Province, China
• HS Code：8456110090
• Production Capacity：100set Per Month
• Package size per unit product：442.00cm * 225.00cm * 185.00cm
• Gross weight per unit product：2100.000kg

Basic Info.

Model NO. UG-3015FL Cooling System Water Cooling Technical Class Continuous Wave Laser Applicable Material Metal Structure Type Lathe Type Laser Classification Fiber Laser Laser Technology Laser Control Fault Cutting Total Working Area 3000*1500mm Laser Type Fiber Laser Source Laser Power 1000W( Raycus/Max) Working Table Strong Tooth Type Cutting Blade Table Laser Head Raytools Bm 110 Auto Focusing Driver and Motor Type FUJI Japan 750W Servo Motor Driver Guide Rail Linear Square Guide Rail, Hiwin, Taiwan Transmission Type Helical Rack and Pinion Transmission, Yyc, Taiwan Control System Cypcut 1000 with Handwheel Computer Industrial CPU+ Moving Bracket Industrial Chiller Cwfl-1000 (Teyu, S&a) Focusing Auto Focusing Proportional Valve SMC Japan Lubrication Auto Blow off Air Blower, 750W Transport Package Plywood Case Specification 4450*2450*1800mm, 2100kgs Trademark UPGOAL Origin Jinan City, Shandong Province, China HS Code 8456110090 Production Capacity 100set Per Month

Packaging & Delivery

Package size per unit product 442.00cm * 225.00cm * 185.00cm Gross weight per unit product 2100.000kg

Product Description

Hot Sale Auto Focusing 1000W Fiber Laser Cutting Machine for Stainless Steel/Carbon Steel 3000*1500mm


Applications

Suitable material

Cutting a wide variety of metal plates, tubes, mainly applicable to stainless steel, carbon steel, manganese steel, galvanized sheet, a variety of alloy paltes, rare metal and other materials cutting.

Application industry

Industry of kitchen ware, lamps and lanterns, panel beating, metal cabinets, auto parts, refrigerators, air condition, elevators, hotel metal supplies processing, etc.

Features

1.High-rigidity heavy chassis,reducing the vibration generatedduring high-speed cutting greatly. High-performance  vaiation aluminium crossbeam,after finite element analysis,realizes highly accelerated circular arc cutting speed.

2.Gantry double-drive structure,with imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,  high precision, smooth and steady running.Taiwan YYC rack&pinion transmission system for XY-axis,improves the production efficiency.

3.The famous RAYTools BM 110 auto focusing fiber laser cutting head does not come into contact with the surface of the material and does not scratch the workpiece.

4. Adopted stable MAX/RAYCUS brand 1000W  fiber laser source, photoelectric conversion rate is high, high beam quality, work life of more than 100,000 hours, no maintenance costs..

5.  With strong tooth type cutting blade table, can stand more thickness sheet , and ensure cutting performance, equipped with feeding wheels is convenient to load materials.

6. The CypCut 1000 control system is embedded with a rich memory of laser cutting setting references, flexible layout designs and tool path editing, data import/export,bridging, coedge, beam compensation, curve smoothing, division, caombination, automatic identification of exterior and interior modes and so on, compatible, with laser source brands such as IPG, SPI, JK, Raycus, etc.

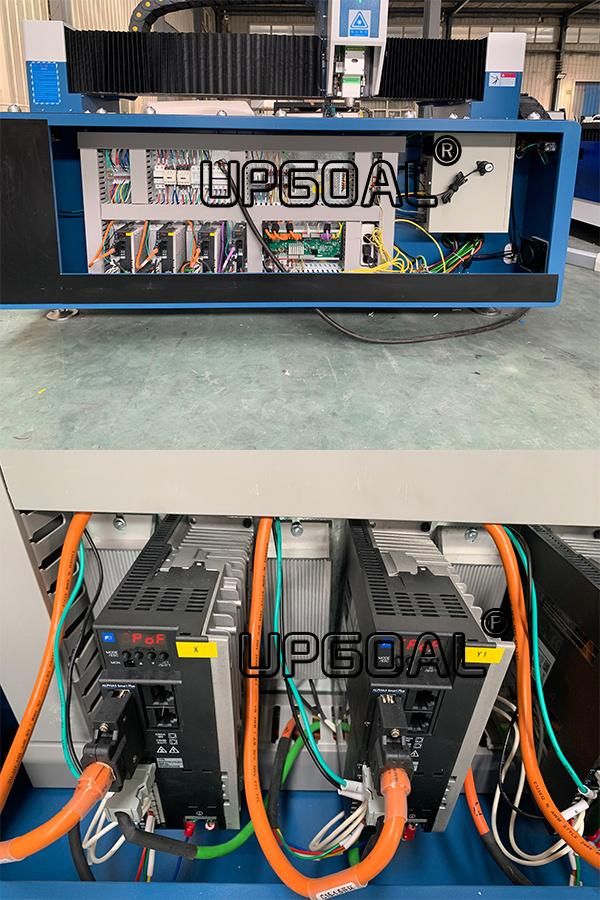

7. Adopted Fuji Japan 750W servo motor and driver for machine, the servo motor with SHIMPO reducer,  more accurate, It realizes closed-loop control of position, rotating speed is more faster, general rated speed can reach 2000~3000 rpm; With high strong anti-overload capability, and smooth operation at low speed, no stepping operation similar to stepper motor when running at low speed.



8. Industrial CPU with moving bracelet, very convenient to operate

9. S&A Teyu Industrial chiller CWUL-1000, ensuring fiber laser and laser head can be cooled quickly to ensure that the laser machine has stable power even working at high temperature, high efficient and fast operation.

10. Auto lubrication system and air blower 750W for blow- off.

11.  Adopted SMC Japan proportional valve, improve cutting accuracy.

12. Open worktable, simple operation and small space eccupation.

13.High precision, fast speed, narrow slit, minimum heat affected zone, smooth cut surface and no burr.

14. The slit is the narrowest, the heat affected zone is the smallest, the local deformation of the workpiece is very small, and there is no mechanical deformation.

15.It has good processing flexibility, can process any pattern, and can cut pipes and other profiles.

16. Non-deformable cutting can be performed on materials of any hardness such as steel plates, stainless steel, aluminum alloy plates, and hard alloys.



Technical Parameters


Model	UG-3015FL
Effect cutting size for panel	3000*1500mm
Xaxis working area	1500mm
Y axis working area	3000mm
Zaxis working area	200mm
Laser type	Fiber laser generator
Laser working medium	Fiber
Laser wavelength	1060-1080nm
Cutting head	RAYTools BM110 auto focusing laser cutting head
Rated output power	1000W(MAX /RAYCUSbrand)
Laser cutting system	CypCut 1000
Driving system	Fuji Japan servo motor 750W for XY-axis, 400W for Z-axis
Reduction gear	SHIMPO, Japan
Guide rail	Linear square guide rail, Hiwin, Taiwan
Tranmission system	Helical rack and pinion transmission, YYC, Taiwan
Proportional valve	SMC, Japan
PositionaI accuracy	0.03mm/m
Repeated positioning accuracy	±0.02mm/m
Maximum travelling speed	100m/min
Power supply	AC380V, 50/60Hz, three phases  or AC220V, 50/60Hz, single phase
Equipment power	13.25kw
Graphic format supported	CAD,DXF, etc
Lubrication system	Automatic
Working environment	Temp:0-40ºC,humidity:≤80%,No condensation
Certificate	CE/FDA

Reference Sample Photos

Reference Working Videos

https://youtu.be/R7HUHH5Rk4c



Accessories & Packing Delivery


                                           For more information, just feel free to contact us!
