Wood Acrylic Dieboard Glass Fabric CNC Laser Cutting Machine Flc1390
Shandong Ruby CNC Equipment Co., Ltd.- Warranty：2 Years
- Application：Home Appliance, Textile Machinery, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
Base Info
- Model NO.：FLC1390
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Applicable Material：Nonmetal
- Structure Type：Gantry Type
- Laser Classification：Gaseous Laser
- Laser Technology：Laser Control Fault Cutting
- Working Area：1300*900mm
- Delivery Time：in 7 Days After Receipt Deposit
- Transport Package：Plywood Crate
- Specification：1390
- Trademark：flying
- Origin：China
- HS Code：8456100090
- Production Capacity：100PCS,Month
- Package size per unit product：198.00cm * 148.00cm * 136.00cm
- Gross weight per unit product：360.000kg
Description
Features:
Equipped with imported dual linear guide,so machine can move stably and cut the adge smoothly. Adopt three-phase motors and drivers,belt can move in fast cutting speed and high precision. With front and rear openings, Materials can extend through machine to allow for a larger work product.
Specifications:| Model | FLC1390 |
| Laser-type | 10.6um CO2 glass laser tube w/ water-cooling |
| Laser power | 60w-300w |
| Working area | 1300*900mm |
| Max Engraving speed: | 0-64, 000mm/min |
| Max cutting speed | 0-30, 000mm/min |
| Laser output control | 1-100% software setting |
| Location precision | Less than 0.01mm |
| Highest scanning precision | 2500DPI |
| Operating temperature | 0 - 45 |
| Operating humidity | 5- 95% non-condensing |
| Minimum shaping character | English 1.0 x 1.0mm |
| Graphic format supported | HPGL, JPEG, BMP, PLT, DST, DXF, and AI ... |
| Driving system | Stepper(Optional: Servo) |
| Cooling mode | Water-cooling and protection system |
| Auxiliary equipments | Exhaust-fans, air-exhaust pipe, air pump, chiller |
| Controller | DSP |
| Compatible Software | CorelDraw, AutoCAD, Photoshop, TAJIMA |
| Slope Engraving | Can be easily designed within the "Grade Engrave" function. |
| Color separation | Uses color property to set function, speed, and laser power |
Applicable Industries:
Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration, frame fabrication and etc.
Applicable Materials:
Double color boards, acrylic, glass, wood planks, bamboo, rubber, plastic, garments, paper, leather, marble, granite, tiles and etc...

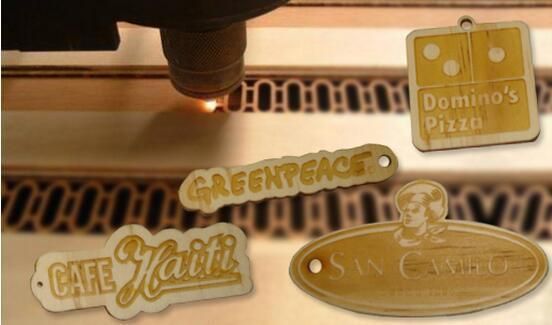

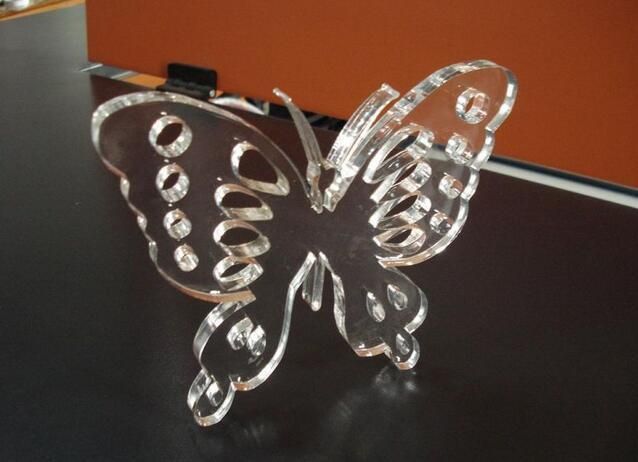

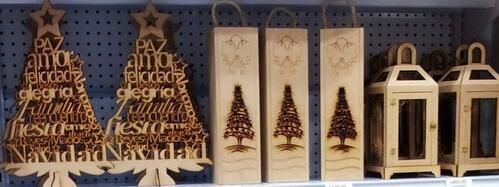

Samples Show:
