• Model NO.：FLC1512
• Laser Technology：Laser Control Fault Cutting
• Working Area：1500*1200mm
• Transport Package：Plywood
• Specification：1512
• Trademark：FLYING
• Origin：China
• HS Code：8456100090
• Production Capacity：100PC,Month

Basic Info.

Model NO. FLC1512 Laser Technology Laser Control Fault Cutting Working Area 1500*1200mm Transport Package Plywood Specification 1512 Trademark FLYING Origin China HS Code 8456100090 Production Capacity 100PC/Month

Product Description

China leading manufacturer for cnc Laser cutting engraving machine FLC1512

Features:

    Adopts new high-efficiency laser tube, the laser beam is more stable than the traditional type,and the lifespan of the laser tube can be over 10000 hours. Materials can extend through the front and rear doors to allow for a larger work product,the humanized and modern appearance shows Flying's consistent humanity idea, and it also makes the operation and maintenance quite easy.

Extra Features:
1) Materials can extend through the front and rear doors to allow for a larger work product.
2) Following LED Work light to help see products during laser processing.
3) Red-DOT pointer to help you see the expected laser beam position.
4) AutoFocus touch sensor to easily set the right height for best engraving and cutting.
5) Parts tray for removing small parts or scrap from under the workbed.

6) Fully enclosed laser case yields a class I (user friendly) laser product.

Specifications:

Model	FLC1512
Laser-type	10.6um CO2 glass laser tube w/ water-cooling
Laser power	80w-180w
Working area	1500*1200mm
Max Engraving speed:	0-60, 000mm/min
Max cutting speed	0-36, 000mm/min
Laser output control	1-100% software setting
Location precision	Less than 0.01mm
Highest scanning precision	2500DPI
Operating temperature	0 - 45
Operating humidity	5- 95% non-condensing
Minimum shaping character	English 1.0 x 1.0mm
Graphic format supported	HPGL, BMP, PLT, DST, DXF, and AI ...
Driving system	Stepper(Optional: Servo)
Cooling mode	Water-cooling and protection system
Auxiliary equipments	Exhaust-fans, air-exhaust pipe, air pump, chiller
Controller	DSP
Compatible Software	CorelDraw, AutoCAD, Photoshop, TAJIMA
Slope Engraving	Can be easily designed within the "Grade Engrave" function.
Color separation	Uses color property to set function, speed, and laser power



Applicable Industries:
Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration, frame fabrication and etc

Applicable Materials:

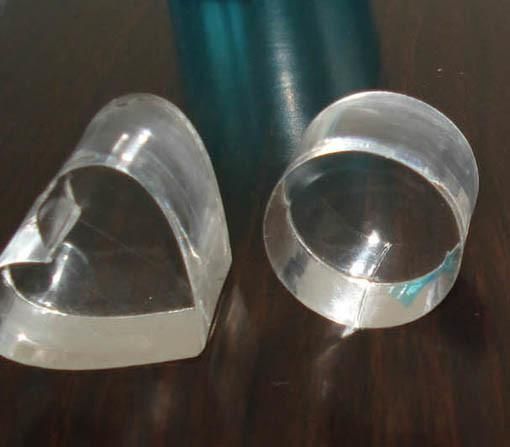

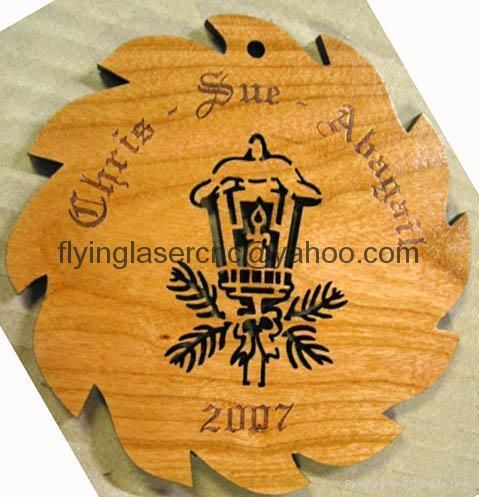

Double color boards, acrylic, glass, crystal, wood, foam, bamboo, rubber, plastic, garments, paper, leather, marble, granite, tiles and etc...
