• Model NO.：FLC1610D
• Structure Type：Gantry Type
• Laser Classification：Gaseous Laser
• Laser Technology：Laser Control Fault Cutting
• Power：80-180W
• Drive Type：Stepper Drive
• Certification：CE
• Laser Type：CO2
• Control：CNC
• Current：AC
• Condition：New
• Working Area：1600*1000mm
• Transport Package：Plywood
• Specification：1610
• Trademark：FLYING
• Origin：China
• HS Code：8456100090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. FLC1610D Structure Type Gantry Type Laser Classification Gaseous Laser Laser Technology Laser Control Fault Cutting Power 80-180W Drive Type Stepper Drive Certification CE Laser Type CO2 Control CNC Current AC Condition New Working Area 1600*1000mm Transport Package Plywood Specification 1610 Trademark FLYING Origin China HS Code 8456100090 Production Capacity 100PCS/Month

Product Description

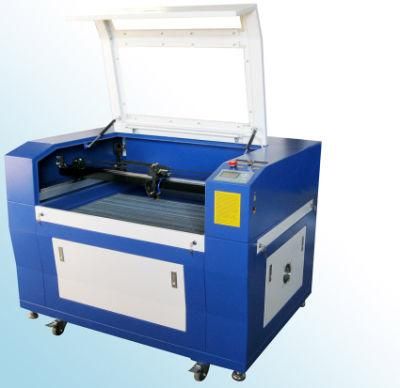

Double-Heads co2 laser cutting and engraving machine
Features:
    This co2 laser engraving cutting machine has the high-efficiency and low-cost laser equipment which was researched and manufactured by our company according to the features of large processing working loads and urgent processing working time in manufacture enterprise. The working feature of this machine is that the laser head can realize engraving and cutting at the same time each of which can be controlled respectively.

  The multi-head laser machine has the features of large area processing with single head and high efficiency cutting of small area with two laser heads, making the flexibility arisen and the suitable area more abroad. It can solve the problem of mass production, which cannot be achieved by single laser head and make volume production by laser machine possible.

Applicable Industries:
Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration, frame fabrication and etc.

Applicable Materials:
Non-metal materials such as double color boards, acrylic, glass, wood planks, bamboo, rubber, plastic, garments, paper, leather, marble, granite, tiles and etc...

Specifications:

Model	FLC1610D
Laser-type	10.6um CO2 glass laser tube w/ water-cooling
Laser power	80W*2, 100W*2 ,130W*2, 150W*2
Working area	1600*1000mm
Max Engraving speed:	0-64, 000mm/min
Max cutting speed	0-30, 000mm/min
Laser output control	1-100% software setting
Location precision	Less than 0.01mm
Highest scanning precision	2500DPI
Operating temperature	0 - 45
Operating humidity	5- 95% non-condensing
Minimum shaping character	English 1.0 x 1.0mm
Graphic format supported	HPGL, JPEG, BMP, PLT, DST, DXF, and AI ...
Driving system	Stepper(Optional: Servo)
Cooling mode	Water-cooling and protection system
Auxiliary equipments	Exhaust-fans, air-exhaust pipe, air pump, water pump
Controller	DSP
Compatible Software	CorelDraw, AutoCAD, Photoshop, TAJIMA
Slope Engraving	Can be easily designed within the "Grade Engrave" function.
Color separation	Uses color property to set function, speed, and laser power

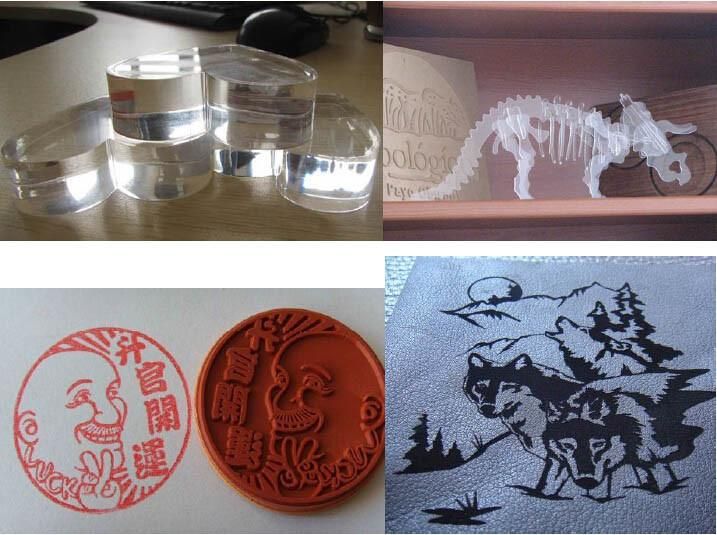

Samples Show:
