Flc1520 Laser Machine for Wood/Acrylic Cutting

Shandong Ruby CNC Equipment Co., Ltd.
  • Application：Textile Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
  • Cooling System：Water Cooling
  • Technical Class：Continuous Wave Laser
  • Applicable Material：Nonmetal
  • Structure Type：Gantry Type
  • Laser Classification：Gaseous Laser

Base Info

  • Model NO.：flc1520
  • Laser Technology：Laser Control Fault Cutting
  • Control：CNC
  • Current：AC
  • Laser Type：CO2
  • Engraving Machine Type：Laser Cutting Machine
  • Working Area：1500*2000mm
  • Laser Power：90W,100W,130W,150W
  • Transport Package：Plywood
  • Specification：ce
  • Trademark：flying
  • Origin：China
  • HS Code：8456100090
  • Production Capacity：100PC,Month

Description

Basic Info.

Model NO. flc1520 Laser Technology Laser Control Fault Cutting Control CNC Current AC Laser Type CO2 Engraving Machine Type Laser Cutting Machine Working Area 1500*2000mm Laser Power 90W/100W/130W/150W Transport Package Plywood Specification ce Trademark flying Origin China HS Code 8456100090 Production Capacity 100PC/Month

Product Description

FLC1520 laser cutting machineFeatures  In order to meet the demands of large area cutting in some fields, this laser cutting machine adopts the stable and well-knit working chassis (machine tool level), and imported linear guide,, which ensure the stability and precision during its fast movement. Also it has upper cover which can guarantee the operator's safety.

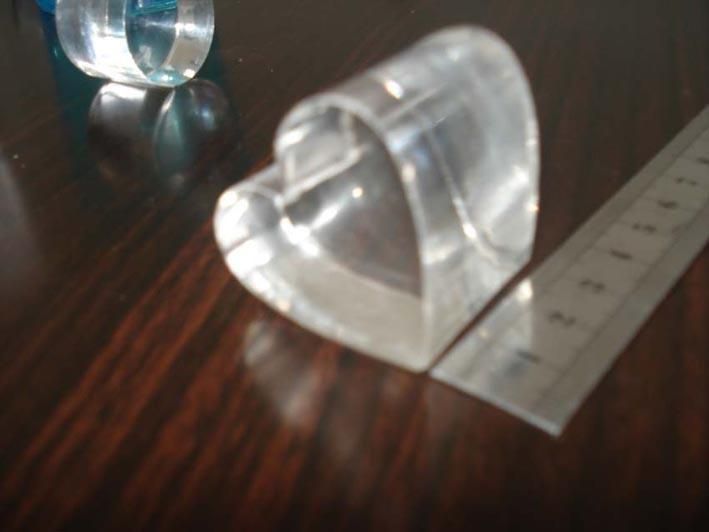

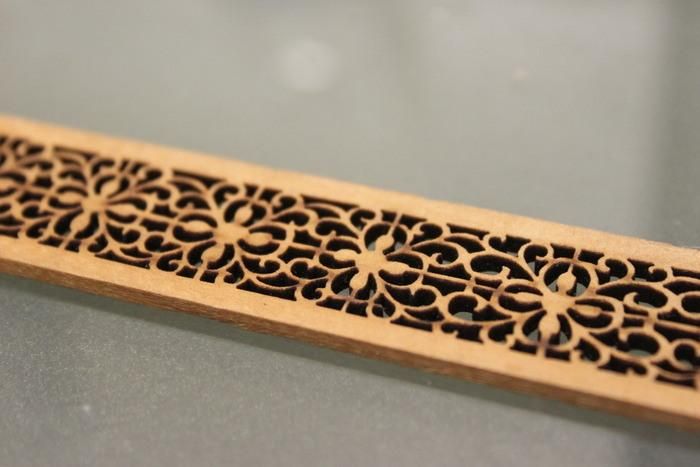

Flc1520 Laser Machine for Wood/Acrylic Cutting
Flc1520 Laser Machine for Wood/Acrylic Cutting
Flc1520 Laser Machine for Wood/Acrylic Cutting
Specifications:
Model FLC1520
Laser-type10.6um CO2 glass laser tube w/ water-cooling
Laser power90W/100W/130W/150W/180W
Working area1500 x2000mm
Max Engraving speed:0-50, 000mm/min
Max cutting speed0-30, 000mm/min
Laser output control  1-100% software setting
Location precision  Less than 0.01mm
Highest scanning precision  2500DPI
Operating temperature  0 - 45
Operating humidity  5- 95% non-condensing
Minimum shaping character  English 1.0 x 1.0mm
Graphic format supportedHPGL, BMP, PLT, DST, DXF, and AI ...
Driving system  Stepper(Optional: Servo)
Cooling mode  Water-cooling and protection system
Auxiliary equipments  Exhaust-fans, air-exhaust pipe, air pump, water pump
Controller DSP
Compatible Software CorelDraw, AutoCAD, Photoshop, TAJIMA
Slope Engraving   Can be easily designed within the "Grade Engrave" function.
Color separation   Uses color property to set function, speed, and laser power
