• Model NO.：UG-9060L
• Laser Technology：Laser Control Fault Cutting
• Working Area：900*600mm
• Rated Laser Power：Reci W2 90W
• Working Table：Knife Strip and Honey Comb
• Driver and Motor Type：Yako Three Phases Stepper Motor and Driver
• Transmission Type：Belt Transmission
• Cutting Speed：0-10000mm,Min
• Control System：Ruida 6445g( Rdworks V8 Software)
• Lifing Table：Automatic Focusing
• Positioning：Red DOT
• Cooling：Industrial Chiller Cw-3000
• Blow-off：138W Air Pump and 550W Air Blower
• Voltage：AC110V,220V, Single Phase
• Transport Package：Plywood Case
• Specification：1940*1540*1250mm, 400kgs
• Trademark：UPGOAL
• Origin：China
• HS Code：8456110090
• Production Capacity：250set Per Month

Basic Info.

Model NO. UG-9060L Laser Technology Laser Control Fault Cutting Working Area 900*600mm Rated Laser Power Reci W2 90W Working Table Knife Strip and Honey Comb Driver and Motor Type Yako Three Phases Stepper Motor and Driver Transmission Type Belt Transmission Cutting Speed 0-10000mm/Min Control System Ruida 6445g( Rdworks V8 Software) Lifing Table Automatic Focusing Positioning Red DOT Cooling Industrial Chiller Cw-3000 Blow-off 138W Air Pump and 550W Air Blower Voltage AC110V/220V, Single Phase Transport Package Plywood Case Specification 1940*1540*1250mm, 400kgs Trademark UPGOAL Origin China HS Code 8456110090 Production Capacity 250set Per Month

Product Description

China 900*600mm Acrylic Co2 Laser Cutting Machine

Features

Laser Head

Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.


Laser Tube

Adopted high quality Reci W2 90W Co2 laser tube,  long working time time and stable




Working Table



Honey Comb Table: applicable to various soft materials with good adsorption effect and low reflection ratio.

Knife Strip Table:  With oxidation treatment and low reflection ratio Ensured cutting quality.

Auto Lifting Table for more thickness materials:Maximum Loading 50kgs with 300mm up-down distance.



Motion System

Imported High precision, low friction force and stand wear and Taiwan linear square guide rails and blocks with 3M belt ensured stable transmission, lower noise



Driving system
Adopt Yako three phases stepper motor driver, powerful and high precision.

Beam Path System

Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.

Operation System

Advanced USB port RuiDa 6445G DSP control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .



With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.

Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.

Rationalized placement of the electronic parts. Optimized heat dissipation effect.



Cooling System

Industrial chiller CW-3000, ensuring the laser tube long time continuous working.



Blow- off system

Air pump(138W) and air blower(550W) for laser head & machine blow-off

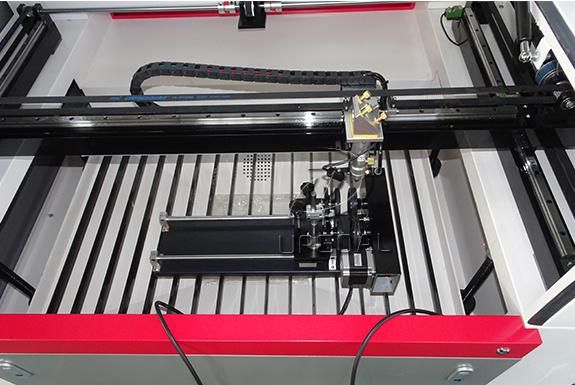

Optinonal rotary axis for cylinder engraving




Technical Parameters


Effective working area	900*600mm
Laser Type	Co2 sealed-off laser tube
Laser tube power	W2 series, Reci, Beijing (Rated power: 90W, max. Power: 100W)
Working table	Honey comb & knife strip, double working table
Lifting table	Automatic up and down, 300mm
Driver mode	3 phases stepper motor and Driver, Yako brand
Guide rail	Linear square guide rail ( CSK,Taiwan)
Transmission	Belt transmission
Control panel	English
Laser output control	1-100% software setting
Engraving speed	0-60000mm/min
Cutting speed	0-10000mm/min
Control system	RDC6445G
Control software	RDWorks V8
Design software when delivery	CorelDraw
Control panel	DSP offline
Resolution accuracy	< 0.01mm
Location precision	< 0.01mm
Highest scanning accuracy	2500DPI
Type of cooling	Industrial chiller CW-3000 cooling
Water protection system	Yes
Focus	Auto focus
Blow-off system	Air pump for the laser head Air blower for the machine
Biggest scanning accuracy	2500DPI
Working temperature	0-45 °C
Operating humidity	5-95% (without condensed water)
Supporting picture format	PLT,DST,DXF,BMP, DWG,AI,LAS,etc
Voltage	AC 220V/110V ±10% 50/60Hz, single phase
Certificate	CE/FDA



Applications

Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.

Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc

Materials Can work With: Organic glass, acrylic board (the paulownia,  lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.

Reference Sample Photos




Reference Working Videos

https://youtu.be/cOe9JRUF8d8






 For more information, just feel free to contact us!
