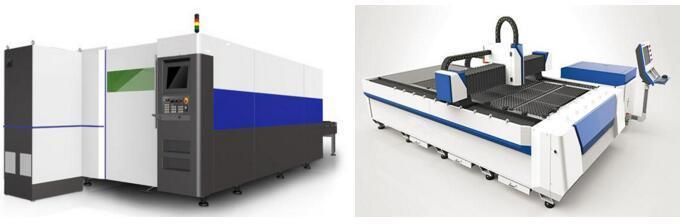

Close Cover Fiber Laser Cutting Machine Price
Jinan Huaxia Machinery Equipment Co., Ltd.- Warranty：3 Years for Whole Machine
- Application：Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Advertising Industry, HVAC Industry
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Applicable Material：Metal
- Structure Type：Desktop
Base Info
- Model NO.：HXF-1530
- Laser Classification：Free Electron Laser
- Laser Technology：Laser Cutting
- Laser Power：China Raycus 1000W
- Laser Head：Raytools,Switzerland
- Motor and Drive：Japan Yaskawa 850W
- Reducer：Japan Shimpo
- Pneumatic Parts：Korea
- Control System：Cypcut,China
- Water Chiller：Cw-6200
- Cutting Air：Air, Oxygen, Nitrogen.
- After Service：Free Door to Door Install &Train Service
- Transport Package：Plywood Case After Packed by Wrapping Film
- Specification：1500*3000mm
- Trademark：HuaXia
- Origin：China
- HS Code：8456110090
- Production Capacity：30 Sets,Month
Description
24 Hours

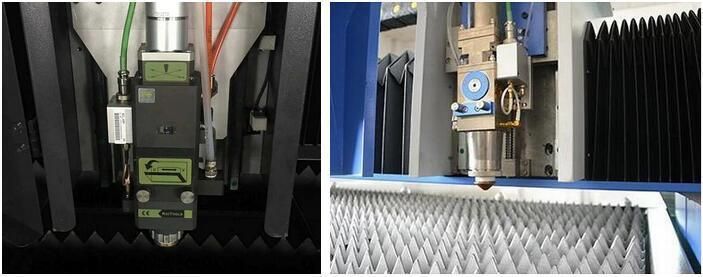

OPTIONS1) RayTools or Precitec CNC laser cutting head

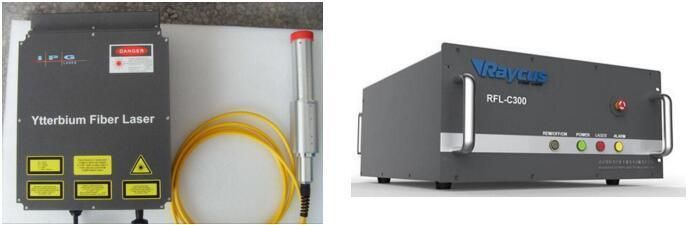

2) Laser power brand: IPG, Raycus laser source all available.
IPG Ytterbium fiber laser Raycus Ytterbium fiber laser
3) With or without fiber laser protective cover, customize as your request.
With fiber laser protective cover Without fiber laser protective cover

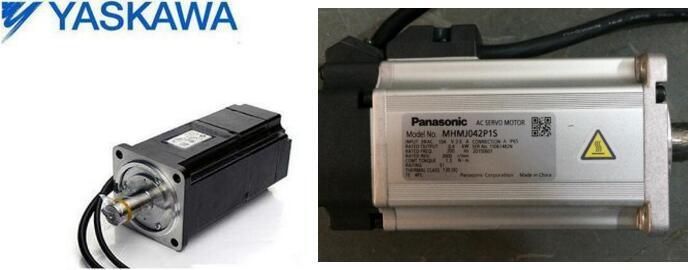

4) YASKAWA SERVO MOTOR or Panasonic SERVO MOTOR

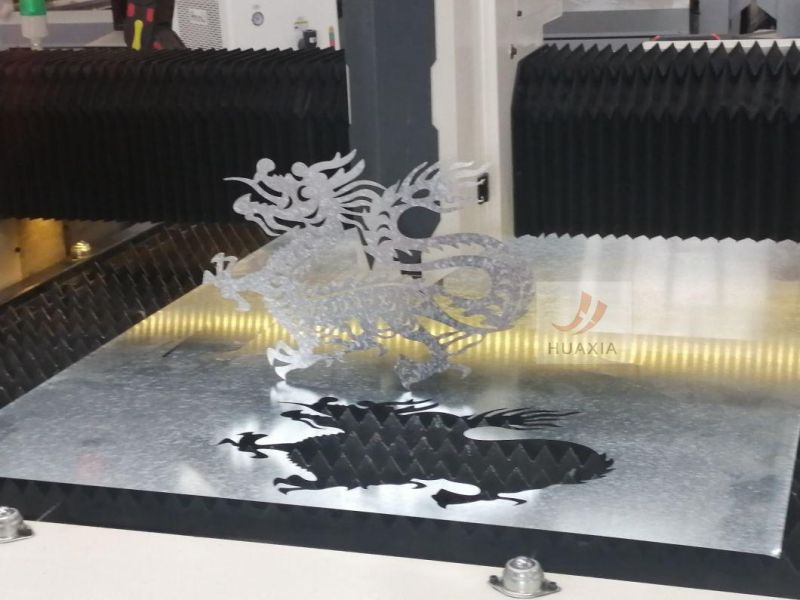

Sample
Packing
FAQ
Q1: I know nothing about this machine, what type of machine should I choose?
We will help you choose the suitable machine and share you the solution; you can share us what material will you cut, the material thickness and working size.
Q2: When I got this machine, but I don't know how to use it. What should I do?
We will send English manual and Operation Video and for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q3: May we know the speed of your Fiber Laser Cutting Machine as per on our demand basis?
We use Japan Servo motor and driver with big strength, so the max moving speed can reach 120m/min, max cutting speed can reach 40m/min. And the speed can reach 1.5-2m/min if you cut 4.5-5mm stainless steel.
