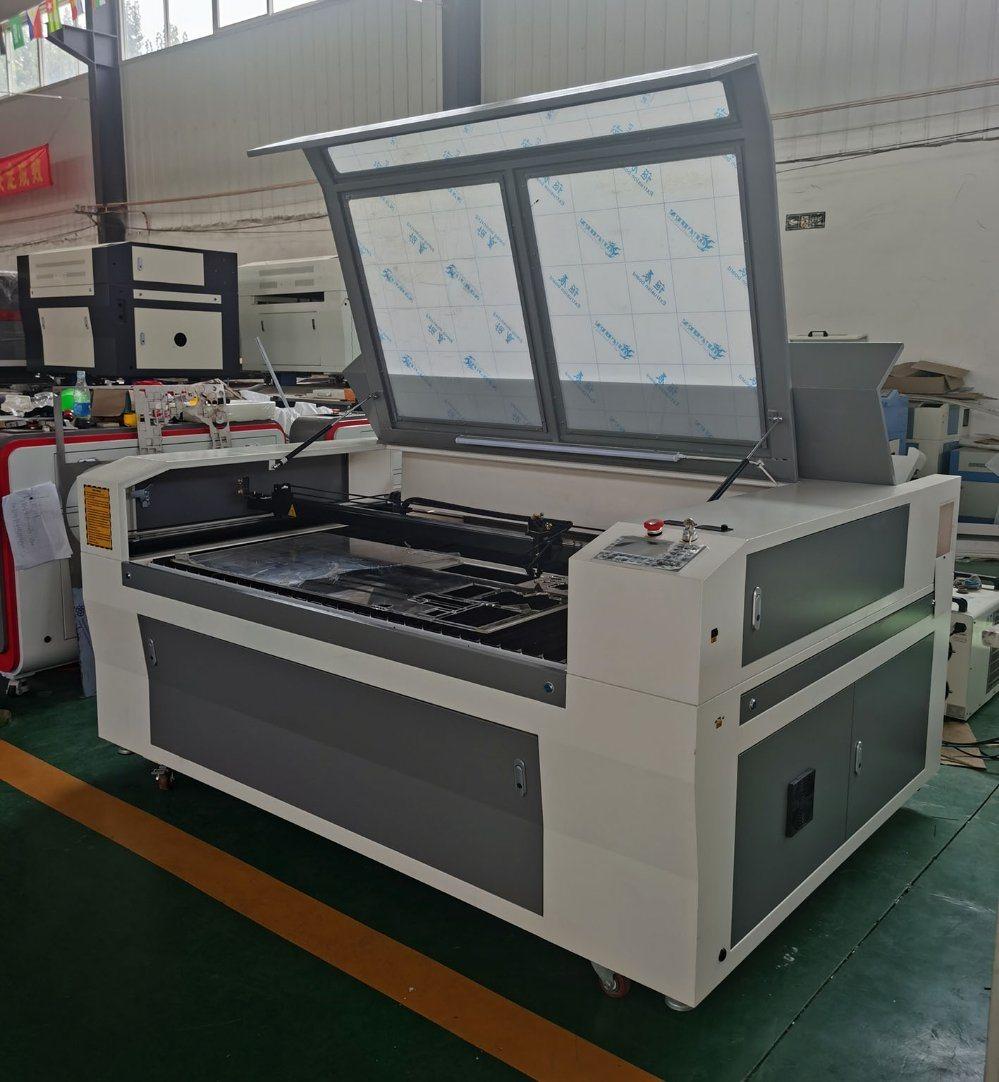

Flc1610d Dual Heads Laser Engraving Cutting Machine for Wood Acrylic
Shandong Ruby CNC Equipment Co., Ltd.- Cooling System:Water Cooling
- Technical Class:Continuous Wave Laser
Base Info
- Model NO.:FLC1610D
- Applicable Material:Nonmetal
- Structure Type:Gantry Type
- Laser Classification:Gaseous Laser
- Laser Technology:Laser Control Fault Cutting
- Laser Power:60W-500W
- Drive Type:Stepper Drive
- Control:CNC
- Certification:CE
- Laser Type:CO2
- Working Area:1600*1000mm
- Transport Package:Plywood
- Specification:1610D dual heads
- Trademark:FLYING
- Origin:China
- HS Code:8456100090
- Production Capacity:100PCS,Month
Description
Basic Info.
Model NO. FLC1610D Applicable Material Nonmetal Structure Type Gantry Type Laser Classification Gaseous Laser Laser Technology Laser Control Fault Cutting Laser Power 60W-500W Drive Type Stepper Drive Control CNC Certification CE Laser Type CO2 Working Area 1600*1000mm Transport Package Plywood Specification 1610D dual heads Trademark FLYING Origin China HS Code 8456100090 Production Capacity 100PCS/MonthProduct Description
FLC1610D Dual Heads Laser Engraving Cutting Machine for Wood AcrylicFeatures:
Adopts new high-efficiency laser tube, the laser beam is more stable than the traditional type,and the lifespan of the laser tube can be over 10000 hours. Materials can extend through the front and rear doors to allow for a larger work product,the humanized and modern appearance shows Flying's consistent humanity idea, and it also makes the operation and maintenance quite easy.
Extra Features:
1) Materials can extend through the front and rear doors to allow for a larger work product.
2) Work light to help see products during laser processing.
3) Red-DOT pointer to help you see the expected laser beam position.
4) AutoFocus touch sensor to easily set the right height for best engraving and cutting.
5) Parts tray for removing small parts or scrap from under the workbed.
6) Fully enclosed laser case yields a class I (user friendly) laser product.
Specifications:
Model | FLC1610D |
Laser-type | 10.6um CO2 glass laser tube w/ water-cooling |
Laser power | Dual 100w-300w |
Working area | 1600*1000mm |
Max Engraving speed: | 0-60, 000mm/min |
Max cutting speed | 0-36, 000mm/min |
Laser output control | 1-100% software setting |
Location precision | Less than 0.01mm |
Highest scanning precision | 2500DPI |
Operating temperature | 0 - 45 |
Operating humidity | 5- 95% non-condensing |
Minimum shaping character | English 1.0 x 1.0mm |
Graphic format supported | HPGL, BMP, PLT, DST, DXF, and AI ... |
Driving system | Stepper(Optional: Servo) |
Cooling mode | Water-cooling and protection system |
Auxiliary equipments | Exhaust-fans, air-exhaust pipe, air pump, chiller |
Controller | DSP |
Compatible Software | CorelDraw, AutoCAD, Photoshop, TAJIMA |
Slope Engraving | Can be easily designed within the "Grade Engrave" function. |
Color separation | Uses color property to set function, speed, and laser power |
Applicable Industries:
Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration, frame fabrication and etc
Applicable Materials:
Double color boards, acrylic, glass, crystal, wood, foam, bamboo, rubber, plastic, garments, paper, leather, marble, granite, tiles and etc...
Samples Shown:
