• Model NO.：LS-YLP-20L,30L,50L
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：Ls-Ylp-20L,30L,50L,100L
• Laser Power：20W;30W;50W
• Power Consumption：<500W
• Wavelength：1064nm
• Engraving Range：Max 400*400mm(Customized)
• Engraving Depth：1.2mm
• Minimum Line Width：0.012mm
• Minimum Character：0.1mm
• Repeated Accuracy：+-0.003mm
• Life of Laser Module：100000hrs
• Transport Package：Wooden Case
• Specification：800*650*1430mm
• Trademark：Hispeed or Customized
• Origin：China
• HS Code：8456100090
• Production Capacity：100 Sets , Month

Basic Info.

Model NO. LS-YLP-20L/30L/50L Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model Ls-Ylp-20L/30L/50L/100L Laser Power 20W;30W;50W Power Consumption <500W Wavelength 1064nm Engraving Range Max 400*400mm(Customized) Engraving Depth 1.2mm Minimum Line Width 0.012mm Minimum Character 0.1mm Repeated Accuracy +-0.003mm Life of Laser Module 100000hrs Transport Package Wooden Case Specification 800*650*1430mm Trademark Hispeed or Customized Origin China HS Code 8456100090 Production Capacity 100 Sets / Month

Product Description

Hispeedlaser Factory Stainless Steel Nameplate Laser Marking Machine



>>Equipment Description<<
Hispeed Fiber laser marking system adopts Chinese most advanced fiber laser source and high-quality Galvo scanning head.
It can provide stable power output, perfect optical mode, good beam quality and high speed marking, so you can get a perfect effect and high efficiency, which can fulfill massive production.


>>Equipment Features<<
>>> Easy operation
>>> No need material
>>> Minimal Maintenance
>>> High quality permanent marking
>>> Works both on Metal and Non-metal
>>> Environment friendly and safe Machinery
>>> Diodes have lifetime of more than 80,000hrs
>>> No faulty in long time working, can meet the demand of industrial continuous work


>>Equipment Details<<



>>Technical Parameters<<


Model	LS-YLP-20L	LS-YLP-30L
Power	20W	30W
Wavelength	1064nm	1064nm
Ouput Power	10%-100% (continuously to be adjusted)	10%-100% (continuously to be adjusted)
Output Frequency	20KHz-100KHz (continuously to be adjusted)	20KHz-100KHz (continuously to be adjusted)
Power Stability (8h)	<± 1%rms	<± 1%rms
Focus Spot Diameter	<0.01mm	<0.01mm
Engraving Range	≤400*400mm (customized)	≤400*400mm (customized)
Minimum Line Width	0.012mm	0.012mm
Minimum Character	0.1mm	0.1mm
Repeated Accuracy	±0.003mm	±0.003mm
Cooling Mode	Air Cooling	Air Cooling
Environment Temperature	10ºC~35ºC	10ºC~35ºC
Power Requirement	220V/Singlephase/50Hz/<400W	220V/Singlephase/50Hz/<400W
Life of Laser Module	100,000Hrs	100,000Hrs
Host Size	800x600x1400mm	800x600x1400mm
Package Size	750x900x1200mm	750x900x1200mm
Gross Weight	140KGS	140KGS

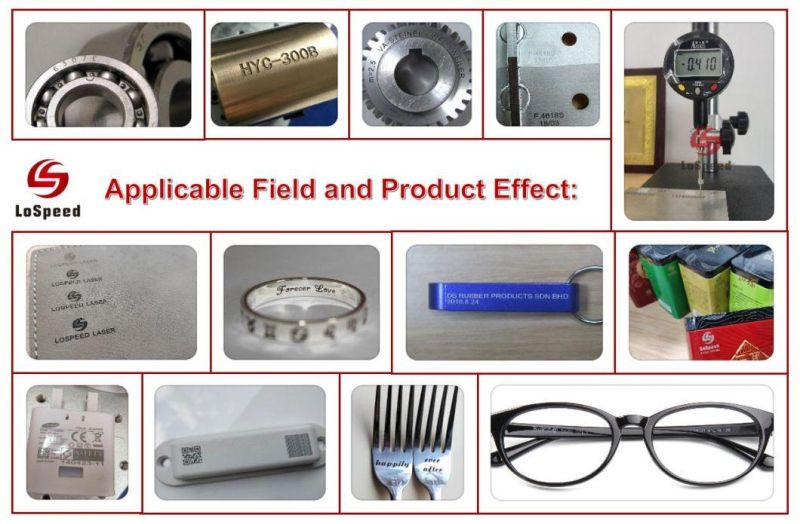

>>Applicable Area<<

It widely used in industries of mobile phone keys, translucent plastic keys, electronic components, integrated circuit(IC),
electrical appliances, communication products, sanitary ware, tool parts, knives, watches, glasses, jewellry, auto accessories,
luggage buckles, cooking utensils, stainless steel and other metal materials product.






Our Business Principles
"Focusing on customers and regarding the quality as the life".
To assist customers to complete a variety of process problems and technical research, to help customers achieve profitability an expectation
in production from the technical aspect and to establish an interactive and win-win partnership with customers.
Our Enterprise Culture"People-oriented" is the concept of our corporate culture.
This is excellent,motivated and dynamic team,rich in professional knowledge,is creating new possibilities for the laser industry in China.




>>Buyer Feedback<<





>>Company Information<<
HiSpeed Laser Company is a modern professional Hi-Tech enterprise, specializing in manufacturing of Fiber Laser Marking Machine,CO2 Laser Marking Machine,UV Laser Marking Machine, Portable Laser Marking Machine,Mini Handheld Laser Machine,and Laser Engraver Machine, Laser Tube, Laser Power Supply, Laser Optics and Laser accessories etc.
