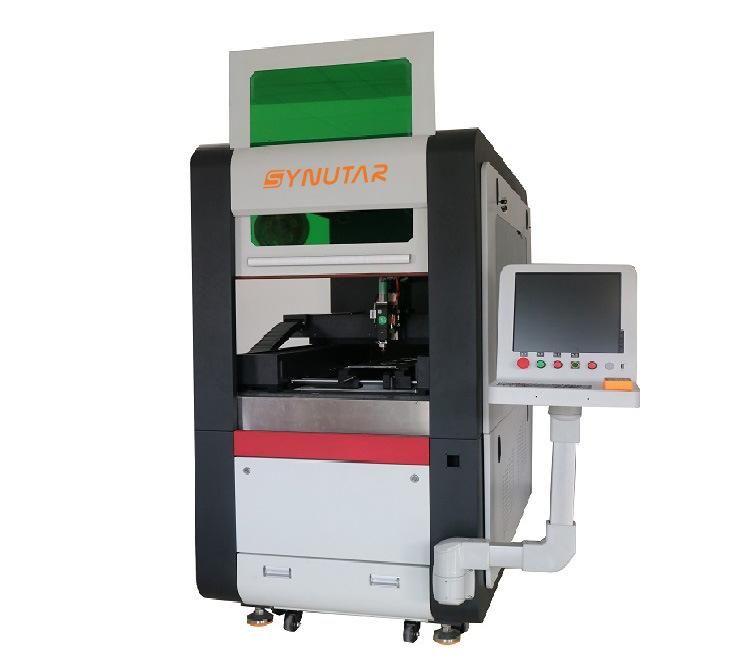

Synutar High Precision Fiber Laser Cutting Machine for Jewelry Gold, Silver, Copper (model SY-F5025/SY-F6040/SY-F6060)
Dongguan Synutar Intelligent Equipment Co., Ltd.- After-sales Service：24 Hours X 7days Online Service
- Warranty：1 Year for Machine, 2 Years for Laser Source
- Application：Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Applicable Material：Metal
Base Info
- Model NO.：SYF-5025,4060,6060
- Structure Type：Gantry Type
- Laser Classification：Solid Laser
- Laser Technology：Laser Control Fault Cutting
- Laser Type：Fiber Continuous Laser
- Laser Power：1000W,1500W,2000W
- Working Area：500X250mm,400X600mm,600X600mm
- Slit Width：0.1~0.5mm
- Assistance Gas Type：Nitrogen,Oxygen,Compressed Air
- Laser Wavelength：1070mm
- Cooling：Water Cooling
- Power Consumption：2kw~5kw
- Transport Package：Plywood
- Trademark：SYNUTAR
- Origin：China
- HS Code：8456110090
- Production Capacity：500sets,Year
Description
Basic Info.
Model NO. SYF-5025/4060/6060 Structure Type Gantry Type Laser Classification Solid Laser Laser Technology Laser Control Fault Cutting Laser Type Fiber Continuous Laser Laser Power 1000W/1500W/2000W Working Area 500X250mm/400X600mm/600X600mm Slit Width 0.1~0.5mm Assistance Gas Type Nitrogen/Oxygen/Compressed Air Laser Wavelength 1070mm Cooling Water Cooling Power Consumption 2kw~5kw Transport Package Plywood Trademark SYNUTAR Origin China HS Code 8456110090 Production Capacity 500sets/YearProduct Description
Synutar High Precision Fiber Laser Cutting Machine for Jewelry Gold, Silver, Copper(model SY-F5025/SY-F6040/SY-F6060) 1000W 1500W 2000W
Principle of laser cutting: Use a high-density laser beam to pass through the laser head to focus the laser, and quickly melt the metal materials. At the same time, the molten material is blown away by the high-speed airflow coaxial with the beam to achieve the purpose of cutting.
Introduction:
The precision fiber laser cutting machine adopts a marble-based gantry structure machine tool, synchronously driven by bilateral motors, and the beam is made of high-strength cast aluminum alloy to ensure cutting accuracy. The whole set of equipment is equipped with a dedicated laser cutting control system and an auto-following focusing system, which can realize automatic follow-up during cutting. The focus of the workpiece is adjusted in real time by bending and undulating to ensure the quality and accuracy of laser cutting. At the same time, it is equipped with an efficient dust removal system to create a good working environment.
Application:
Mainly used for cutting and perforating: gold, silver, copper, brass, stainless steel, carbon steel, aluminum, galvanized plates, titanium, and other metal plates. Used in jewelry, medical equipment, precision electronics, decoration, molds, mobile phone digital, sheet metal and hardware industries. Technical Parameters:
| Laser type | Fiber continuous laser |
| Laser power | 500W/700W/1000W/1500W |
| Working area | 500x250mm/400x600mm/600x600mm |
| X/Y axis repeat positioning accuracy | ≤±0.01mm |
| X/Y axis maximum positioning speed | ≤44m/min |
| Maximum cutting speed | ≤30m/min |
| Slit width | 0.1~0.5mm |
| Minimum setting unit | ≥0.1mm |
| Shielding gas type | Nitrogen/oxygen/compressed air |
| Cutting precision | ≤0.05mm |
| Laser wavelength | 1070mm |
| X/Y axis geometric positioning accuracy | ±0.02mm |
| X/Y axis maximum acceleration | ≤0.6g |
| Operating Voltage | 220V/50Hz |
| Equipment cooling method | Water cooling |
| Whole machine power consumption | 2~5KW |
