500W 750W 1000W 1500W 2000W Metal Fiber Laser Cutting Machine Dw-1530f

Jinan Dwin Technology Co., Ltd.
  • Warranty：24 Months
  • Application：Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Advertising Industry
  • Cooling System：Water Cooling
  • Technical Class：Continuous Wave Laser
  • Applicable Material：Metal
  • Structure Type：Gantry Type

Base Info

  • Model NO.：DW-1530F
  • Laser Classification：Fiber Laser Cutting Machine
  • Laser Technology：Laser Control Fault Cutting
  • Laser Source：1000W Raycus
  • Cutting Thickness：6-8mm
  • Optional Power：1000W
  • OEM：Accept
  • Drive Motor：Japan Yaskawa Servo Motor
  • Working Area：1300X2500mm
  • Control System：Cypcut
  • Laser Head：Lasermech
  • Rail：PMI 35
  • Transport Package：Plywood Box, Free From Fumigation
  • Specification：CE, FDA, SGS
  • Trademark：Dwin Made in China or Customized
  • Origin：Jinan Shandong China
  • HS Code：8456110090
  • Production Capacity：10 Sets Per Month

Description

Cutting range (length*width)1500*3000mm1500*4000mmaccording to demandsFiber laser generator mediumSemiconductor pump continuous ytterbium doped fiberMax moving speed100m/minMax cutting speed25m/minPositioning accracy0.03mmRepeated positioning accuracy0.02mmCooling typeWater coolingLaser output power500W/1000W2000W(option 200W/300W/1500W/3000W)Min line width0.1mmDrive systemServo motorPower allocation380V/220V±10%,50Hz/60HzContinuous working time24 hoursRelated weightWhole machine:approx 4 tons,actul weight based on final configuration(depends on model)Machine size(l*w*h)2.4*4.7*1.9m2.4*5.7*1.9mAccessories size (l*w*h)(take 500W for example)Water chiller 1*1*1.2m, control box 1*0.8*1.8m, fiber laser generator 0.5*0.6*0.14m



Application:
Mechanical and Electrical Equipment ,Stainless Steel Products,Construction and Decoration Industries,Billboard ,Sheet Metal Structure,High-low Voltage Electric Cabinet ,Kitchenware.Car Accessories,Saw Bits,Precision Metal Parts,Metal Artware,etc.


Applicable materials:
Stainless Steel Sheet  and Hollow Pipe ,Carbon Steel Sheet and Hollow Pipe ,Stianless Iron Sheet and Hollow Pipe ,Galvanized Sheet and Hollow Pipe ,Manganese steel ,Electrolytic plate,Aluminum Alloy ,Titanium Alloy ,Aluminum,Brass,Rare metal,etc.

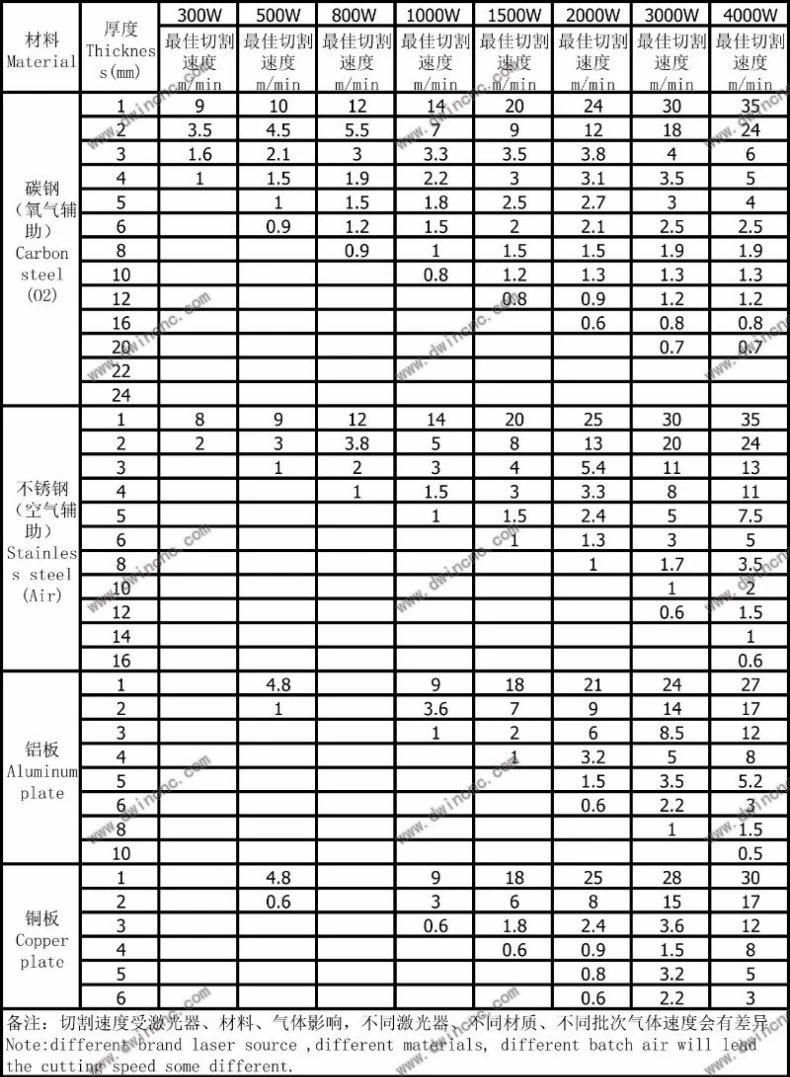

The thickness of the fiber laser cutting machine :
500W 750W 1000W 1500W 2000W Metal Fiber Laser Cutting Machine Dw-1530f

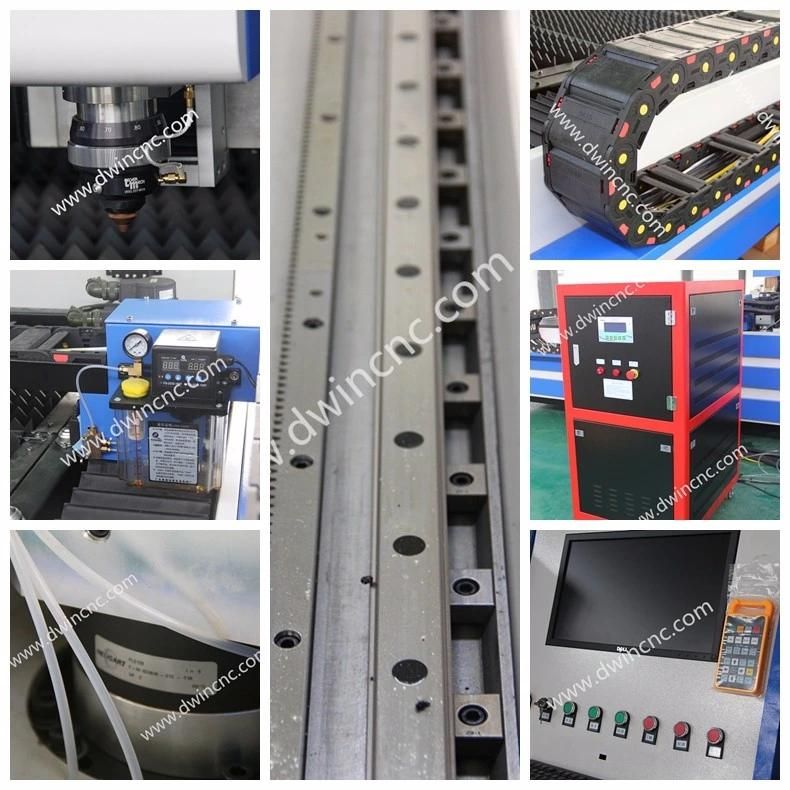

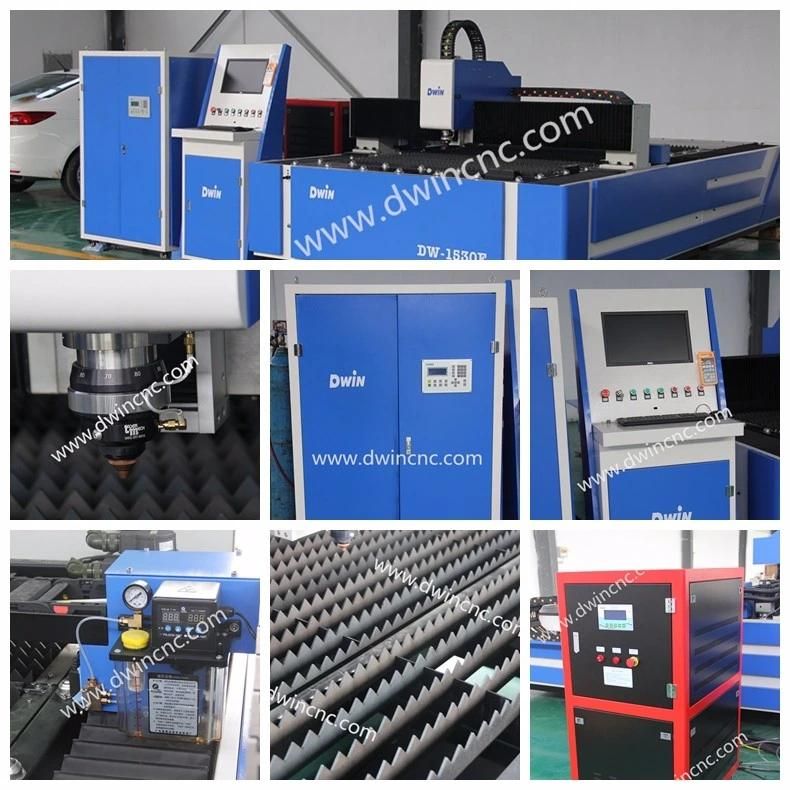

Details of cutter and the samples:

500W 750W 1000W 1500W 2000W Metal Fiber Laser Cutting Machine Dw-1530f
500W 750W 1000W 1500W 2000W Metal Fiber Laser Cutting Machine Dw-1530f

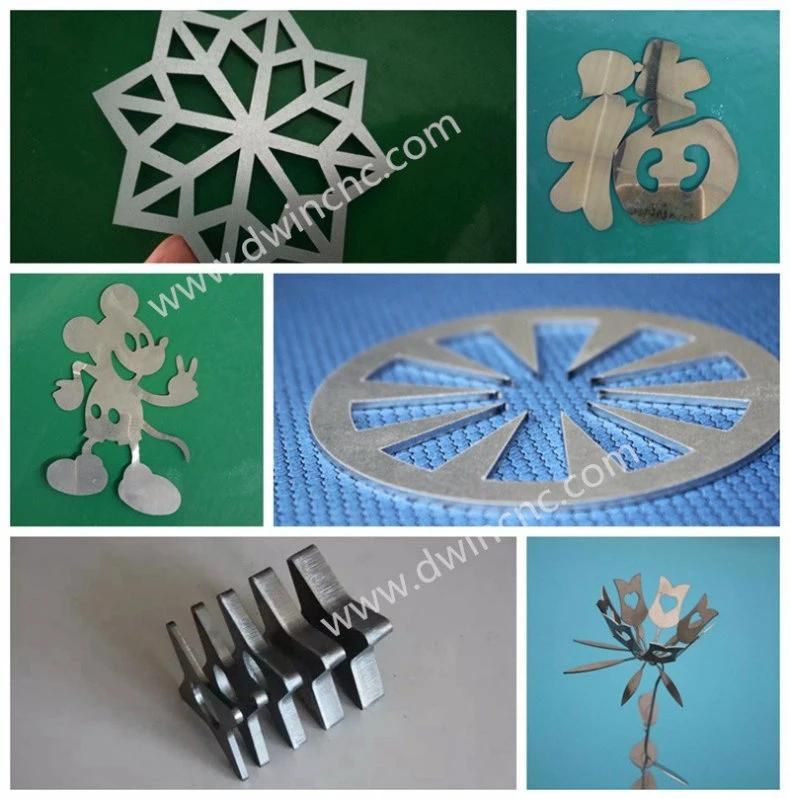

Fiber Laser Cutting Machine Samples:
500W 750W 1000W 1500W 2000W Metal Fiber Laser Cutting Machine Dw-1530f



Our service

Professional Service
From producing in our factory to shipping the goods directly to your port or company, we supply all-inone service for our customers.
With the rich experience of dealing with shipping issue and custom clearance, we can make the most economical delivery plan for you and ensure the quick leading time.
No matter your quantity is our MOQ or very big, we take each customer as the only one.

Warranty for the machine
1. Two years quality guarantee for the main parts of the machine, excluding consuming parts, and the main parts shall be changed free of charge during the warranty time
2. Lifelong maintenance for the machine, and lifelong technical support from sophisticated English-speaking engineer team.
3. Free training course at our plant
4. We will provide the machine consuming parts with factory price when you need replacement.
5. 12 hours online service each day, free technical support.
