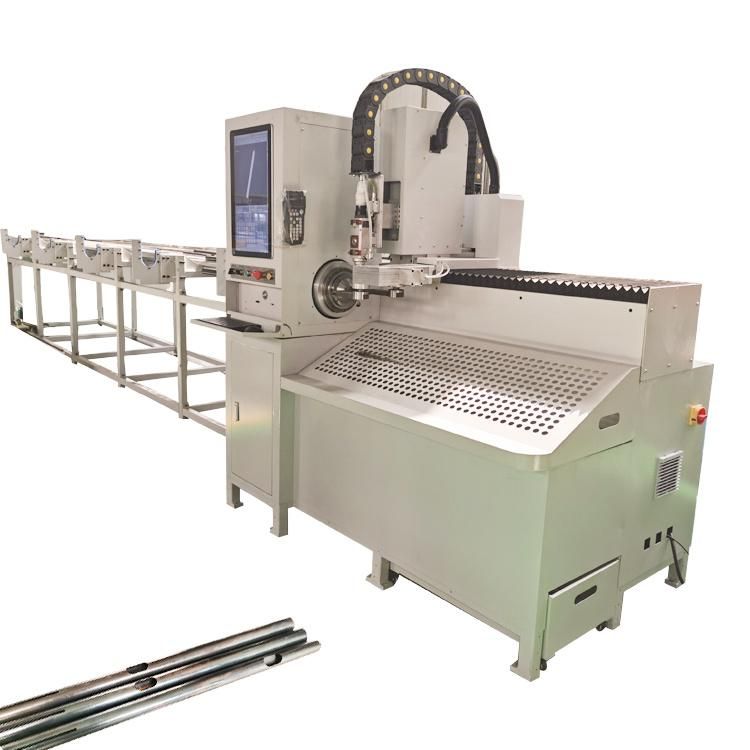

Br1000W 1000W CO2 Fiber Laser Pipe Tube Cutting Machine

Zhangjiagang Baorui Machinery Co., Ltd.
  • Application：Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Automotive Industry, Woodwork Industry, Advertising Industry
  • Cooling System：Air Cooling
  • Technical Class：Pulse Laser
  • Applicable Material：Metal
  • Structure Type：Gantry Type
  • Laser Classification：Fluid Laser

Base Info

  • Model NO.：BR1000W
  • Laser Technology：Laser Flame Cutting
  • Transport Package：Wooden Case
  • Specification：1000W
  • Production Capacity：500PCC,Year

Description

Br1000W 1000W CO2 Fiber Laser Pipe Tube Cutting MachineBr1000W 1000W CO2 Fiber Laser Pipe Tube Cutting MachineBr1000W 1000W CO2 Fiber Laser Pipe Tube Cutting Machine
Model BR70-C
Laser working mediumgas,air
Laser wavelength1070
Rated output powerRated power is laser power
Pipe processing range (long × pipe diameter)6000*65
Maximum cutting thickness of carbon steel pipe ≤
 		1000 W≤3 mm 1500 W≤4 mm 2000 W≤5 mm
Effectively cut pipe diameter≤mm 65
Effective pipe cutting length1000 mm
Y Shaft cutting stroke1000 mm
Electric requirements 1000 W 8.5KW 1500 W 11KW 2000 W 13.5KW
Cutting gas requirementsAir  2/3MPa
Machine size (length * width* height) 8300*1550*1700
Item NameSpecification Brand Unit  Qty
1 Equipment  Non-standardset1
2 Feeding system Uploading shaft +  Feeding mechanism set 1
3 Pneumatic card trayChuck Party A provides product data designPneumatic card plate Taiwanset1
4 Sizing mechanismModule Servo motorMitsubishi(Servo) set1
5 Fiber lasersWater-cooled single mode continuousChengxin Shenzhenset1
6 Control system PLC Mitsubishiset1

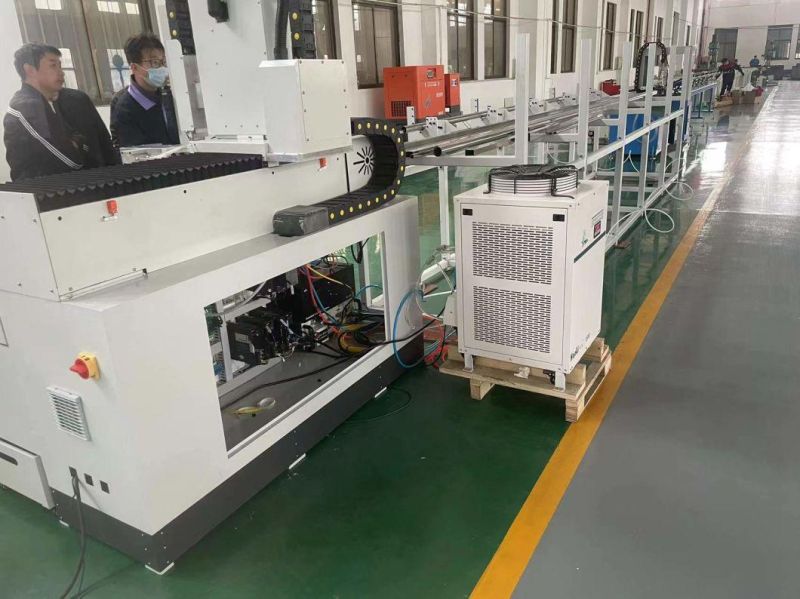

7 Cold water machine1500 WHanliset1
8 Rotary shaft70#(max process diameter 65) Mitsubishi(Servo)set 1

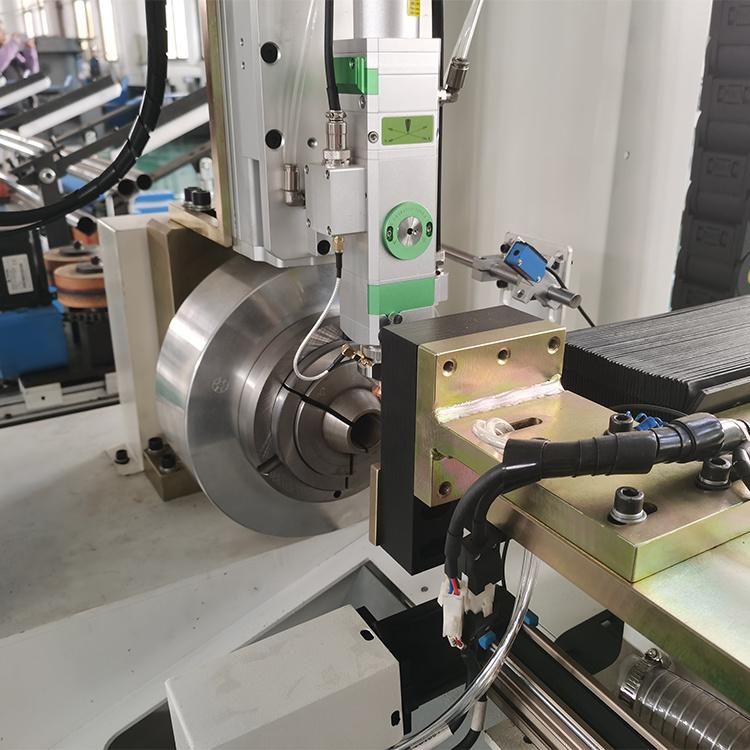

9 Laser cutting headA209 Ospreyset1
10Electronic  Schneiderset1
11pneumatic system AIRTACset1
12travel switch Omronset1
13Switch  Fuji
14Driver  Mitsubishi
