• Model NO.：TXT-TC-6000
• Structure Type：Gantry Type
• Laser Classification：Fiber Laser
• Laser Technology：Laser Cutting
• Transport Package：Wooden Package
• Trademark：TXT
• Origin：China
• HS Code：8456100090
• Production Capacity：50

Basic Info.

Model NO. TXT-TC-6000 Structure Type Gantry Type Laser Classification Fiber Laser Laser Technology Laser Cutting Transport Package Wooden Package Trademark TXT Origin China HS Code 8456100090 Production Capacity 50

Product Description

Product Description


The Professional tube fiber laser cutting machine produced by our company is a cost-effective
equipment, which composed by the fiber laser system, chiller, laser cutting head, rotary device,clamping device, control system, gas blowing system,exhausting system as the laser, motion,
electricity integrated product.  It is designed for cutting different kinds of tubes only.
(1) Adopt with High-efficiency fiber laser system, which has high conversion efficiency of
photoelectric,stable performance.The life of key parts can reach up to 100 Thousand
hours.
(2)The fiber laser system has the better laser beam quality,lower maintenance cost and
fewer troubleshooting, it is easy to operate as the laser sent by fiber cable and no need
to adjust the laser path.
(3)Compared with other media of laser equipment,it has the characters of smaller focus
facula, higher cutting efficiency and good-quality processing.
(4)The machine body adopts the gantry structure, use high precision rack and pinion with double drive system, it is more stable for high-speed cutting and long time use.
(5)Adopting the professional numerical control system FSCUT2000,which support
various file formats to input,easy to operate,equipped with automatic laser cutting
programming
(6)Adopting Lasermech cutting head from USA, ensure to get the perfect cutting effect.


Technical Parameters



Model	TXT-TC-6000
Laser power	1KW/1.5KW/2KW/3KW/4KW/6KW
Laser wavelength	1064nm
Pipe/tube cutting length	6000mm (3000mm/4000mm optional)
Max Cutting thickness	0.5-25mm (carbon steel)
Max Pipe/tube diameter	110mm/160mm/220mm/600mm (Optional)
Pipe/tube kind	Round pipe/square pipe/rectangular pipe/oval pipe
Cutting precision	≤0.02mm
Min. Line width	≤0.12mm(depend on material)
Max cutting speed	20m/min(depend on material)
Control system	FSCUT2000
Driving way	Rack and pinion
Cooling way	Constant water cooling
Electricity	AC380V/50HZ/100A
Machine weight	3000KGS
Machine size	8500mm*1500mm*1800mm

Application

It can be used for cutting the different kinds the metal pipe/tube, like carbon steel, stainless steel,alloy steel,silicon steel,galvanized steel sheet and the round pipe/square pipe/rectangular pipe/oval pipe.
It can be widely applied in the infrastructure industry of aviation, metallurgy, vessel, sheet
metal equipment, as well as other manufacturing industry, such as machinery, electrical
equipment, elevator, appliance, medical devices, hardware, decoration, advertisement,
metal cutting service, etc.

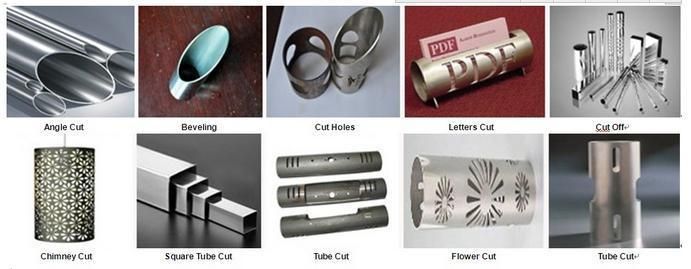

Sample Show
