1530 Raycus Metal Cutting Machinery High Precision Fiber Laser Cutting Machine Price
Jinan Laser Max Machinery Tech Co., Ltd.- Warranty：3 Year
- Application：Petroleum Machinery Manufacturing, Agriculture Machinery, Automotive Industry, Advertising Industry, Metalwork Industry
Base Info
- Model NO.：LM-1530
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Applicable Material：Metal
- Structure Type：Gantry Type
- Laser Classification：Semiconductor Laser
- Laser Technology：Laser Control Fault Cutting
- Working Area for Metal Sheet：3000*1500mm
- Y-Axis Stroke：3000mm
- X-Axis Stroke：1500mm
- Z-Axis Stroke：120mm
- X/Y Axis Position Accuracy：0.03mm
- X/Y Axis Reposition Accuracy：0.02mm
- Max. Moving Speed：100m,Min
- Maximum Acceleration：1.0g
- Transport Package：4600mm*2450mm*1700m
- Specification：3000kg
- Trademark：LaserMax
- Origin：China
- HS Code：845611
- Production Capacity：1000 Sets,Year
Description
Remark: The purity of gas can be below 99.9% above 95%. The higher purity is, the better cutting quality will be.
Working Temperature ≤0ºC:Pour ethyl alcohol into the water chiller not more than 1/4 of the chiller's volume

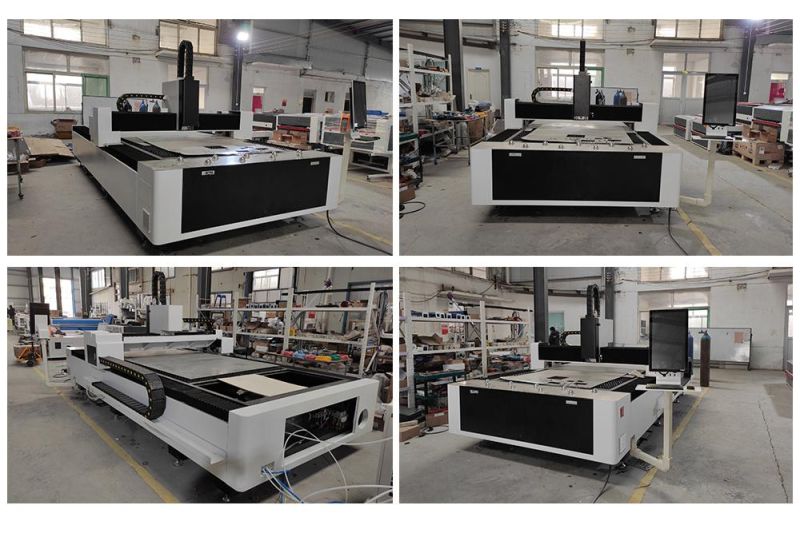

Machine Show
Working Temperature ≤0ºC:Pour ethyl alcohol into the water chiller not more than 1/4 of the chiller's volume

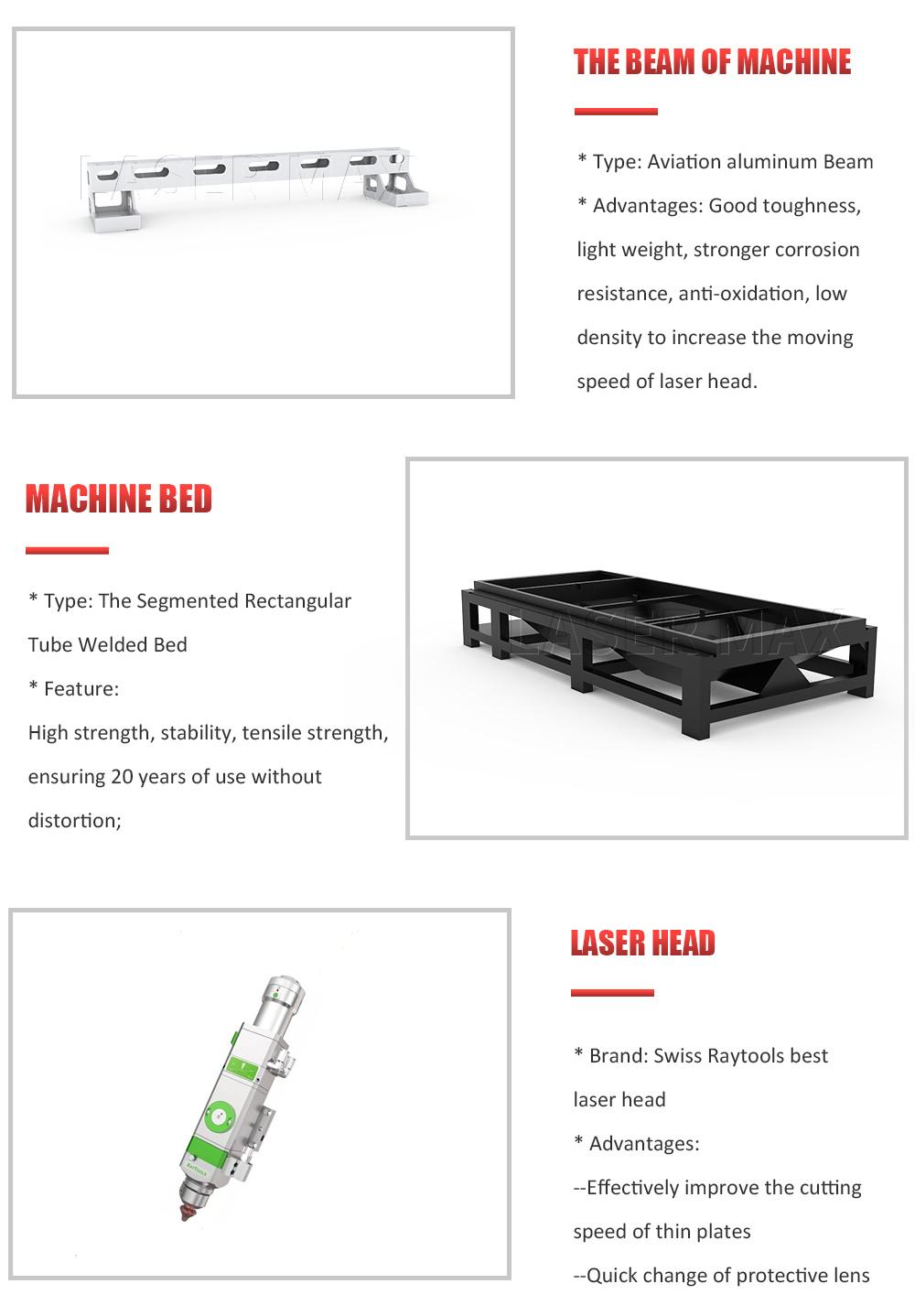

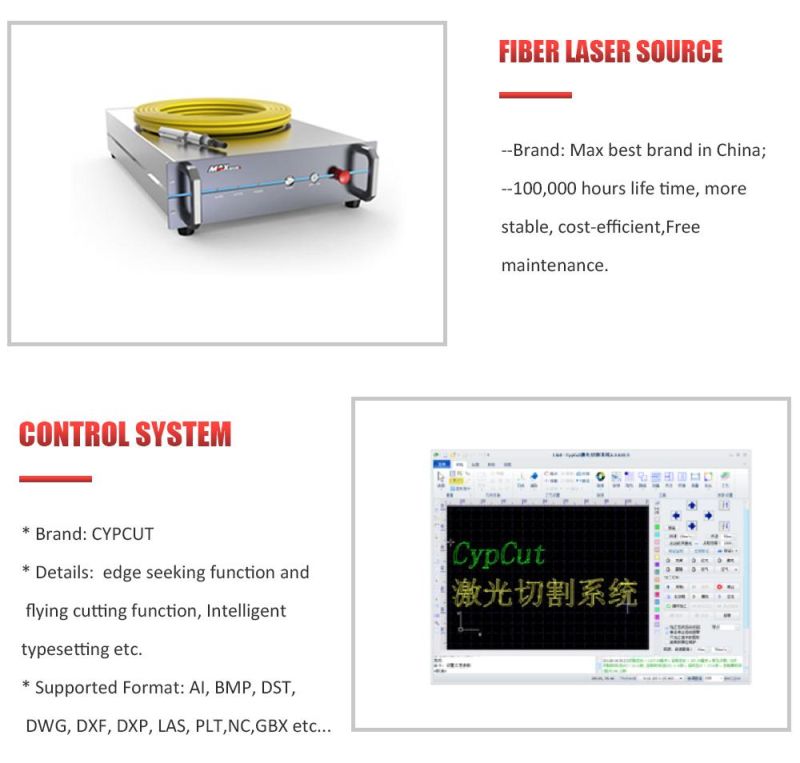

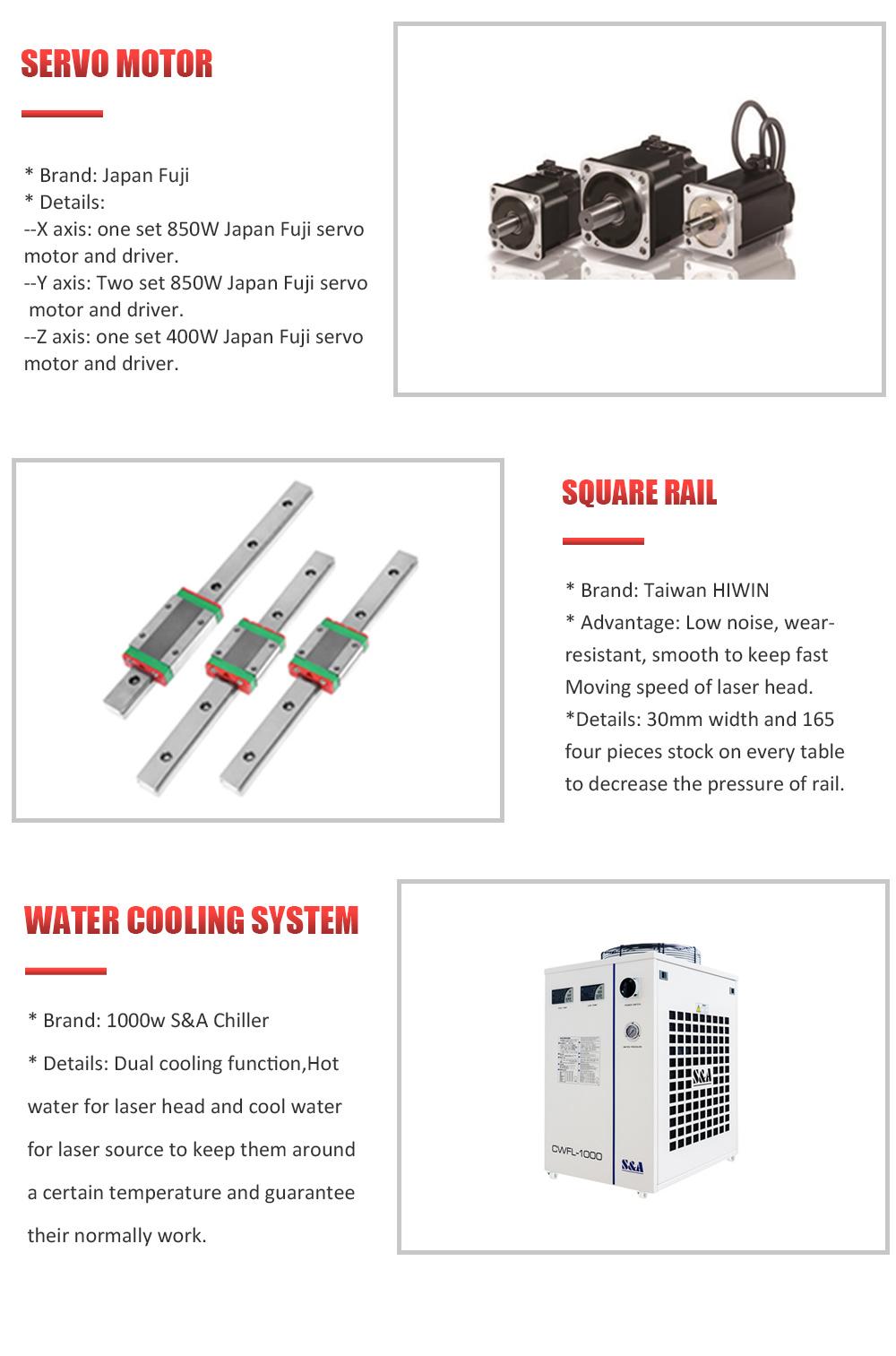

Main components
Machine ShowProduct Process
Milling machine mill fiber machine guide rails and machine gantry and machine body. This way let machine has higher precision and machine working more stable when machine working
This is Laser interferometer for testing machine precision and using this Laser inte- rferometer to improve machine precision carefully. only few companies in China use this Laser interferometer to test machine precision. In Jinan only our company use Laser interferometer to test machine precision.
