3015 CNC Fiber Laser Cutting Cutter Machine for Metal Brass Carbon Steel Stainless Aluminum Copper 2.5mm 3.5mm Tube1kw 2kw 3kw 4kw 6kw CE FDA

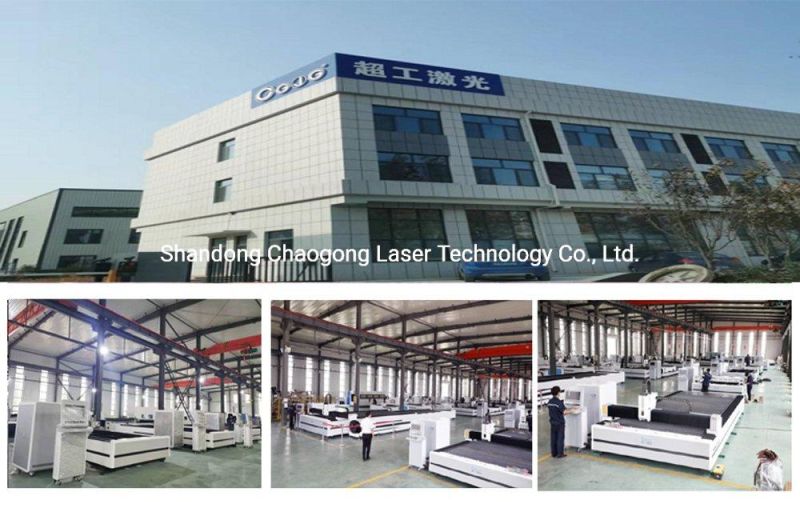

Shandong Chaogong Laser Technology Co., Ltd.- After-sales Service：24 Hours Online
- Warranty：2 Years
- Application：Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Applicable Material：Metal
Base Info
- Model NO.：CG-3015F
- Structure Type：Gantry Type
- Laser Classification：Solid Laser
- Laser Technology：Laser Control Fault Cutting
- Cutting Head：Raytools
- Repostion Accuracy：0.02mm
- Position Accuracy：0.03mm
- Laser Source Brand：Raycus ,Max,Ipg(Optional )
- Cutting Speed：1--30m,Min
- Machine Name：Metal Plate Fiber Laser Cutting Machine
- Application Material：Metal Sheet Iron,CS,Ss,Aluminum,Copper
- Servo Motor and Driver：Japanese Yaskawa Servo Motor and Driver
- Working Area：1500*3000mm
- Control System：Cypcut2000
- Laser Source Power：1000W,1500W,2000W,3000W,4000W
- Transport Package：Standard Wooden Case
- Specification：1500mmx3000mm , 2000mmx4000mm , 2000mmmx6000mm
- Trademark：CE, ISO, SGS
- Origin：China
- HS Code：8456110090
- Production Capacity：100sets,Month
Description
FAQ1.What is fiber laser?
A fiber laser is a special type of solid state laser. Generally, fiber lasers are optically pumped. This is done by coupling the
radiation of diode laseers or other fiber lasers into the cladding or the core itself in a direction parallel to the fiber core. In many cases, double clad fibers are used in order to achieve higher output power.
What's material can fiber laser cut?
All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, copper, etc.
2.Which fiber source does Vmade applied?
IPG - Made in USA.
Raycus- Made in China;
Maxphotonics - Made in China;
3.What is Chaogong Fiber laser advantages?
>Excellent beam quality (light-concentrating beam from optical fiber)
>Simple , compact, electrically and optically efficient (small footprint and low power consumption by fiber amplification)
>Compatibly powerful and reliable (realized by high brightness, high power semiconductor lasers as pumping light)
>Maintenance free (the entire optical fiber setups without lenses, mirrors)
>multilingual, more than 11 foreign languages
>2 years warranty .
4.What's the function of fiber laser?
Fiber Laser is only used to cut metals like Stainless Steel, Carbon/Mild Steel, Galvanized Steel, etc. Non-metal is not ok.
5.What's the max. cutting thickness?
Cutting thickness is related to laser power.
1000W: 5mm stainless steel, 12mm carbon steel
2000W: 10mm stainless steel, 18mm carbon steel
3000W: 10mm stainless steel, 20mm carbon steel, 10mm aluminum, 7mm brass, 4mm copper
4000W: 12mm stainless steel, 22mm carbon steel, 10mm aluminum, 10mm brass, 6mm copper
Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass and other high reflection sheet me
