• Laser Power：200W
• Wavelength：1064nm
• Pulse Width：0.3-20ms
• Pulse Frequency：1-100Hz
• Aim at Positioning：Red Light
• Minimum Spot Diameter：0.2mm
• Ocusing Mirror：F=110mm
• Beam Expander：Three Times
• Protective Lens：Φ20mm
• Consumables：Xenon Lamp, Protective Lens
• Gross Power：8kw
• Electricity Demand：AC220V
• Cooling System：Water Cooling
• Size：Machine:60*100*121cm Chiller:47*60*88cm
• Operating Environment Requirements：Temperature 0-40ºC,Humidity 20%-80%
• Transport Package：Wooden Case Parking
• Specification：50*85*60cm
• Trademark：Dapeng Laser
• Origin：Shenzhen,China
• HS Code：8515809090
• Production Capacity：300 Sets,Year

Basic Info.

Laser Power 200W Wavelength 1064nm Pulse Width 0.3-20ms Pulse Frequency 1-100Hz Aim at Positioning Red Light Minimum Spot Diameter 0.2mm Ocusing Mirror F=110mm Beam Expander Three Times Protective Lens Φ20mm Consumables Xenon Lamp, Protective Lens Gross Power 8kw Electricity Demand AC220V Cooling System Water Cooling Size Machine:60*100*121cm Chiller:47*60*88cm Operating Environment Requirements Temperature 0-40ºC,Humidity 20%-80% Transport Package Wooden Case Parking Specification 50*85*60cm Trademark Dapeng Laser Origin Shenzhen/China HS Code 8515809090 Production Capacity 300 Sets/Year

Product Description

Our core advantages:

1) Top 5 laser company in China. Sold 4500 units of laser machines in China market in 2017, with best price.
2) Usually have 50 units of laser marking machine(Fiber, CO2, UV, Mopa) in stock, lead time 3-5 days.
3) Fiber Laser cutting machine, (700W, 1000W, 1500W laser cutter), usually sell 30 units/month in China.

We are looking for distributor. Price is more competitive.
Videos: dplaser.en.made-in-china.com    dplaser.en.made-in-china.com

High speed, high efficiency, deep, small deformation, small heat effect area, high welding quality, pollution free welding spot.
Jewelry laser welder is mainly used in perforating and spot welding of white gold, platinum, carbon steel. The spot welding process is thermal conduction, i.e. the laser radiation heats the surface of work piece, and the surface heat diffuses to the interior through thermal conduction and melts the work piece by controlling the width, energy, peak power and repeating frequency of laser pulse to form specific molten pool.

Features:
1. Ceramic converging cavity is imported from UK. Good performance of corrosion resistant and high temperature resistant. The life of xenon lamp is: Max 5 million times.

2. Able to work for 24 hours continuously, stable performance; Human-based design accords with ergonomics, avoiding fatigue after long time working.
 3. Widely used in jewelry accessories, electronic components, glasses clocks and watches, hardware, precision equipment, medical equipment, auto parts, gifts and crafts, etc.







Technical Parameters:

Laser power	200W
Laser wavelength	1064nm
Pulse frequency	1-100Hz
Pulse width	0.3-20ms
Spot size	0.2-2mm
Power require single phase	Single phase 220 ±15% VAC 50Hz 30A
Spot adjustment	Manual
Cooling system	Water cooling
Laser power source	8KW with touch screen
YAG Laser crystal rod	Φ7*145mm
Laser Xenon lamp	Φ8*125*270mm
Microscope	x10
Ceramic converging cavity	import from UK
Focusing mirror	F=110mm
Beam expander	Three times
Protective lens	Φ20mm
Consumables	Xenon lamp, protective lens

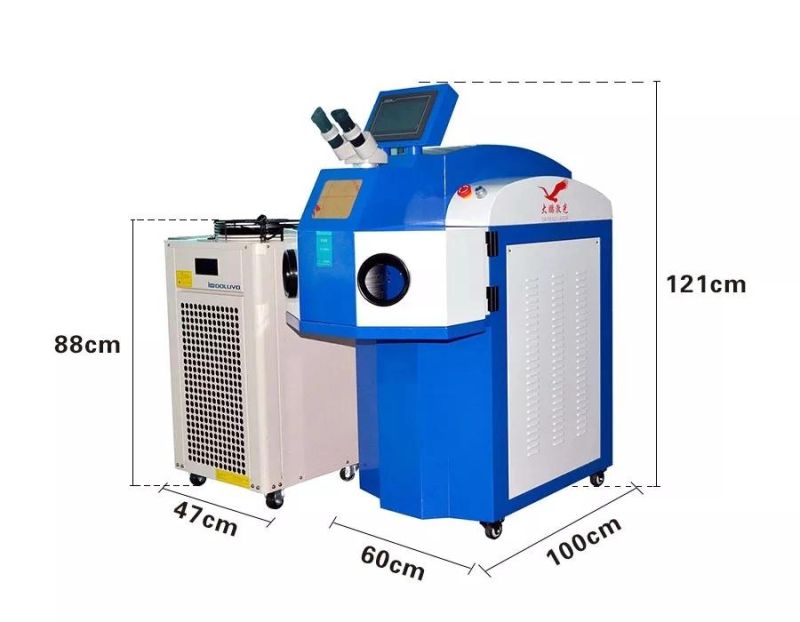

Dimension	Machine:60*100*121cm Chiller:47*60*88cm
Weight	220Kg

Standard accessories:

1. Laser power supply, 1 set
2. Laser crystal rod, 1set
3. Focus mirror & Beam expander, 1 set
4. Ceramic converging cavity, 1set
5. Microscope x10, 1set
6. Xenon lamp, 1set
7. Protective lens, 1set
8. Cooling system, 1set
9. Foot switch, 1 set
