• Model NO.：LF50F
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Array Type Marking
• Name：Fiber Laser Marking Machine
• System Language：English
• Touch Screen：Yes
• Lead Time：5 Days
• Standard Package：Wooden Case
• Laser Wave：1064nm
• Marking Range：110 mm X 110 mm (Can Be Customized)
• Pckage Size: 150X55X45cm：Wooden Case Package
• Transport Package：Wooden Case
• Specification：CE, SGS
• Trademark：CYCJET
• Origin：Shanghai
• HS Code：8456110090
• Production Capacity：300units,Month

Basic Info.

Model NO. LF50F Type Optical Fiber Laser Marking Machine Marking Method Array Type Marking Name Fiber Laser Marking Machine System Language English Touch Screen Yes Lead Time 5 Days Standard Package Wooden Case Laser Wave 1064nm Marking Range 110 mm X 110 mm (Can Be Customized) Pckage Size: 150X55X45cm Wooden Case Package Transport Package Wooden Case Specification CE, SGS Trademark CYCJET Origin Shanghai HS Code 8456110090 Production Capacity 300units/Month

Product Description

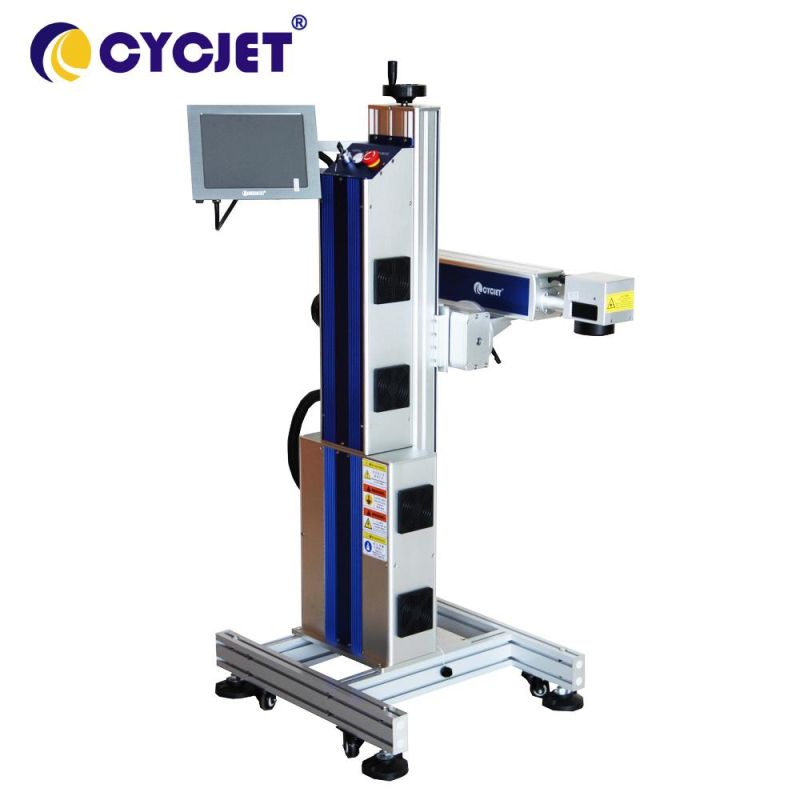

Product Picture:

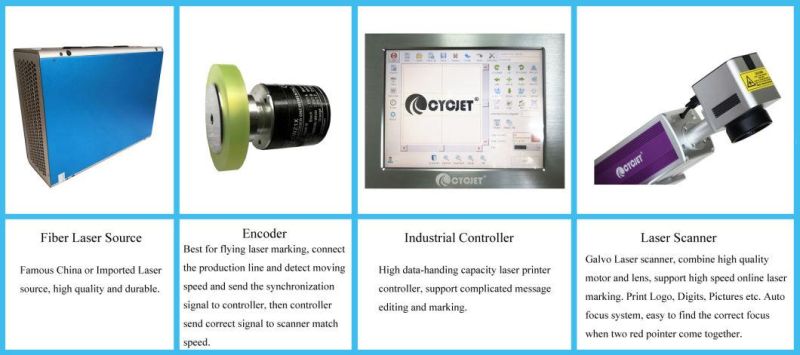

Components of Machine:



Characters:

• Laser oscillation in the fiber optical wave, low dissipation, good stability and is not affected by external dust gas and mechanical looseness, the output of a laser beam is stable.

• 100000 hours of free maintenance.
• Processing speed is 2 to 3 times the traditional laser marking machine.
• Wind cooling fiber laser, no consumables, low maintenance, high photoelectric conversion rate, low consumption (800 w) or less, use cost.
• Integrated design, small size (there are a whole cabinet and portable optional).

• Environmental adaptation ability strong can be in vibration, shock, dust, humidity environment continuous work, easy to implement with optical fiber coupling, which can realize remote work.

Application Scope:



Suitable for electronic components, electrical products, IT industry, auto parts, hardware tools products, precision instruments, gift accessories, medical equipment and other high-end products of precision, fine logo printing. Typical applications such as, plastic (PA66) insulation flying laser marking, metal plate laser marking, packing box body online laser marking, etc.

Parameters:
Details and Specifications:

Specifications

Output Power: 50W Beam quality M2: <2 Laser wavelength: 1064 nm Air cooling Pulse frequency: 20 KHZ - 100 KHZ Marking range: 110 mm x 110 mm (can be customized) MarkingSpeed:7000mm/s Marking Depth: ≤0.3mm Marking Line Width: 0.01-0.2mm (based on difference material) Min character Size: 0.015mm. Repeat accuracy: + / - 0.003 mm Marking area locating: Red-light locating system. Power supply: AC 100-260 v 50/60 hz Power: ≤800W

Delivery&Package

Delivery Time: 3-7 days after received Advance Payment By Vessel or Air Plane Standard Package: Wood Carton, Carton Box

CYCJET AT EXHIBITION:
