Max Laser Spot Cw Welder Equipment Portable Laser Welding Machine with Auto Wire Feeding System
Maven Laser Automation Co., Ltd.- Application：Biomedicine, Electronic Industry, Automotive Industry, Powder Metallurgy, Manufacturing Industry
- Technical Class：Continuous Wave Laser
- Control：Automatic
- Power Density：Cw ,Pulse ,Qcw Mode
- Laser Classification：Raycus
- Type：Automatic Laser Welding Machine
Base Info
- Transport Package：Wooden Crate
- Specification：990*540*1030mm
- Trademark：MAVEN
- Origin：Shenzhen
- HS Code：8515809090
- Production Capacity：200sets,Monthes
Description
Model No.
MLA-W-H1000
Product Name
fiber laser welding machine
Wavelength
1070+/-10 nm
Laser power
800W,1000W,1500W
Power adjustment
10~100%
Laser spot diameter
QBH
Fiber length
Standard 10m or specify
Working methods
CW/ Pulse/QCW mode
Speed range
0~120mm
Weld thickness
0.5-6mm
Welding gap requirement
<=1mm
Modulation frequency
20Khz
Turn on/off time
20Us
Working temperature
15-35ºC
Power supply
220V/50Hz/30A
Chilling methods
Water chilled inbuilt
Machine size
990X540X1030mm
Net weight
180kg

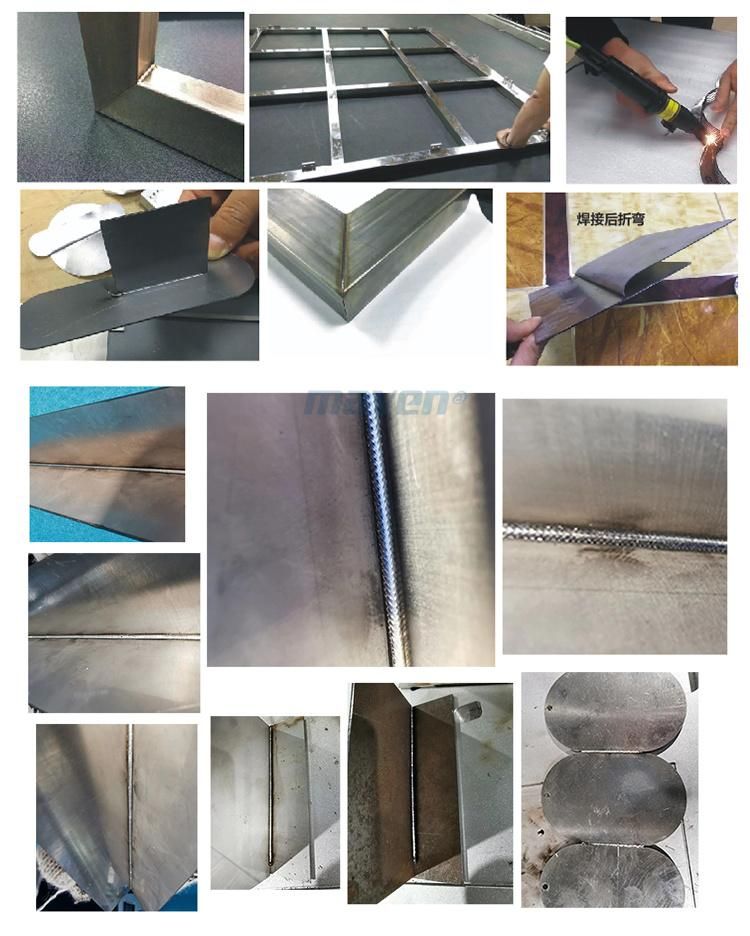

Figures and Samples

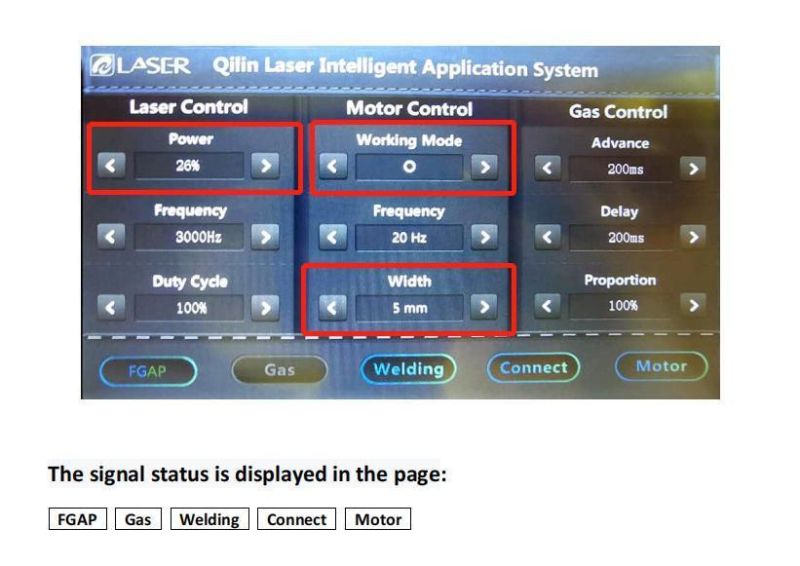

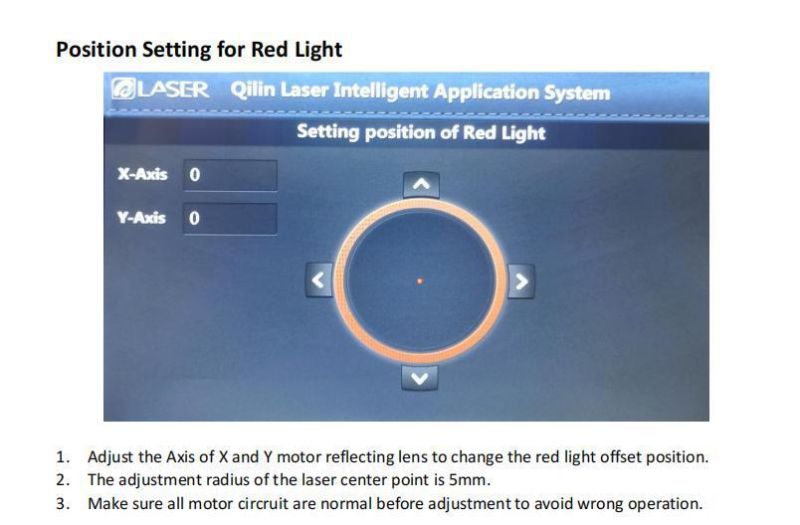

Safety and Software
Our Services Company InformationFAQ
Q1: I know nothing about this machine, what type of machine should I choose?
We will help you choose the suitable machine and share you our best solution;
You can share us what kind of material you're gonna mark/ engrave on.
Q2: When I got this machine, but I don't know how to use it. What should I do?
We can send operation video and manual for the machine. Our engineer will do training online.
If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q3: If some problems happen to this machine, what should I do?
We provide a full two-year machine warranty.
Any problems happened under warranty, components will be provided for replacement or repairement free of charge.
If over the warranty, we still provide excellent service.
