• Engraving Method：Vector Engraving
• Working Area：1300*900mm
• Laser Power：60W ,80W ,100W, 150W ,180W
• Engraving Speed：0-64000mm,Min
• Cutting Speed：0-36000mm,Min
• Preposition Accuracy：0.1mm
• Cutting Platform：Blade or Honeycomb Table
• Driving System：Stepper Motors
• Power Supply：AC220V 50Hz
• Certification：CE FDA ISO
• Transport Package：Wooden Box
• Specification：1600*1200*1100mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Engraving Method Vector Engraving Working Area 1300*900mm Laser Power 60W /80W /100W/ 150W /180W Engraving Speed 0-64000mm/Min Cutting Speed 0-36000mm/Min Preposition Accuracy 0.1mm Cutting Platform Blade or Honeycomb Table Driving System Stepper Motors Power Supply AC220V 50Hz Certification CE FDA ISO Transport Package Wooden Box Specification 1600*1200*1100mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

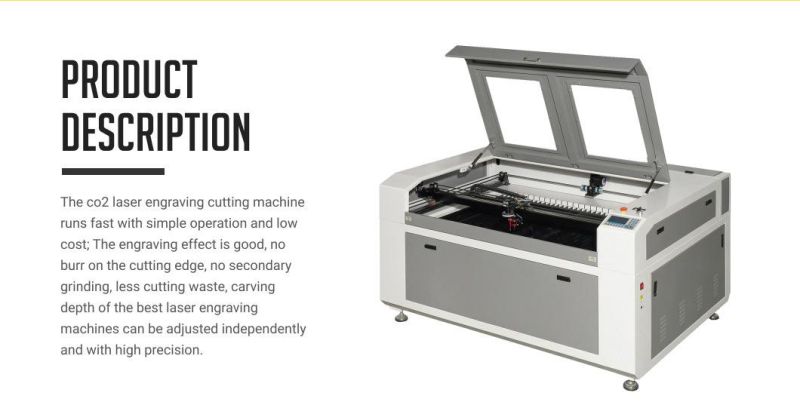

Product Description

1390 1610 1410 1325 CO2 Laser Cutting Machine for /Bamboo/ Leathe/MDF/ Wood/Glass/PVC/Paper CNC Laser Engraving Machines


  PRODUCTION :


Main specification:

1.use Taiwan linear guide rail(HIWIN)

2.3 reflected mirrors and 1 focus lens

3.Honeycomb

4.Exhaust fan

5.Air compressor

6.industry chiller(S&A ,CW5200)

7.Stepper motor*2

8.CNC control system

9.CX Cutting System

  TECHNICAL  PARAMETER :


Model	MAN-1390
Working area	1300*900mm
Laser power	60w/80w/100w/Option
Laser type	Sealed CO2 laser tube
Cooling type	Water cooling
Engraving  speed	0-60000mm/min
Cutting speed	0-30000mm/min
Laser output control	0-100% set by software
Min engraving speed	Chinese: 2.0mm*2.0mm, English letter: 1.0mm*1.0mm
Locating precision	+0.01mm
Controlling software:	DSP control system
Graphic format supported	DST PLT BMP DXF DWG AI LAS,etc
Compatible software	TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,etc
Color separation	Yes
Drive system	High-precision stepper motor
Auxiliary equipments	Exhaust fan and air exhaust pipe
power supply	AC110V-220V+10%,50HZ/60HZ
Working environment	Temperature:0-45, Humidity 5-95%(No condensate water)
Optional parts	up&down table, Auto-focus device, rotary device etc

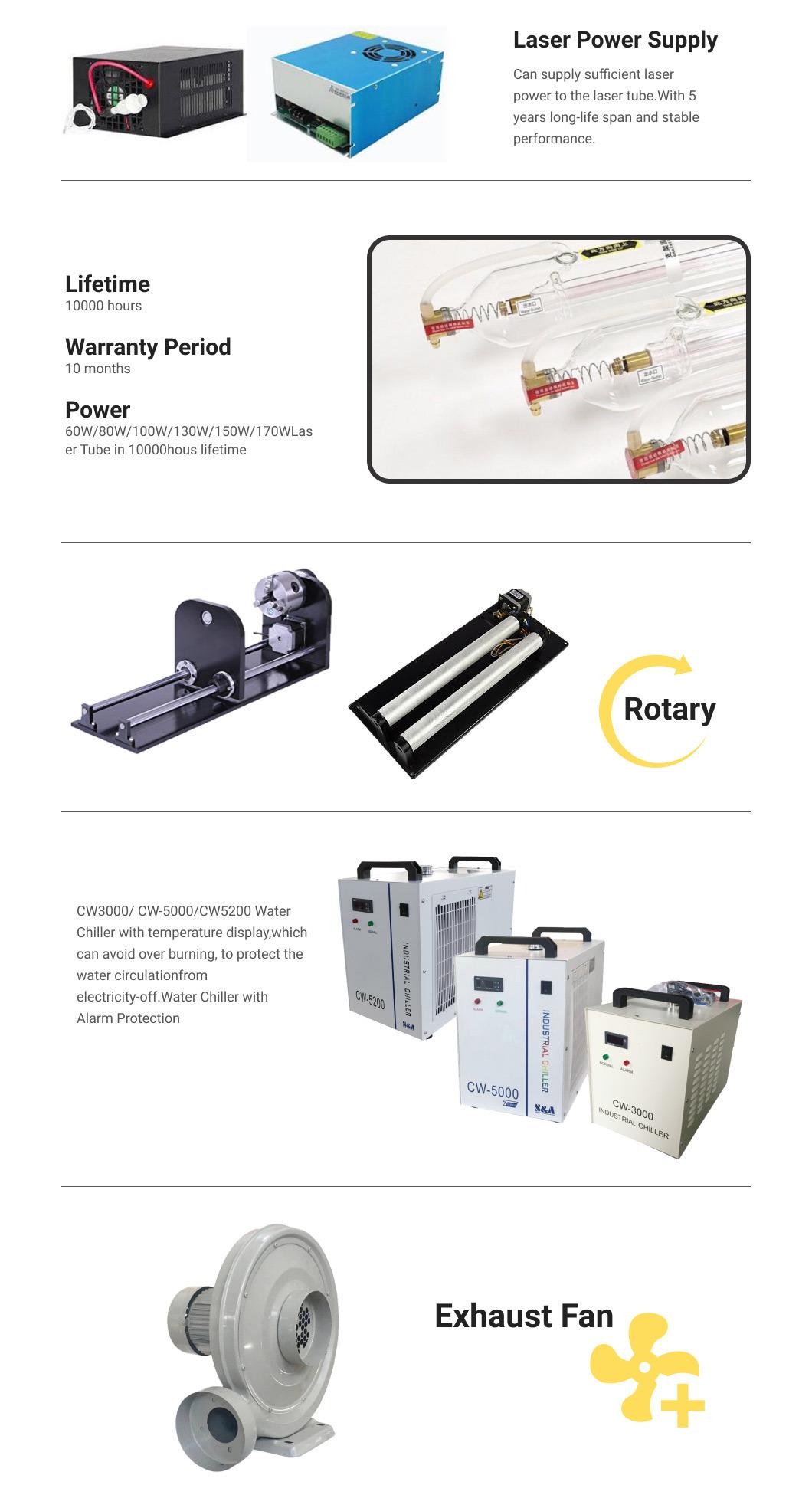

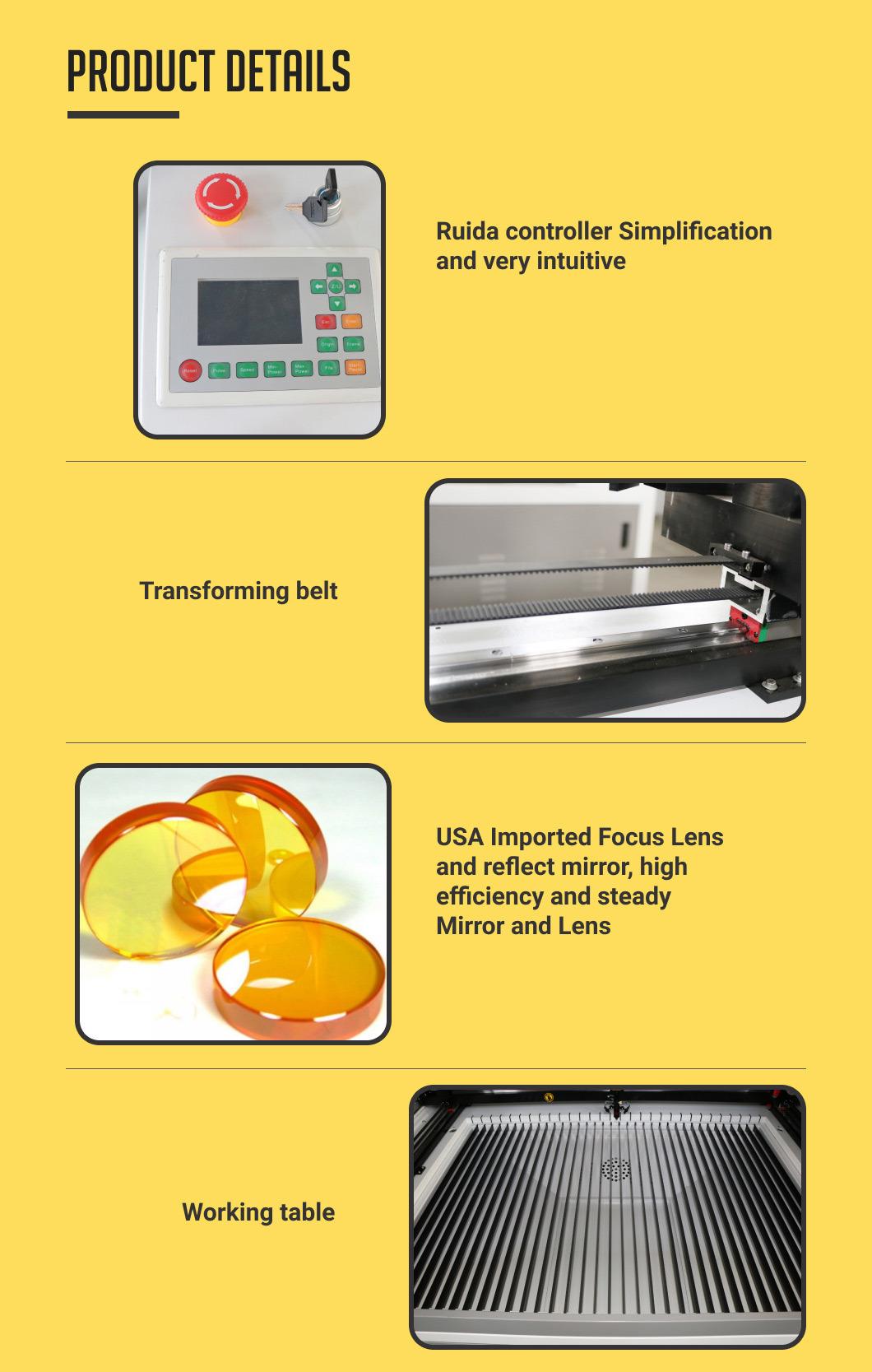

  DETAILS  IMAGES :

Feature :


1) Working Area:600*900mm,this can be customized as your requirements

2) Laser power:60w 80w 100w 150w - you can choose RECI laser tube,working hours:8000-10000 hours

3) DSP control system - with only a few buttons very easy to use

4) Knife worktable - suitable for hard materials such as wood,acrylic,you also can choose honey comb table use for soft materials such as

leather,fabric etc.

5) High resolution laser head.-good quality and long lifetime

6) Water pump-used for cooling laser tube to protect it has long life.

7) Air pump/Compressor.-cooling the laser head to avoid the materials being burned.

8) Exhaust fan - Blow away the smoke

9) USB cable-To connect the machine and computer.

10) Tool box-Included the CD,User manual,and some wrenches for your work.


SAMPLE  SHOW :

 PACKAGING &  SHIPPING  :

Packages:

Firstly our worker will make sure your machine clean before package, then add Stretchy film for the whole machine and spare parts for sweet

protection, at last we will make export standard strong plywood case package according to your needs.

Transport:

We will provide various ways of transportation.

1 By sea  / 2 By air  / 3 By train  / 4 By car



  SERVICES  :

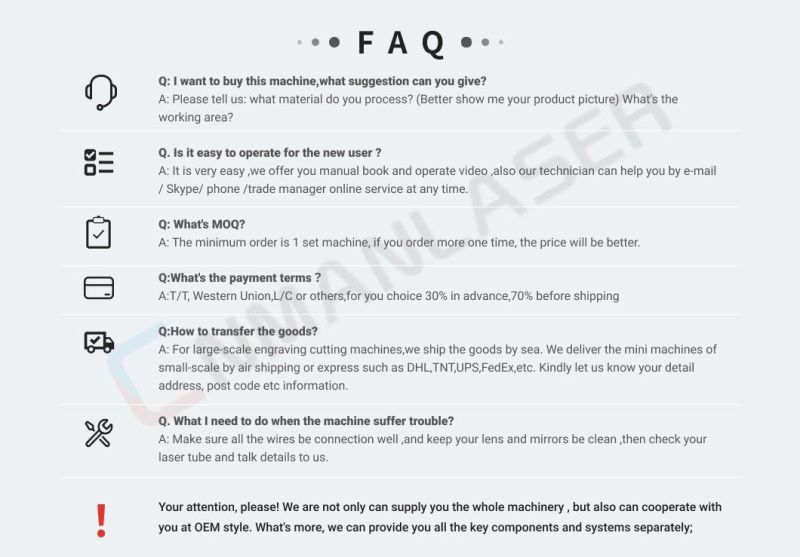

FAQ  :
