Automotive 3D Car Foot Mat Blended Fabric Digital Cutting Machine

Jinan Zhuoxing Intelligent Technology Co., Ltd.
  • After-sales Service：Online Training
  • Warranty：One Year Warranty Time
  • Application：Home Appliance, Automotive Industry, Shoemaking Industry, Advertising Industry
  • Cooling System：Air Cooling
  • Technical Class：Knife Cutting
  • Applicable Material：Nonmetal

Base Info

  • Model NO.：1625VA
  • Structure Type：Gantry Type
  • Laser Classification：Knife Cutting System
  • Laser Technology：Knife Cutting
  • Name：Fabric Cloth Oscillating Vibrating Knife Cutting
  • Working Voltage：380V,3 Phase
  • Type：Knife Cutting Machine
  • Power：11kw
  • Fixed Mode：Flate Plate Table ,Auto Feeding Plate
  • Optional Cutter Head Function：Vibrate Full Cut; Kiss Cut; V-Cut; Rotary Cut
  • Safety Device：Using Infrared Sensors, Responsive
  • Repated Accuracy：≤ 0.1mm
  • Transport Package：Plywood Package for Exporting
  • Specification：350*220*150CM
  • Trademark：Zhuoxing
  • Origin：Jinan, China
  • HS Code：8479899990
  • Production Capacity：200 Sets Per Month

Description

Technical Parameters:ModelZX-1625VACutting Tools RecommendedDriven Rotary Knife, Oscillating Knife Working Area1600*2500(W*L) mm Rated Power11kwMax. Cutting Speed1200mm/sNo-load Speed1500mm/sCutting Thickness0.1-110mm (depending on the materials)Cutting Accuracy±0.1mmTransmission InterfaceEthernetDrive SystemServo motor, linear guide rail, rack and pinionMaterial Fixed ModeVacuum adsorptionFormat SupportedDXF, PLT, etcOperation PropertyOnline/offline operation, continuous cutting with high efficiency, 7*24 hours with zero downtimeSafety DeviceInfrared sensing device, 4 emergency stop buttons, intelligent anti-collision devicePower SupplyAC 110V/220V/380V, 50/60Hz, single/three phaseDimension3300x2250x1450mmWeight1000kgAutomotive 3D Car Foot Mat Blended Fabric Digital Cutting Machine

Features :

1. The platform detection device regulates the knife pressure automatically, enabling a level platform and perfect cutting.

2. The high precision ZX CNC oscillating knife leather cutting machine can induce draft separately and easily cuts small pieces.

3. The anti-collision and the built-in auto-sensing devices ensure the security of AOL cnc oscillating knife leather cutting machine.

4. High efficiency can be realized without making a high-cost knife model.

5. The high precisionCNC oscillating knife leather cutting machine is designed for production with small quantities and can save on costs while maintaining speed and accuracy.
Automotive 3D Car Foot Mat Blended Fabric Digital Cutting Machine

Samples

 Using cnc knife cutting technology, our digital cutter machine has no burning and totally environmently. It's equipped with plotting pen, oscillating cutting tool, creasing tool, and drag knife tool to meet customers' different requirements. The heavy duty drag knife tool is available for special materials of the sign making industry.
Automotive 3D Car Foot Mat Blended Fabric Digital Cutting Machine

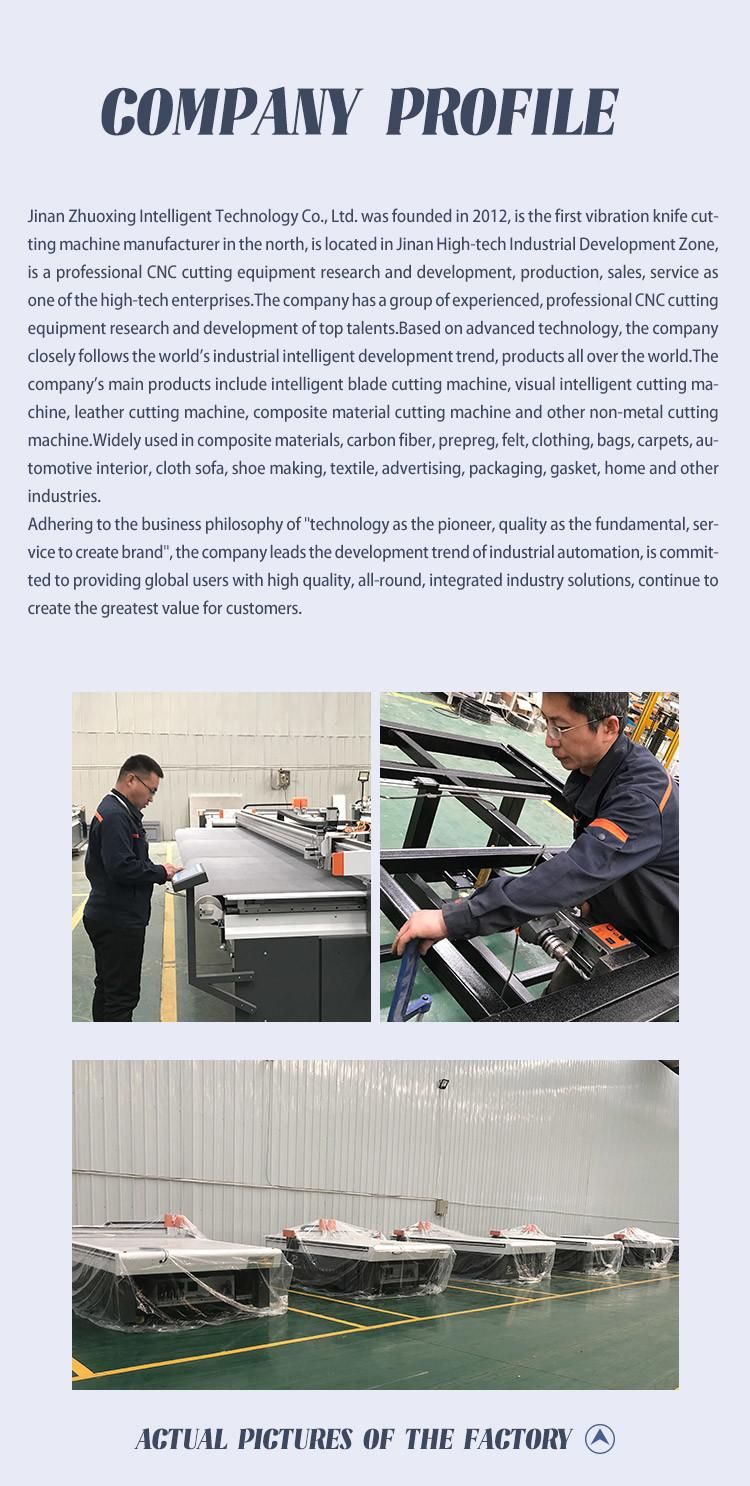

Company Details
Automotive 3D Car Foot Mat Blended Fabric Digital Cutting MachineAutomotive 3D Car Foot Mat Blended Fabric Digital Cutting Machine
Automotive 3D Car Foot Mat Blended Fabric Digital Cutting Machine



For more details of the machine , mail us freely !!

Jinan Zhuoxing Intelligent Technology CO.,LTD

Website : zhuoxing-cnc.en.made-in-china.com
