Portable 20W /30W Aluminum Engraving Machine
Jinan Dwin Technology Co., Ltd.- Application：Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
- Cooling System：Air Cooling
- Technical Class：Pulse Laser
- Applicable Material：Metal
- Structure Type：Gantry Type
- Laser Classification：Fluid Laser
Base Info
- Model NO.：DW 10W
- Laser Technology：Laser Flame Cutting
- Type：Portable Fiber Marking Machine
- Laser Power：20W,30W
- Graphic Format Supported：Ai, BMP, Dst, Dwg, Dxf, Plt
- Laser Module Life：100000 Hours
- Marking Depth：0.01mm-0.05mm(According The Material)
- Laser Wavelength：1064nm
- Software：Ezcard
- Warranty：24 Months
- Working Size：110X110X80mm
- Color：Made to Order
- Transport Package：Playwood Box
- Specification：110X110X80mm
- Trademark：DWIN
- Origin：Jinan City Shandong Province China
- HS Code：8456110090
- Production Capacity：50set,Month
Description
1
Average laser output power
20W/30W
2
Laser wavelength
1064nm
3
Power adjustment range
10-100%
4
Repetition frequency
20-100KHz
5
Output beam quality
M2:1.5
6
Marking Linear deep
≤1.2mm/Min.
7
Highlight spot
0.005mm
8
Min. character size high
0.15mm
9
Repetition accuracy
±0.001mm
10
Max. Linear markingspeed
9000mm/s
11
Marking depth
≤0.5mm (according to the materials)
12
Marking format
Graphics, character, bar code, two-dimensional code,etc.
13
Software
WINXP +ezcad
14
Standard marking area
110mm×110mm
15
Marking area option
50mm×50mm ,150mm×150mm , 200mm×200mm
16
Power consumed
≤160W
17
Electrical demand
220V±10%/50Hz/4A
18
Cooling Mode
Air-cooled
19
Control interface
USB
20
Laser module life
100000 hours
21
Laser
IPG
22
Resonance mirror
high speed Usage

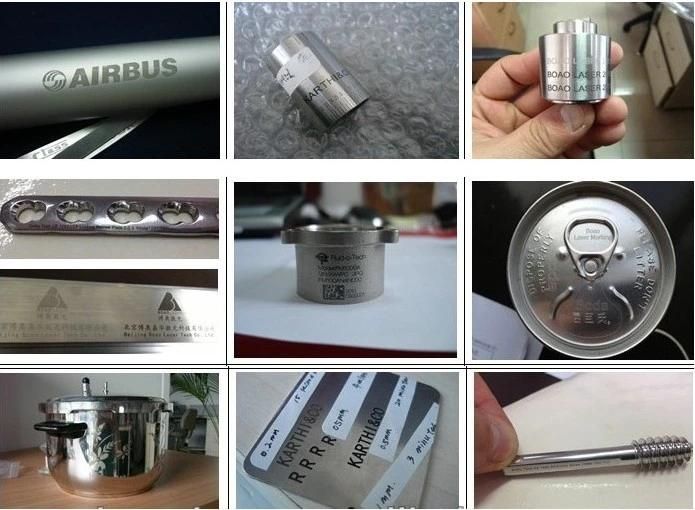

Samples :
Package :
Certificated :
Guarantee & After sales service:
1. 24 months quality guarantee for the main parts of the machine, excluding consuming parts, and the main parts shall be changed free of charge during the warranty time
2. Lifelong maintenance for the machine, and lifelong technical support from sophisticated English-speaking engineer team.
3. Free training course at our plant
4. We will provide the machine consuming parts with factory price when you need replacement.
5. 24 hours online service each day, free technical support.
Factory :
Mike sun
Jinan Dwin Technology Co., LTD
Add: 57 Bei Yuan Street, Li Cheng District, Jinan city, China
Tel: +86-0531-88601773 Mobile: +8618363061883Website : dwinlaser.en.made-in-china.com
