• Model NO.：HJZ-DB-01
• Laser Wavelength：Fiber Laser
• Laser Classification：Fiber Laser
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Terms：Technical Parameters
• Process Material：Metal and Some Non-Metal
• Certification：CE.FDA, SGS
• Package：Standard Crate for Export
• Working Power：220V,50Hz,1.5kVA
• Engraving Speed：9000mm,S
• Delivery Time：1-3 Days
• Marking Varieties：Characters, Graphs, Images, Trademarks
• Lifespan：Over 100, 000 Hours
• Cooling：Air Cooling
• Marking Size：110*110mm, 175*175mm, 220*220mm, 300*300mm
• Laser Output Power：10 W 20W 30W 50W 100W
• Operating Voltage：110-240V
• Graphic Format Supported：Ai, BMP, Dst, Dwg, Dxf, Dxp
• Transport Package：Standard Plywood Packing for Export
• Specification：800X300X600MM
• Trademark：HJZ laser
• Origin：Wuhan, China
• HS Code：84561000
• Production Capacity：500,Month

Technical parameter

Item  /  Model

HJZ-DB-01  20W/30W

(This set is only with 20/30W,Other model can be 50/60/70/100/120/150W)

Laser source

Domestic Raycus(Germany IPG/China CAS/MAX/JPT Mopa color marking for optional)

Laser power

20w/30w (50w,60w ,70w,100,120w is optional)

Laser type

Fiber laser

Graphic Format Supported

DXF,PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO,

Marking speed

≤8000mm/S

Max.Marking Depth

≤0.4mm

Laser Wavelength

1064nm

Marking lines

0.06-0.1mm

Minimum line width

0.06mm

Minimum character

0.15mm

Resolution ratio

0.01mm

Graphic format supported

BMP, PLT, DST, DXF, AI

Software supported

TAJIMA, CorelDraw, Photoshop, AutoCAD

Equipment Dimensions

755*390*360mm

(different model has different size,detailed can be confirmed with sellers)

Net/Gross Weight:

26/44kg(different configuration has small difference)

Unit Power

≤500W

Optional Spare Parts

 Rotary/Protection glasses/outside red light/night light and other optional customized parts and so on.

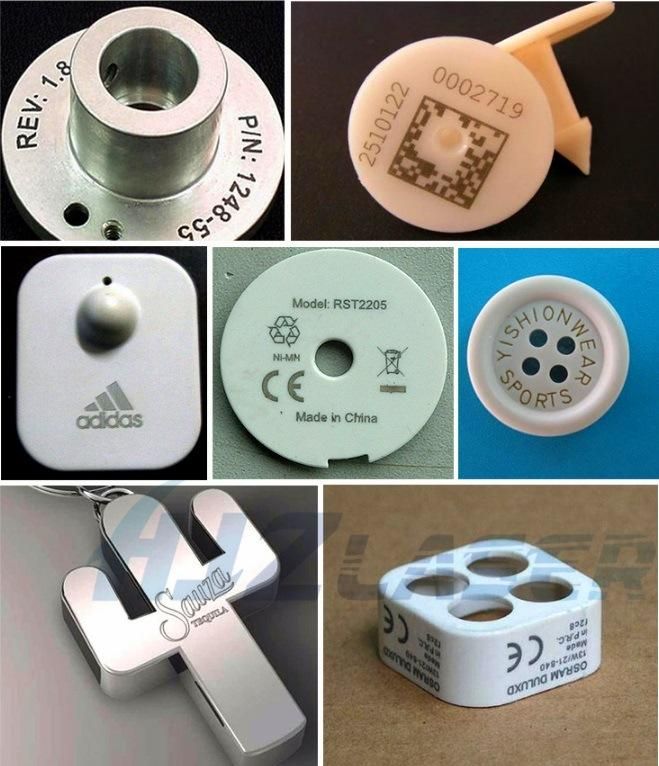

marking samles



Wooden packing for export

Pre-sale service:
1) According to customers demands, provide relevant technical guidance.
2) Assist customers to design and make laser engraving/cutting solutions considering technical feasibility.
3) Provide equipment demonstration for customers to investigate, make samples and do test, etc.

After-sale service:
1) 1 year warranty for laser metal marking machine;
2) Offer lifelong repair;
3) Engineers available to service machinery overseas.
4) Multi language service;
5) Offer 24 - hour technical support.

Training can be processed in the following ways:
1) Workers of customers can come to our factory in Wuhan, China to get the most professional hand-by-hand training.
2) We can send engineers to customers' country and do training for workers in customers' target factory. However, tickets and daily consumption like food and accommodation should be afforded by customers.
3) Remote training through Internet tools like Team-viewer, Skype and other instant communication software.

Guarantee:
We offer free Two-year warranty and durable maintenance&repair support for the purchased machines. Within the warranty time, we are responsible for the cost-free repair once the equipment fail or the machines break down(except human factor and force majeure causes) and we shall offer the replacement parts for free(except consumed parts). During the non-warranty time, we just charge the flat cost based on actual cost of repair.

Wuhan HJZ Laser Technology co., Ltd.
