• Model NO.：PEDK-130250M
• Structure Type：Flatbed
• Laser Classification：Glass Laser Tube
• Laser Technology：Laser Control Fault Cutting
• Transmission Method：Belt Transmission
• Working Table：Thicken Strip Working Table
• Laser Output Control：(0-100% Set by Software )
• Highest Scanning Precision：4000dpi
• Positioning Accuracy：±0.02mm,M
• Positioning Speed：20m,Min
• Control Software：Perfect Laser Professional Mixed Laser Cutting Mac
• Guarantee：12 Month Guarantee for Whole Machine 10 Month Gua
• Training：VCD Training Video for Easy Learning Engineer Ove
• Laser Power：160W,180W,220W,260W,300W
• Transport Package：Professional Export Wood Craftcase
• Specification：1300*2500mm
• Trademark：Perfect Laser
• Origin：China
• HS Code：8456110090
• Production Capacity：500 Sets Per Month

Basic Info.

Model NO. PEDK-130250M Structure Type Flatbed Laser Classification Glass Laser Tube Laser Technology Laser Control Fault Cutting Transmission Method Belt Transmission Working Table Thicken Strip Working Table Laser Output Control (0-100% Set by Software ) Highest Scanning Precision 4000dpi Positioning Accuracy ±0.02mm/M Positioning Speed 20m/Min Control Software Perfect Laser Professional Mixed Laser Cutting Mac Guarantee 12 Month Guarantee for Whole Machine 10 Month Gua Training VCD Training Video for Easy Learning Engineer Ove Laser Power 160W/180W/220W/260W/300W Transport Package Professional Export Wood Craftcase Specification 1300*2500mm Trademark Perfect Laser Origin China HS Code 8456110090 Production Capacity 500 Sets Per Month

Product Description

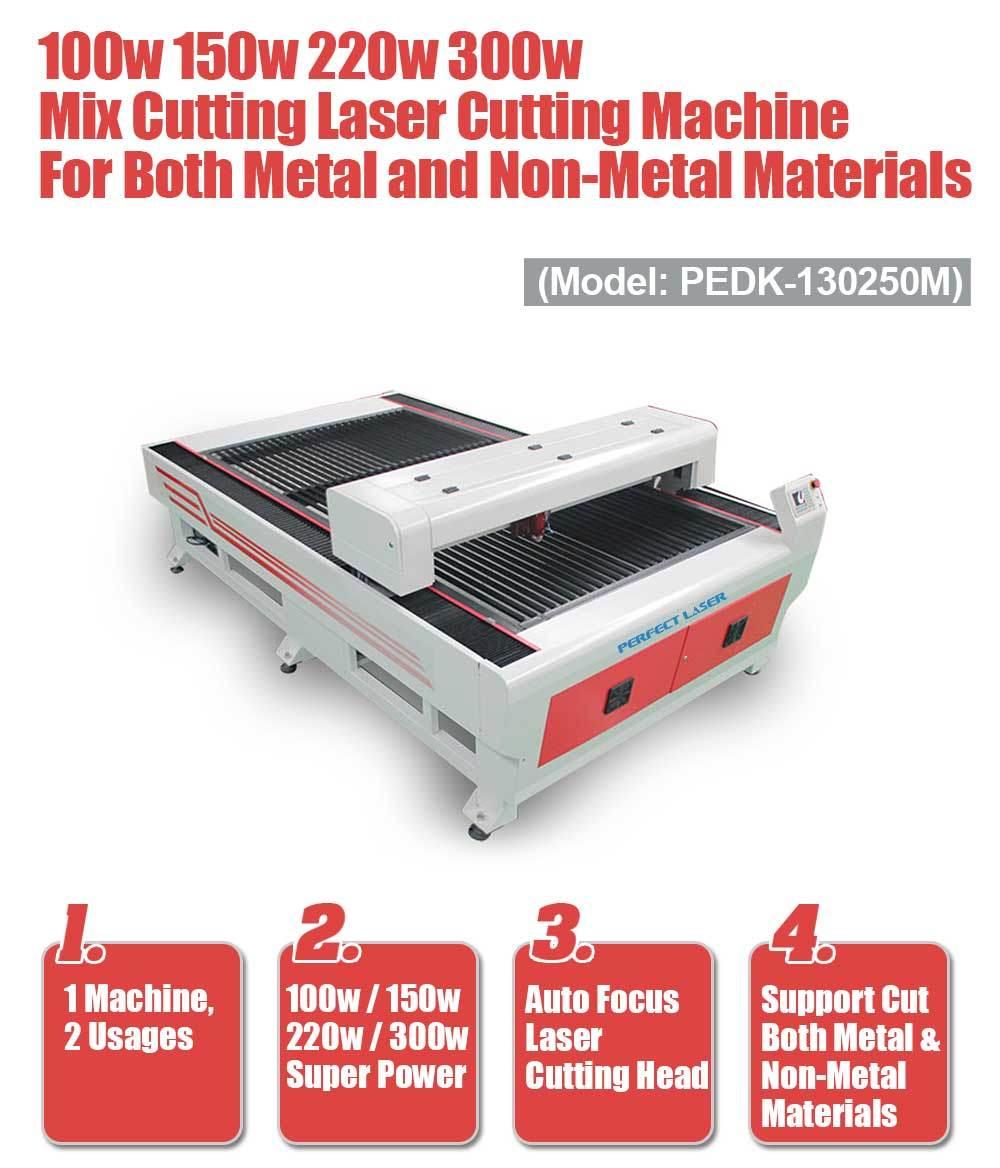

Stepper motor 300w Acrylic Sheet Metal Mixed CO2 Laser Cutter
Model:PEDK-130250M
Contact: Emily

Acrylic Sheet Metal Mixed Co2 Laser Cutting Machine is a new super technology, mainly used to cut both metal and non-metals machine. The cutting thickness of this industrial laser cutter can reach 1-2mm stainless steel, 1-3mm carbon steel, 20-30mm acrylic, 10-20mm wood, 20-25mm MDF.
The steel sheet cutter is a so wonderful choice for the user who has demanded to cut 1-2mm thin metal material and thick non-metal materials by own this industrial laser cutter. One machine can fulfill all your demand. Saving much cost. It also can be called industrial laser cutter, MDF laser cut, acrylic cutter, steel sheet cutter,metal plate cutter.



>>>Applied materials:

Metal	Stainless steel, Carbon Steel, Mild Steel
Advertisement material	Acrylic engraving and cutting, plastic engraving and cutting, PVC board engraving and cutting, rubber plate engraving, seal engraving, organic glass engraving, Plexiglas engraving, marble engraving, granite engraving, Gum engraving, EVA materials engraving, paper engraving, and cutting.
Wood material:	Wood engraving and cutting, MDF engraving, plywood cutting, bamboo engraving.
Garment material:	Leather engraving and cutting, textile engraving, fabric engraving, cloth engraving, Shoe engraving, jeans engraving, carpet engraving, and cutting, toy cutting, woolen cutting, denim engraving, and cutting.

>>> Advantages:
1)  Mixed Cutting: It supports both Metal and Non-Metal Cutting for stainless steel, carbon steel, mild steel, and acrylic, wood, MDF engraving, and cutting.
2) Adopt 160w - 300w Laser Tube, high power, 10000 hours long life span.
3) Adopt Japan Imported Servo Motor and Ball Screw Transmission Rod, with fast speed and high precision.
4) Dynamic Auto-Focusing Laser Cutting Head: When the metal sheet is not plain, the dynamic focus laser cutting head can adjust the focusing distance automatically.
5) Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer but also connect to U disk, USB communication.
6) LCD Control System owns 128M Big Memory, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.
7)  Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
8)  Professional Strip work table, which meet the needs of diversified laser procession;
9)  Water Cooling System with Alarm Protection, adopt CW-6000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
10)  Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, makes high efficiency and steady.
11)  High-speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1×1mm little English character perfect.
12) Red Light Pointer realizes the exact position without laser.
13) Matched Professional software is particularly designed and written for engraving and cutting, with high compatibility, supports any computer
operating system.
>>>Machine Details:



>>>Technical Data:

Model	PEDK-130250M
Working Area	1300*2500mm
Laser Power	150W, 180W. 260w, 300w Life Span: >10000 hours
Cutting Materials:	Metal & Non-Metals
Cutting Speed	1-10000mm/min
Engraving Speed	1-60000mm/min
Laser Type	Hermetic and Detached Co2 Laser Tube
Repeat Location Accuracy	± 0.0125mm
Laser Power Controlling	1-100% Manual Adjustment & Software Controlling
Voltage	220V(±10%) 50Hz
Cooling Mode	Water Cooling and Protect System
Cutting Platform	Professional Thickening Strip Work Table
Controlling Mode	CNC Professional Control System
Support Graphics Formats	BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF Compatible HPG Order To Support DXF, WMF, BMP, DXT
Power Controlling Mode	Perfect Laser Professional Laser Energy Combining Movement Control System
Control Software	Original Perfect Laser Engraving & Cutting Software
Training:	Video Training
Guarantee Period:	24 Months

>>> Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact -China Perfect Laser!
1. The exact material you want to cut? (Stainless steel, carbon steel, mild steel, acrylic, wood etc.)
2. The cutting depth on above materials?
3. The working area you demand? (max dimension of material, width*length,  1300(900mm, 1600*1000mm, 1300*2500mm...)
Need more information please feel free to contact us-Perfect Laser!---Right Now!

Company information:
Perfect laser Co. Ltd. (China) was founded in 1995, located in the core area of "China Optic Valley" - Wuhan city. Occupied with 3000 m2 ground, including R&D building and production area. It has more than 180 employees, most of them are with bachelor degree or even doctorate degree. Executed by reliable quality and reasonable price, our products get favorable sales success and outstanding reputation not domestically in China but also popular in more than 180 countries such as the USA, Italy, Korea, Singapore, Poland, Turkey, Sweden, Saudi Arabia to worldwide.



Our products:
We produce 12 series product range and 200 different models, attached please kindly find the machine styles and the related price. Also, welcome to visit our website perfectlaserco.en.made-in-china.com to get an overall idea about our products and quality.

Our Certificates:
All the products are approved by CE and ISO 9001:2000 certificate, so every aspect of our machine is perfect and qualified to export to European countries.

Our Advantage:
Perfect Laser is a professional manufacturer for industrial laser machinery, we have a full range of industrial laser machinery, so our agent can just cooperate with us only.
Perfect Laser offer 12 hours quick response.
Perfect Laser machine's key component is all supplied by the global well-known brand, such as institute.
Perfect Laser has mass production, stock keeping immediate delivery.
