• Model NO.：CM1325
• Structure Type：Split Structure
• Laser Classification：Free Electron Laser
• Laser Technology：Laser Vapor Cutting
• Working Size：1300mm*2500mm
• Laser Power：130W
• Adjust Table：Electric
• Working Table：Blade Platform
• Driver：Stepper Motor
• Engraving Speed：0-1000mm,S
• Max Speed：1000mm,S
• Color：Blue,White
• CNC or Not：Yes
• Graphic Format：Ai, BMP, Dxf, Dxp, Plt
• Controller System：Ruida
• Control System：DSP
• Red-DOT：Yes
• PC Interface：USB2.0 and USB Disk
• Voltage：110V~240V,50Hz~60Hz
• Transport Package：3300mm*2000mm*1240mm
• Specification：10 Cu. m
• Trademark：REDSAIL
• Origin：China
• HS Code：8456110090
• Production Capacity：200

Basic Info.

Model NO. CM1325 Structure Type Split Structure Laser Classification Free Electron Laser Laser Technology Laser Vapor Cutting Working Size 1300mm*2500mm Laser Power 130W Adjust Table Electric Working Table Blade Platform Driver Stepper Motor Engraving Speed 0-1000mm/S Max Speed 1000mm/S Color Blue/White CNC or Not Yes Graphic Format Ai, BMP, Dxf, Dxp, Plt Controller System Ruida Control System DSP Red-DOT Yes PC Interface USB2.0 and USB Disk Voltage 110V~240V/50Hz~60Hz Transport Package 3300mm*2000mm*1240mm Specification 10 Cu. m Trademark REDSAIL Origin China HS Code 8456110090 Production Capacity 200

Product Description

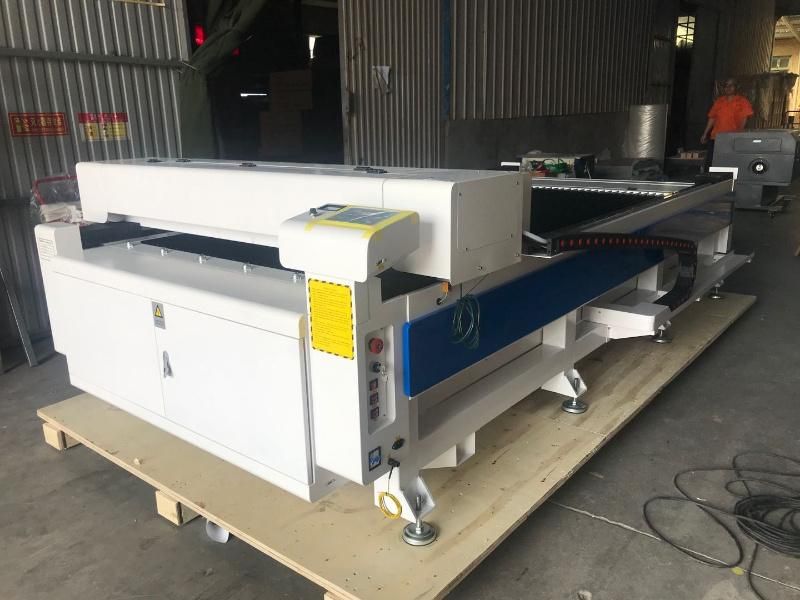

130W Co2 Laser engraving & cutting machine CM1325 (1300mmx2500mm)


Description

Model	CM1325
Working Area	1300mm*2500mm
Laser Power	130W
Laser Tube Type	CO2 glass sealed laser tube
Controller System	RUIDA
Graphic Format Supported	HPGL, BMP, GIF, JPG, JPEG, DXF, DST, PLT etc.
Cooling system	CW-3000 Water chiller
Blowing, flame retardant	Air pump(ACO-009E), Centrifugal fan
Working Platform	Blade platform
Adjust Table	NO
Red-dot Positioning	yes
Drive type	Stepper Motor
Max speed	1000mm/s
Resolution	1000DPI
Location precision	<0.01mm
PC interface	USB 2.0 and USB Disk
Voltage	110V~240V/50Hz~60Hz
Warranty	12months ( 10 months for laser tube, 3 months mirrors)

Standard Accessories

• Laser Engraving software Package (English Version)
• User Manual (CD)
• Industry water cooling system
• Air Pump
• Communication cable
• 3 Reflect optics (installed in the machine)
• 1 Focus optics (installed in the machine)
• 1 Laser tube scale
• Other tools

Optional

• CCD camera
• Laser tube(130W,150W,180W)

Features

• FDA, CE Certification,Quality Certification.
• Output from RD draw Directly, also Supports CorelDRAW and Auto CAD.
• Optimization of Mechanical and Electrical Design.
• More Friendly Control Panel with Color Screen.
• English, French and more languages updating.
• USB interface, U-Flash DISK Supported, Machine will read files from memory stick, you can work even without a PC.
• Air Assist, remove heat and gases from the cutting surface and make the engraving and cutting projects a breeze.
• Adopt advanced DSP digital control system, international standard laser power supply, integrated framework style. <0.01mm

SampleFAQ
Q: Do I need two laser machines to engrave and cut separately?
A: No, the laser machines we provide are capable of both engraving and cutting. One machine alone can fulfill the two purposes.
 Q: Do the laser machines need to be connected to a laptop or desktop computer to work?
A: Yes, either is ok. It supports Windows 10, Windows 2000, Windows XP, Win 7, and other operating systems
Q: What kind of graphic format does it support?
 A: JPG, PNG, BMP, PLT, DST, DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA, PCX, JP2, JPC, PGX, RAS, PNM, SKA, RAW , etc.
Q: How to distinguish laser tubes with different powers and applications?
 A: 1. Laser tube length (relatively speaking, the longer, the bigger)
2. Laser tube diameter (relatively speaking, the thicker, the bigger)
3. The bigger a laser tube power is, the deeper the machine can cut, but its light spot is bigger. So, it is better to use a machine with a low-power laser tube to engrave, such as 40W, 50W or 60W.
 Q: Is it better to increase blow to improve laser processing performance?
A: For some thick materials, it works. But, when carving some other materials, you need to blow less.
 Q: How long will it take to learn to operate a laser machine?
 A: If you are able to use some basic graphic design software, it will only take a few hours to master the operation. You just need to do some simple tests on different processing materials to know how to set the correct speed and laser power.
 Q: Is a laser machine in operation harmful to our bodies?
 A: It is not harmful as long as the laser is not exposed directly to skin and eyes.
