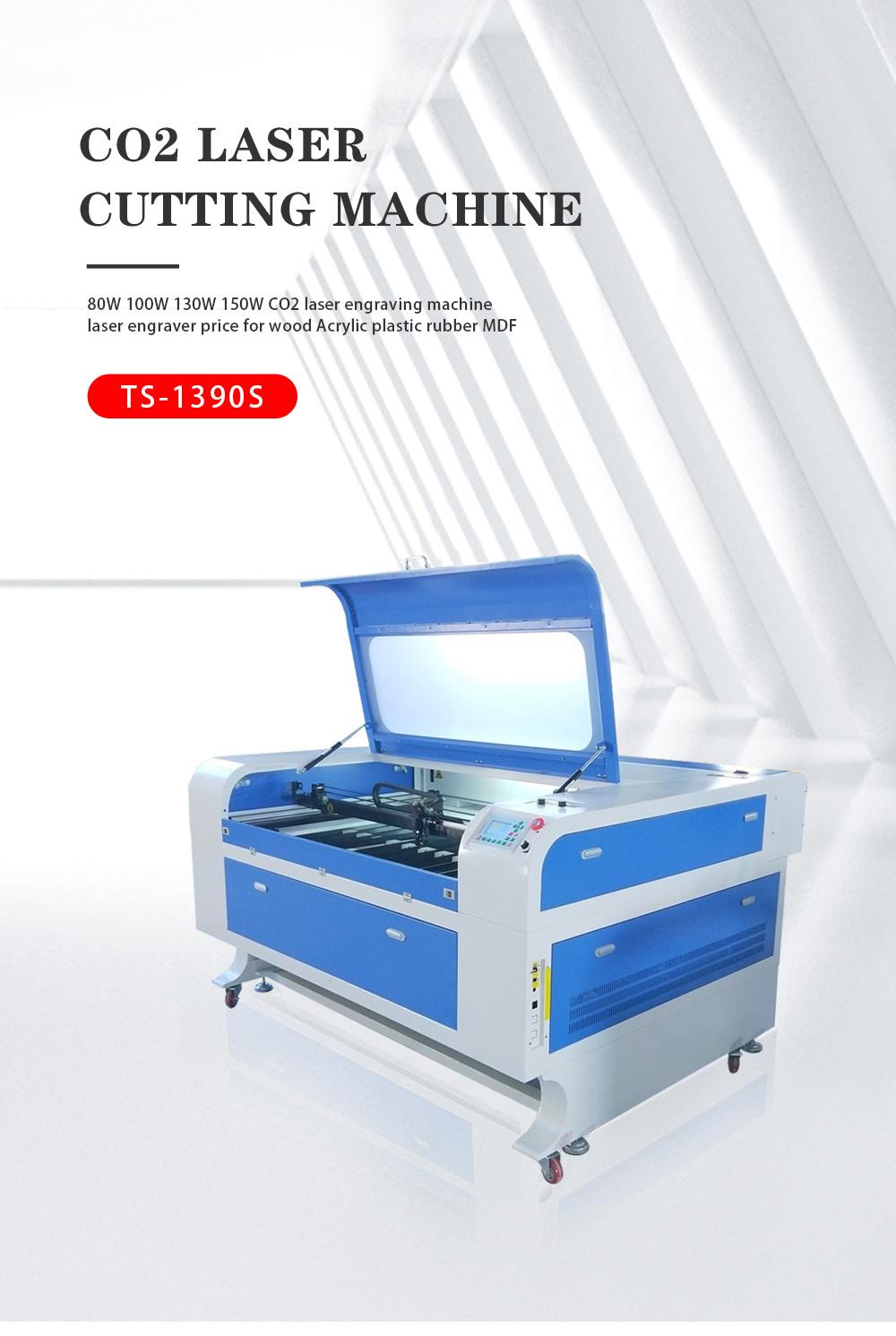

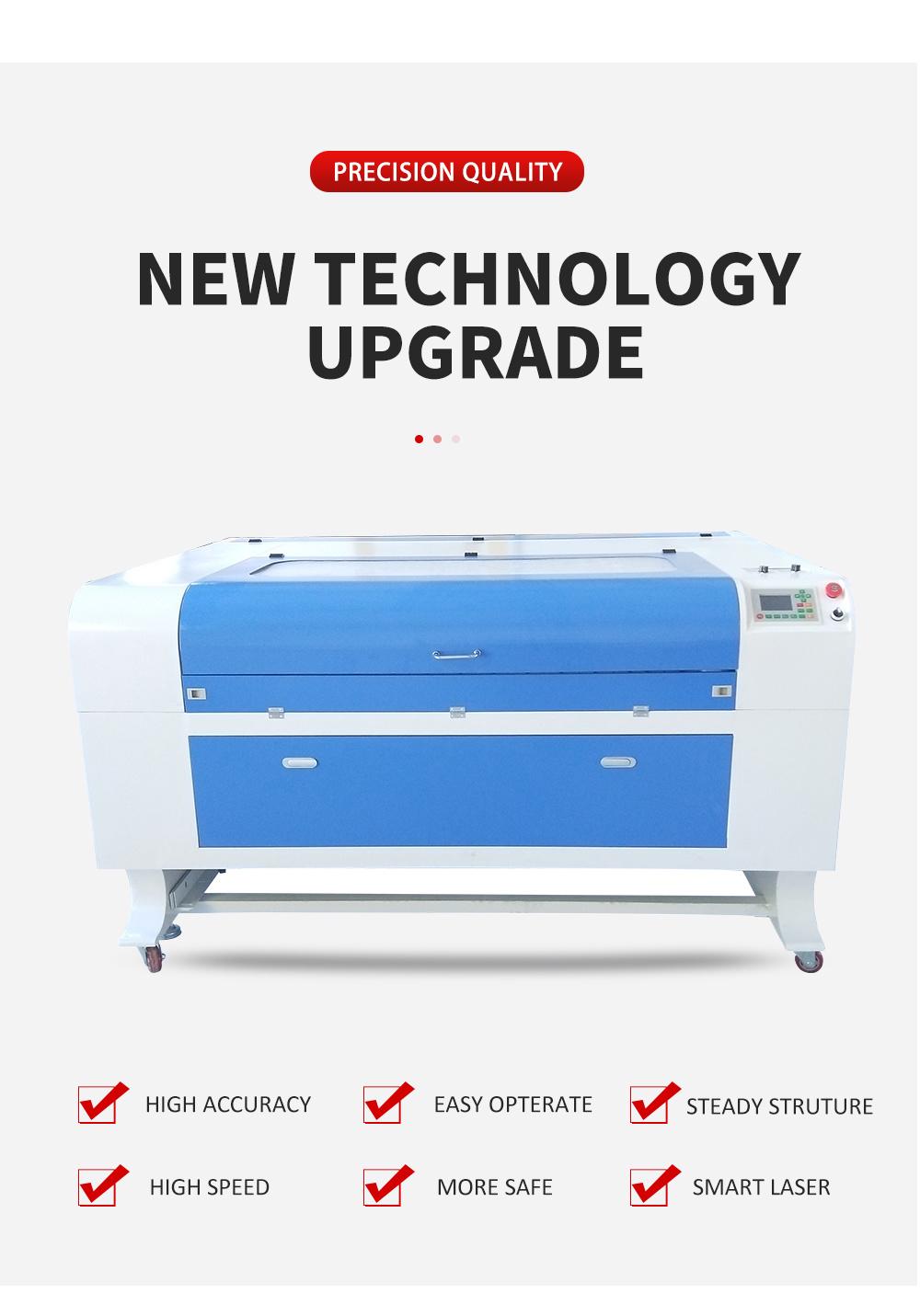

250W 300W 1390 1325 Mixed CO2 Metal Acrylic Stainless Steel Laser Cutting Machine for Metal Sheet and Nonmetal Wood MDF
Jinan Laser Max Machinery Tech Co., Ltd.- After-sales Service：Online Support
- Warranty：2years
- Application：Leather Industry, Domestic, Carpentry, Printing & Packaging, Construction Industry, Molds & Dies, Crafts Industr, Advertising Industry
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Automatic Grade：Automatic
Base Info
- Applicable Material：Nonmetal
- Type：Flat-Plate
- Laser Classification：Gaseous Laser
- Engraving Method：Vector Engraving
- Transport Package：Standard Plywood Case for Export, Moisture Proof

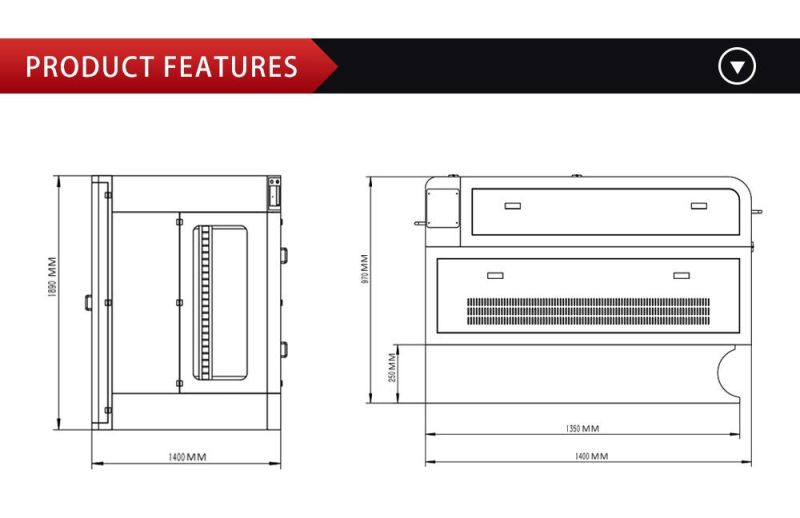

- Specification：209*160*164cm
- Trademark：Laser Max
- Origin：China
- Production Capacity：2400PCS,Year
Description
Basic Info.
Applicable Material Nonmetal Type Flat-Plate Laser Classification Gaseous Laser Engraving Method Vector Engraving Transport Package Standard Plywood Case for Export, Moisture Proof Specification 209*160*164cm Trademark Laser Max Origin China Production Capacity 2400PCS/YearProduct Description

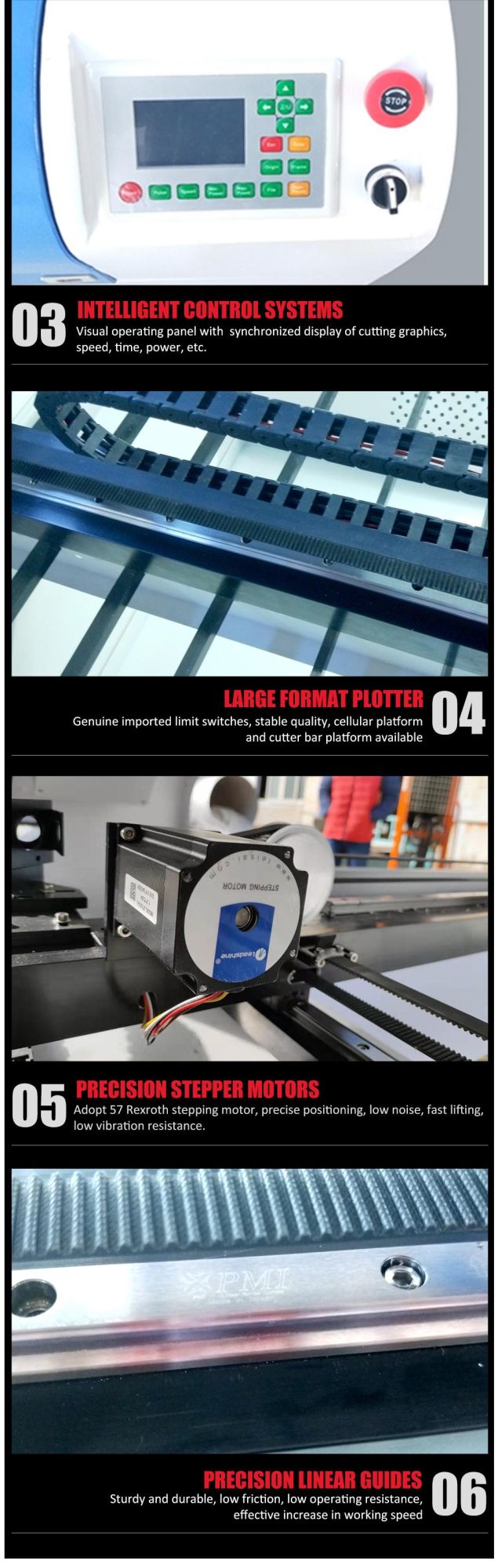

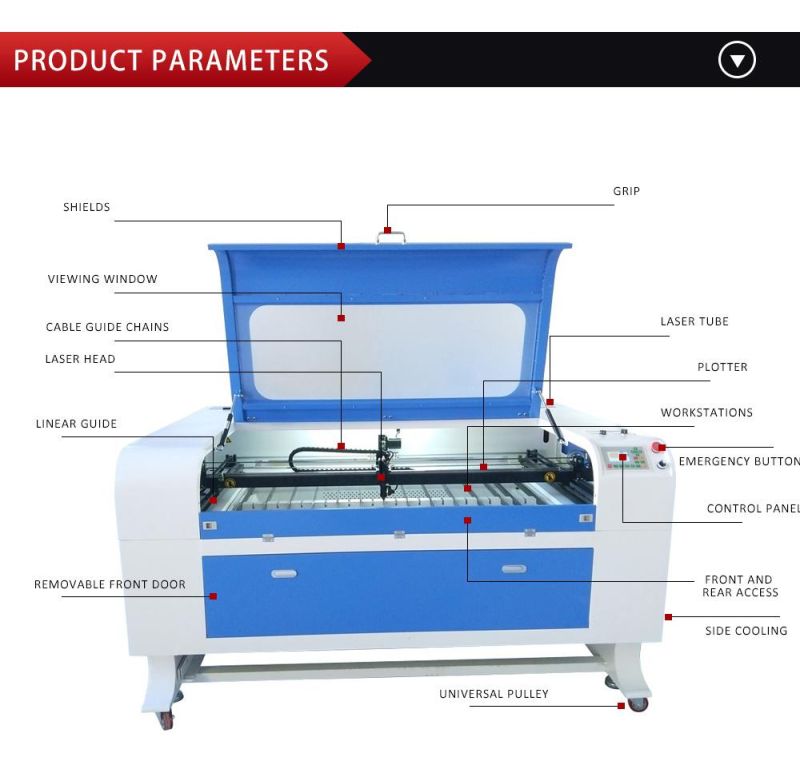

Main feature:
1.Heavy body more steady difficult deformation and protect rust.
2.Support U-download data,support off-line.
3.Front to rear design,support long materials pass.
4.Emergency stop.(turn off the machine immediately when there is an accident)
5.Aluminum srip shape platform can bear heavier materials.Such as acrylic,wood,mdf,etc nonmetal materials.Honeycomb platform suitable for leather,cloth,frabic,paper,etc light materials.
| Model | Laser Cutter LM1390 |
| Working Table Size | 1300mm *900mm |

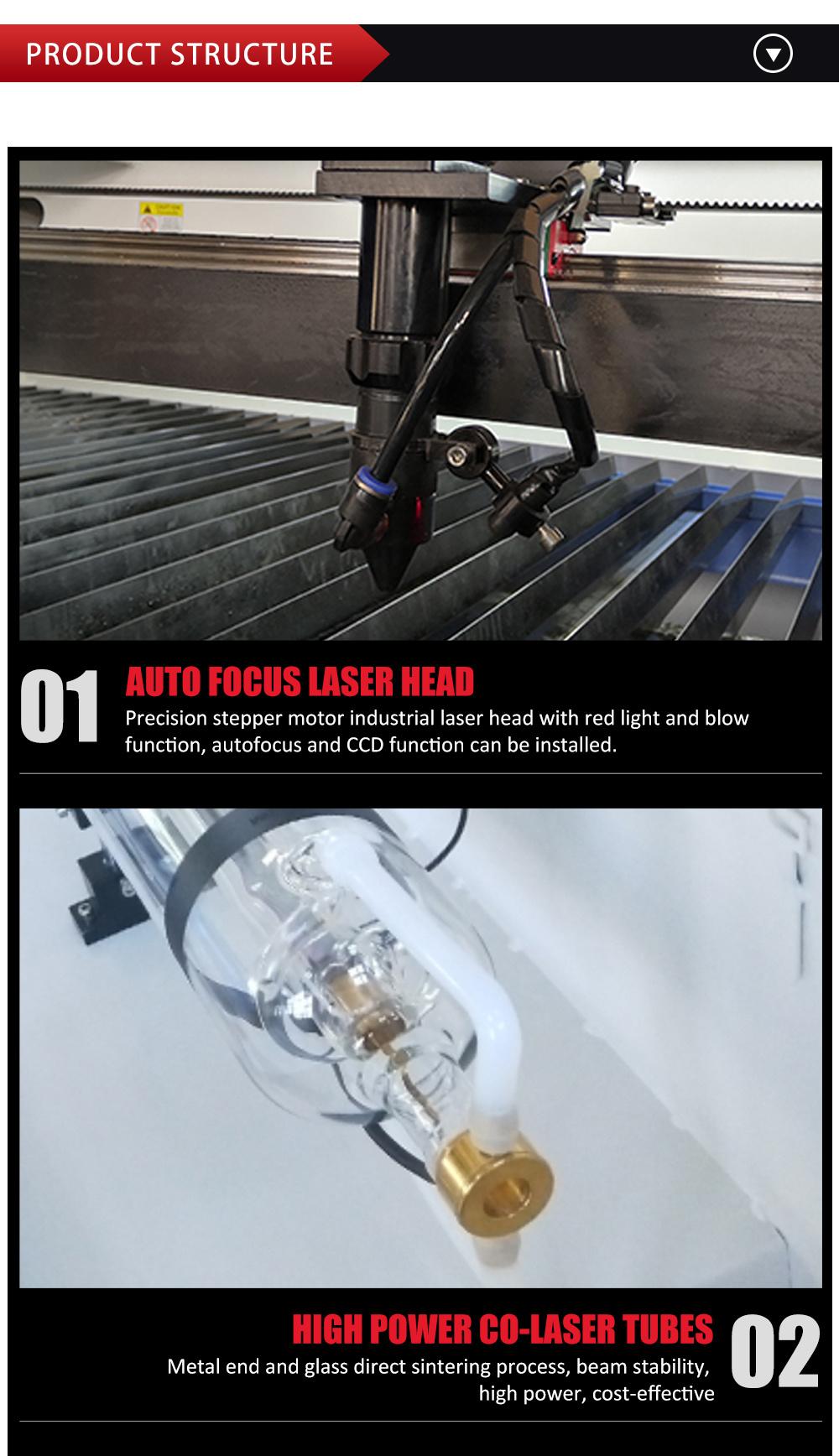

| Laser Tube brand | EFR or Reci can choose |
| Warranty of Laser tube | Global Warranty |
| Control System | Ruida 6442S (English/Russian/Spanish/France/ Portuguese) |
| Working Table | Honeycomb+Cutting blade table |
| Long material pass through front and back | Support |
| X axis | Linear Square linear guides |
| Y axis | Linear double square linear guides |
| Z axis adjust height | 180 mm |
| Cutting Speed | 0-100mm/s |
| Engraving Speed | 0-800mm/s |
| Resolution | ±0.05mm/1000DPI |
| Minimum Letter | English 1.5×1.5mm (Chinese Characters 2*2mm) |
| Support Files | BMP,HPGL,PLT,DST and AI |
| Interface | USB2.0 |
| Software | RD works |
| Computer system | Windows XP/win7/ win8/win10 |
| Motor | Lead shine Step Motor |
| Driver | Lead shine |
| Power Voltage | AC 110 or 220V±10%,50-60Hz |
| Power cable | European Type/China Type/America Type/UK Type |
| Working Environment | 0-45ºC(temperature) 5-95%(humidity) |
| Power consumption | <2000W (Total) |
| Position system | Red-light pointer |
| Cooling way | Water cooling and protection system |
| Gross Weight | 450KG |
| Package | Standard plywood case for export |
| Warranty | All life free tech support, one year warranty, except consumables |

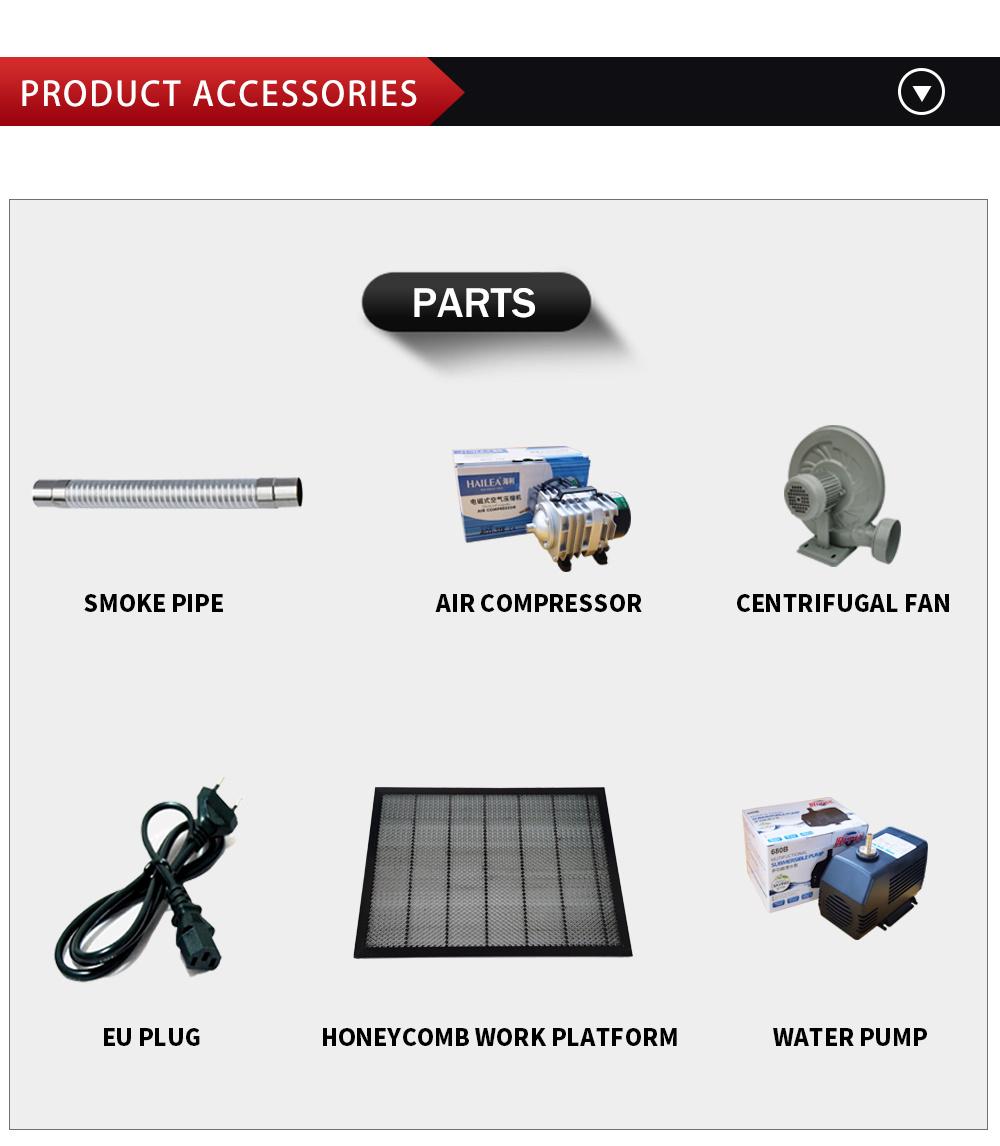

| Free accessories | Air Compressor/Water Pump/Air Pipe/Water Pipe/Software and Dongle/ English User Manual/USB Cable/Power Cable |

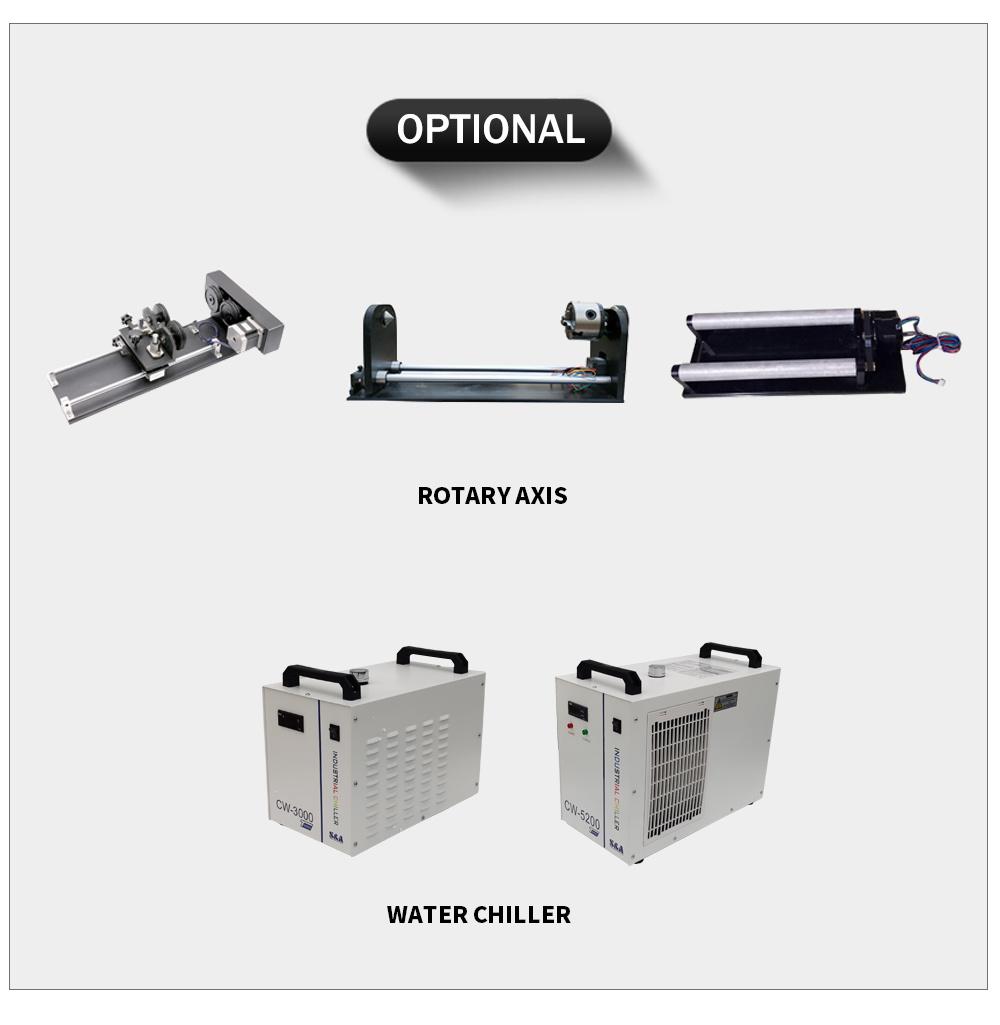

| Optional parts | Spare focus lens Spare reflecting mirror Spare rotary for cylinder materials Industrial Water Chiller |
Sample:
