• Model NO.：LF30
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Repeatability Accuracy：0.001mm
• Product Name：Portable Fiber Laser Marker for Auto Parts
• Transport Package：Wooden Case Packing
• Specification：30W
• Trademark：CYCJET
• Origin：Shanghai, China
• HS Code：8456110090
• Production Capacity：500sets Per Month

Basic Info.

Model NO. LF30 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Repeatability Accuracy 0.001mm Product Name Portable Fiber Laser Marker for Auto Parts Transport Package Wooden Case Packing Specification 30W Trademark CYCJET Origin Shanghai, China HS Code 8456110090 Production Capacity 500sets Per Month

Product Description

Main Features

Portable Fiber Laser Marker for Auto Parts

1.High speed with galvanometer.
2.Small volume, light weight.
3.Low power, consumption power is less than 500w.
4.Completely air cooling, low energy.
5.No influence of the severe environment and temperature change. If no power, battery and car cigarette lighter can be used for working.
6.Greatly reduce the depreciation cost, satisfying customers' stable large quantities producing.

Technical Parameter

Model	LF10/LF20/LF30/LF50
Laser Power	10W/20W/30W/50W
Laser Wavelength	1064nm
Q-frequency	20KHz~100KHz
Divergence	0.3mard
Marking Range	100*100mm/200*200mm/300*300mm
Minimum Line Width	0.02mm
Minimum Character	0.15mm
Marking Depth	0 ~0.5mm
Engraving Line Speed	≤10000mm/s
Repeatability Accuracy	±0.001mm
Beam Quality	M2:1.2~1.8
Marking Format	Graphics, Text, Bar Codes, Two-dimensional Code, Automatically Marking the Date,Batch number, Serial number, Frequency, etc.
Graphic Format Supported	bmp, jpg, gif, tga, png, tif, ai, dxf, dst, plt, etc.
Working Voltage	100V-240V 50-60Hz/4A
Unit Power	<500W
Use of the Environment	Clean and Dust Free or Dust less
Working Condition: Humidity	5%-75%, Free of Condensed Water
Laser Module Life	>100000 hours
Control System	Windows (10inch touch screen)

Range of Application

CYCJET Fiber laser marking machine is widely used to mark on various plastic buttons and electric devices, to mark code on CMOS chip, color paper and food package. It can also be used in the scope with high requirements, such as clock, jewelry, module, bitmap marking etc.

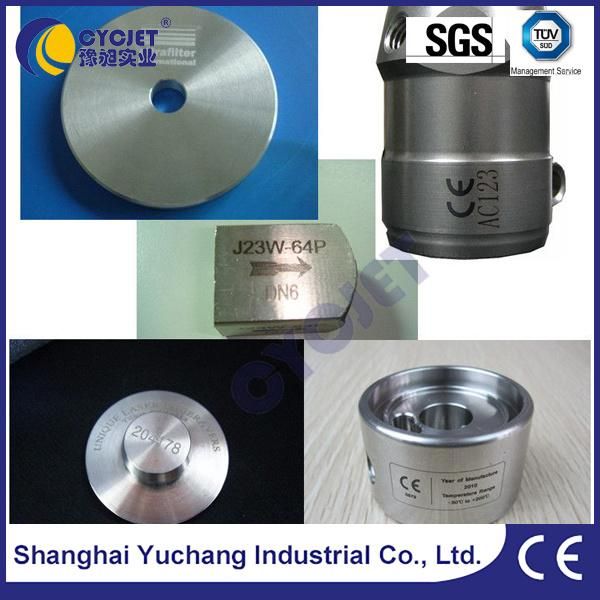

Samples Show


 Company Profile
CYCJET Shanghai Yuchang Industrial Co., Ltd.-professional for handheld inkjet printer and portable marking solution, located at the center of Changjiang River Delta and Eastern Sea Bright Pearl - Shanghai City. As a high-tech enterprise, our company specialize in the R&D, manufacture and sales of ink jet printer systems, handheld inkjet printer, handheld laser marking machine, portable marking solution, and so on.
